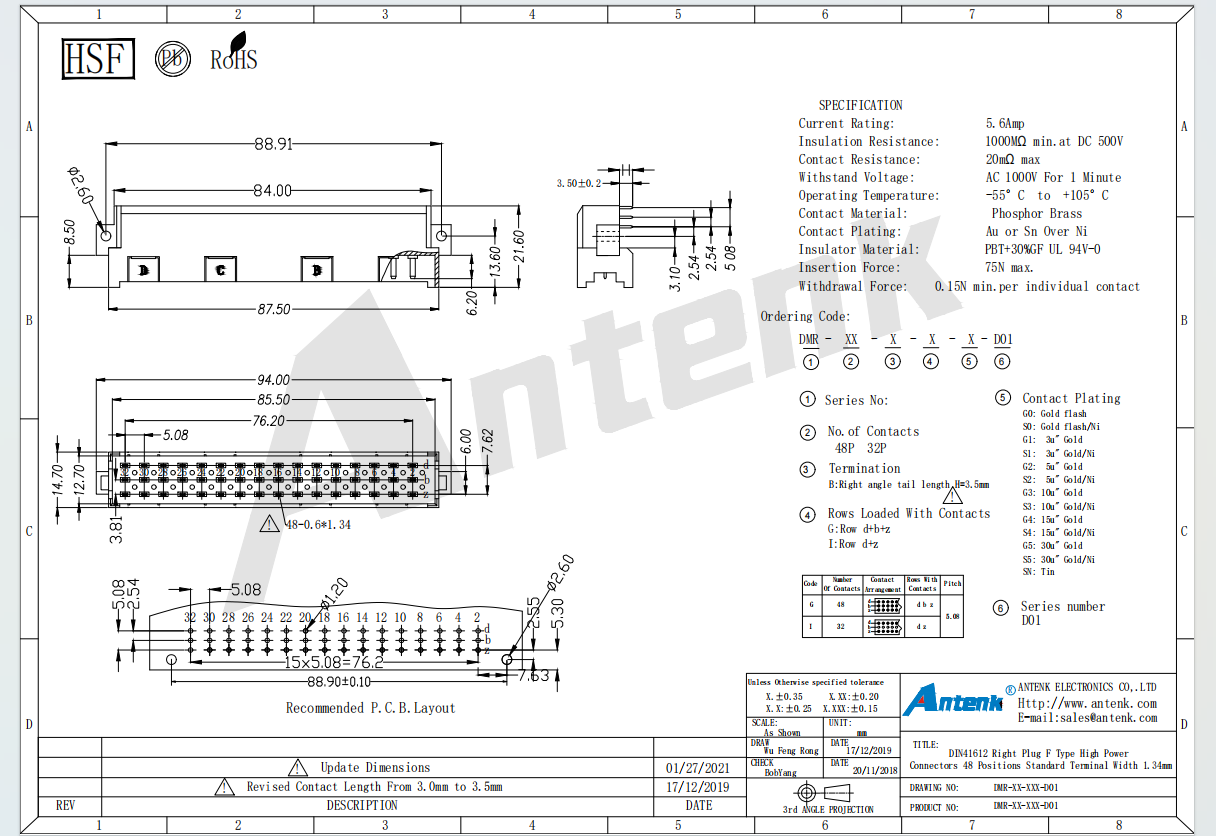

Manufactured by Huizhou Antenk Electronics Co., Ltd, the DMR series DIN41612 F-type right angle high power connector serves as standard eurocard interconnection components for industrial rack-mounted equipment, supporting 32 and 48 positions with 1.34mm standard terminal width. Contacts are made of phosphor brass with multiple plating options including gold flash, selective gold plating and tin over nickel plating, while the insulator is PBT filled with 30 percent glass fiber complying with UL94V 0 flame retardant standard. It features a 5.6A current rating, 1000MΩ minimum insulation resistance and maximum 20mΩ contact resistance, enduring 1000V AC voltage per minute and performing reliably from minus 55 degrees Celsius to 105 degrees Celsius. The structure delivers maximum 75N insertion force and minimum 0.15N withdrawal force per single contact to guarantee stable locking. Our full production workflow includes independent precision mold development, high-speed terminal stamping, glass-filled plastic injection molding, anti-corrosion electroplating, automatic assembly and comprehensive electrical aging testing in professional labs. Taiwan high-speed punchers and Japanese injection machines strictly control all PCB layout dimensions within tight tolerances to match standard industrial backplane design.
This right angle euro plug connector adopts through-hole wave soldering installation. Operators solder the tail pins onto backplane PCB following the official recommended layout, then plug the male connector into matching DIN41612 female receptacles to complete high-power signal and power transmission. It is widely applied in industrial control racks, communication switching equipment, test measuring instruments, power supply cabinets, railway control modules and automation machine control units. During use, users shall not exceed the rated current and voltage to avoid contact overheating, prevent violent plugging to protect terminal elastic structure, and store unused connectors in dry environments to avoid brass oxidation. All products comply with EU RoHS and REACH environmental rules, most specifications carry UL certification numbered E472792, and our factory has obtained ISO9001, ISO14001 and IATF16949 quality system certifications to secure long-term industrial stable operation.
Compared with other connector suppliers, Antenk owns more than 250 self-developed plastic molds and 180 precision hardware terminal molds, supporting flexible customization of position count, plating type and pin tail length for this DIN41612 series. Our 10000 square meter production base with 250 skilled staff is equipped with over 180 automatic assembly machines and 20 sets of professional testing equipment, ensuring consistent batch quality and fast large-volume delivery. As a Guangdong Famous Trademark certified enterprise, more than 70 percent of our industrial connectors are exported worldwide. Our multi-stage incoming, in-process and finished product inspection system brings outstanding wide-temperature resistance and stable mating performance, effectively reducing industrial equipment circuit failure risks and establishing long-term trusted cooperation with clients across Europe, America, Southeast Asia and other international regions.
