Right Angle Female Type Q Connectors-Inversed 64 Positions

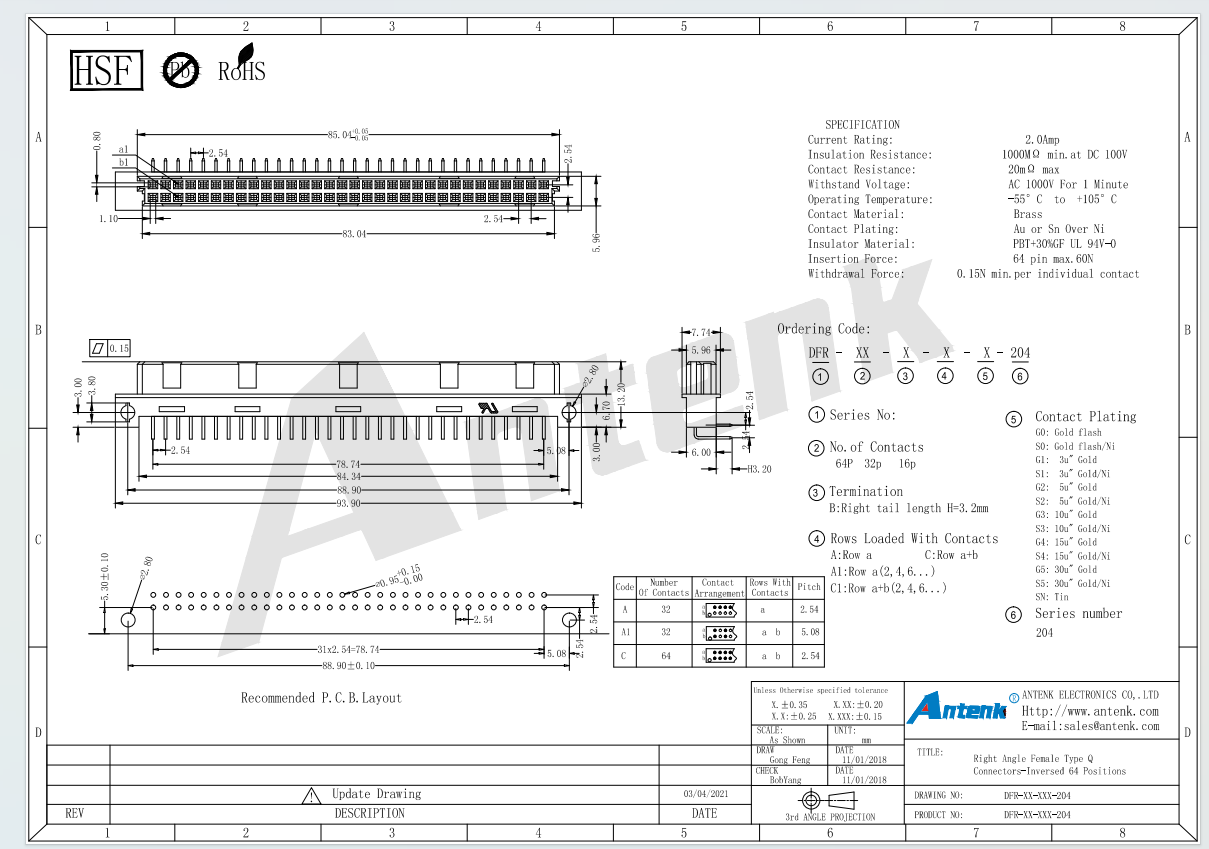

Manufactured by Huizhou Antenk Electronics Co., Ltd, the DFR series right angle inverted female connector is a reliable 2.54mm pitch interconnection component for PCB signal and low-power transmission, available in 16, 32 and 64 positions with single or dual row contact layout. According to drawing specifications, the insulator is 30% glass-filled PBT that meets UL94V-0 flame retardant grade, while brass contacts support diverse plating options including gold flash, graded thickness gold plating and tin over nickel plating. It features 2.0A current rating, minimum 1000MΩ insulation resistance and maximum 20mΩ contact resistance, passing 1000V AC one-minute withstand voltage test and operating steadily between -55°C and +105°C. This right angle reversed design has fixed tail length of 3.2mm, controlled insertion and withdrawal force to maintain stable mating without loose contact under long-term vibration. Our complete production workflow covers independent precision mold development, high-speed brass terminal stamping, high-temperature resistant PBT injection molding, anti-oxidation electroplating, automatic assembly and full electrical reliability testing. Imported Taiwan high-speed punching machines and Japanese injection molding equipment keep all PCB mounting dimensions within strict tolerances to fit standard wave soldering production.



This inverted right angle female header adopts through-hole DIP wave soldering installation. Operators fix the right angle tails onto printed circuit boards following the official PCB layout drawing, then mate the socket with matched straight male pin headers to finish complete circuit connection. It is widely applied in industrial control equipment, communication signal modules, digital household appliances, automotive auxiliary electronics, portable precision testers, memory backup circuits and thin-type consumer smart devices. During soldering and application, users must avoid excessive heating temperature to prevent glass-filled plastic deformation, work within rated electrical limits to avoid contact burnout, and store unused connectors in dry sealed environment to protect brass contacts from oxidation. All products comply with EU RoHS and REACH environmental regulations, most specifications obtain UL certification numbered E472792, and our factory holds ISO9001, ISO14001 and IATF16949 quality certifications with multiple packaging choices for mass production.



Compared with other connector suppliers, Antenk owns more than 250 sets of self-developed plastic molds and 180 sets of precision brass stamping molds, supporting flexible customization of pin number, contact rows and plating types for this inverted female connector series. Our 10000-square-meter production base with 250 professional staff is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring consistent product quality and fast bulk order delivery. As a holder of Guangdong Famous Trademark qualification, more than 70 percent of our connectors are exported to global markets. Our multi-stage incoming, in-process and finished product inspection system delivers outstanding high-temperature resistance and stable retention force, effectively reducing intermittent circuit failure risks and building long-term trusted cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions.
