MX3.0mm SMT 90° With soldering lug Wafer Connector Series

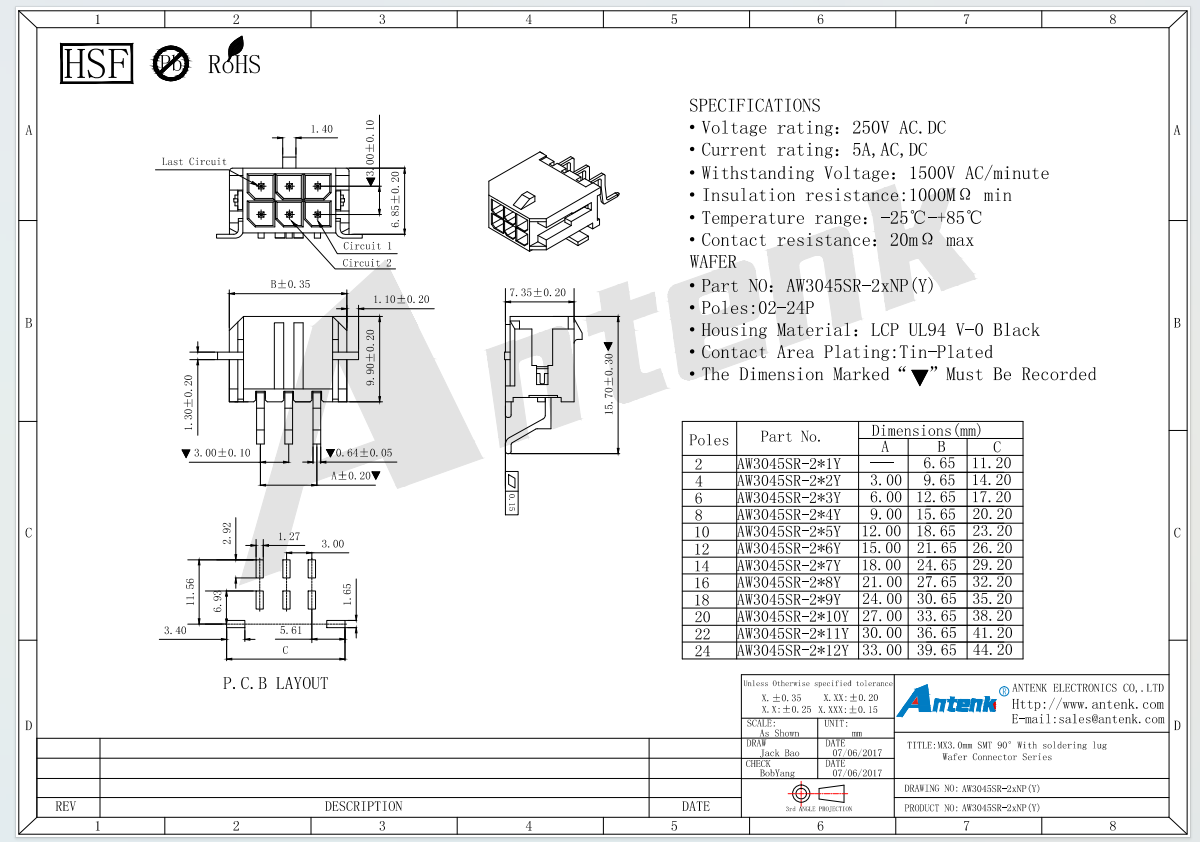

Manufactured by Huizhou Antenk Electronics Co., Ltd, the AW3045SR series MX3.0mm 90-degree SMT wafer connector with soldering lug is designed to deliver stable 5A power and signal interconnection for compact PCB electronic equipment. According to official drawing specifications, this right angle SMT wafer covers pin configurations from 02 pins to 24 pins. Its housing adopts black high-performance LCP material that complies with UL94V-0 flame retardant standard, and contact surfaces are finished with full tin plating to resist oxidation and maintain stable conductivity. Electrical parameters include 250V AC DC voltage rating, maximum contact resistance of 20 milliohms, minimum insulation resistance of 1000MΩ and 1500V AC one-minute dielectric withstand voltage, working reliably within temperature range of -25°C to +85°C. The built-in soldering lug reinforces PCB bonding strength to prevent component falling off under vibration. Our standardized full production process includes independent precision mold development, high-speed brass terminal stamping, high-temperature LCP injection molding, anti-rust tin electroplating, automatic assembly and complete electrical reliability testing in professional laboratories. Equipped with Taiwan high-speed punching machines and Japanese precision injection molding equipment, all PCB layout dimensions are strictly controlled within tiny tolerances to match automated SMD reflow production.



This SMT right angle wafer connector supports tape reel packaging for high-volume automatic assembly. Operators align the soldering lugs and contact pins with reserved pads on printed circuit boards following the official PCB layout diagram and complete reflow soldering, then mate the wafer with matching male terminals to form stable power and signal circuits. It is widely applied in industrial miniature control modules, portable smart devices, digital household appliances, automotive small electronic accessories, communication power adapters and precision testing instruments. During installation, users must control reflow temperature reasonably to avoid LCP plastic deformation, strictly follow rated electrical limits to prevent contact overheating, and store unused connectors in dry sealed packaging to protect tin-plated brass contacts from oxidation. All products comply with EU RoHS and REACH environmental regulations, most specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 quality management certifications.



Compared with other connector manufacturers, Antenk owns more than 250 sets of self-developed plastic molds and 180 sets of precision brass stamping molds, supporting flexible customization of pin counts for this soldering lug SMT wafer series. Our 10000-square-meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring consistent product quality and fast delivery for large batch orders. As a Guangdong Famous Trademark certified enterprise, more than 70 percent of our wafer connectors are exported to global markets. Our multi-stage incoming, in-process and finished product inspection system provides outstanding heat resistance and anti-drop performance brought by soldering lugs, effectively solving loose mounting and circuit disconnection issues and establishing long-term trusted cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions.
