Coin Cel Holders FOR CR2032 SMT With out Boss

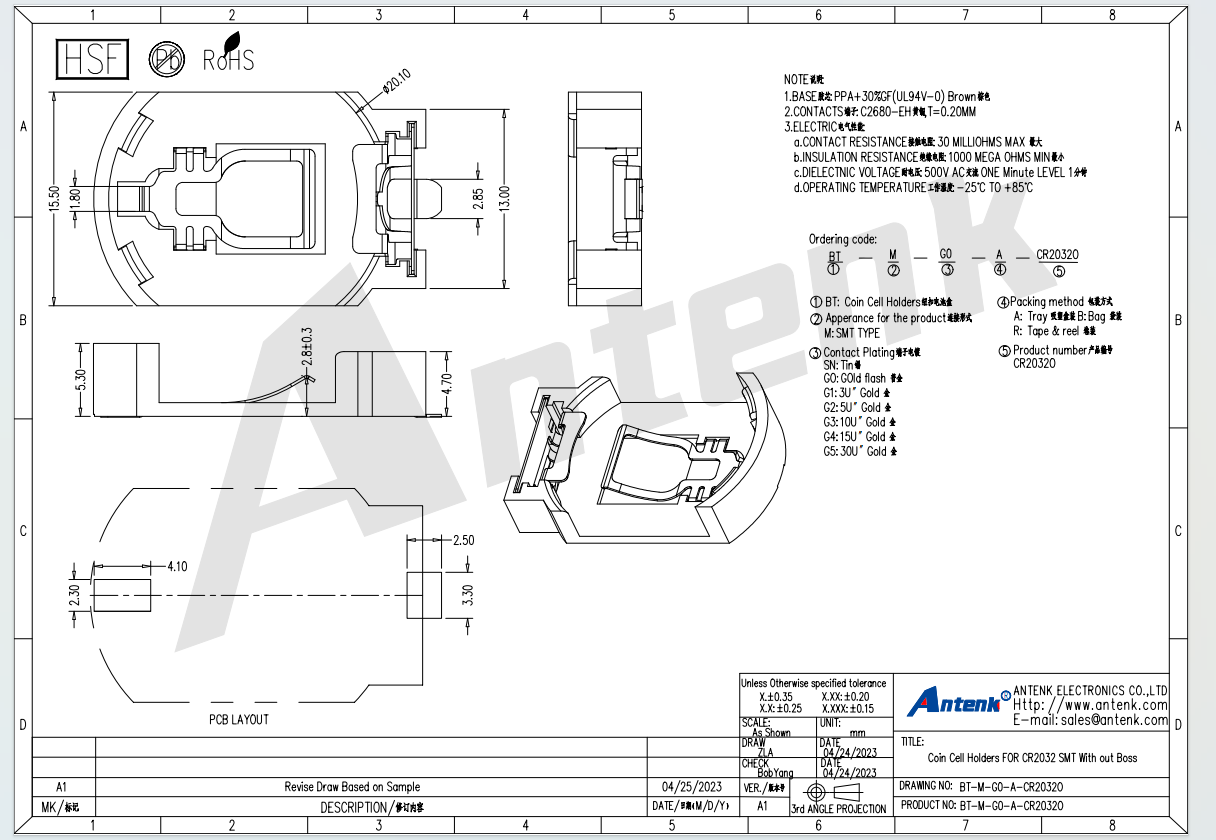

Manufactured by Huizhou Antenk Electronics Co., Ltd, this bossless SMT CR2032 coin cell holder is dedicated to stably fixing CR2032 3V button batteries and supplying continuous backup power for miniature PCB circuits. According to drawing specifications, the base housing adopts brown PPA plus 30 percent glass fiber material that meets UL94V-0 flame retardant standard, while internal elastic contacts are made of C2680 brass with 0.20mm thickness, supporting tin plating, gold flash and multi-thickness gold plating surface treatment options. Its electrical performance includes maximum 30 milliohms contact resistance, minimum 1000 megaohms insulation resistance and 500V AC one-second dielectric withstand voltage, operating steadily within the temperature range of minus 25 degrees Celsius to 85 degrees Celsius. This special boss-free structural design reduces PCB space occupation and simplifies compact equipment layout, with standardized PCB layout dimensions controlled under tiny unified tolerances to match automated SMD reflow soldering. Our complete production process covers independent precision mold development, high-speed brass terminal stamping, high-temperature resistant PPA injection molding, anti-oxidation electroplating, automatic assembly and comprehensive electrical reliability testing. Equipped with Taiwan high-speed punching machines and Japanese precision injection molding equipment, every dimensional parameter is precisely controlled to fit global mainstream circuit board design standards.



This bossless SMT coin cell holder provides three packaging solutions including tray, bag and tape reel to satisfy manual assembly and fully automatic high-volume SMT production lines. Operators align the SMT pins with reserved pads on printed circuit boards following the official PCB layout drawing and complete reflow soldering, then place standard CR2032 coin batteries into the plastic cavity to finish stable power connection. It is widely applied in industrial control memory backup modules, portable medical testing devices, smart remote controllers, digital cameras, wearable consumer electronics, precision measuring instruments and automotive small auxiliary electronic modules. During installation and application, users must strictly regulate reflow heating temperature to avoid glass-filled PPA base deformation, install batteries with correct positive and negative orientation to prevent short circuit failure, and store unused holders in dry sealed environments to protect brass contacts from oxidation and corrosion. All products comply with EU RoHS and REACH environmental regulations, most specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management certifications.



Compared with other connector manufacturers, Antenk owns more than 250 sets of self-developed plastic molds and 180 sets of precision brass stamping molds, supporting flexible customization of contact plating types and packaging modes for this bossless CR2032 battery holder series. Our 10000-square-meter manufacturing base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional laboratory testing instruments, ensuring consistent batch product quality and fast delivery for large bulk orders. As an enterprise holding Guangdong Famous Trademark qualification, more than 70 percent of our coin cell holders are exported to markets all over the world. Our multi-stage incoming material, in-process and finished product inspection system brings excellent heat resistance and long-term stable elastic clamping performance, effectively avoiding intermittent power loss caused by loose battery contact and establishing long-term trusted cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions.
