DIN41612 Vertical Press Fit Plug Connector

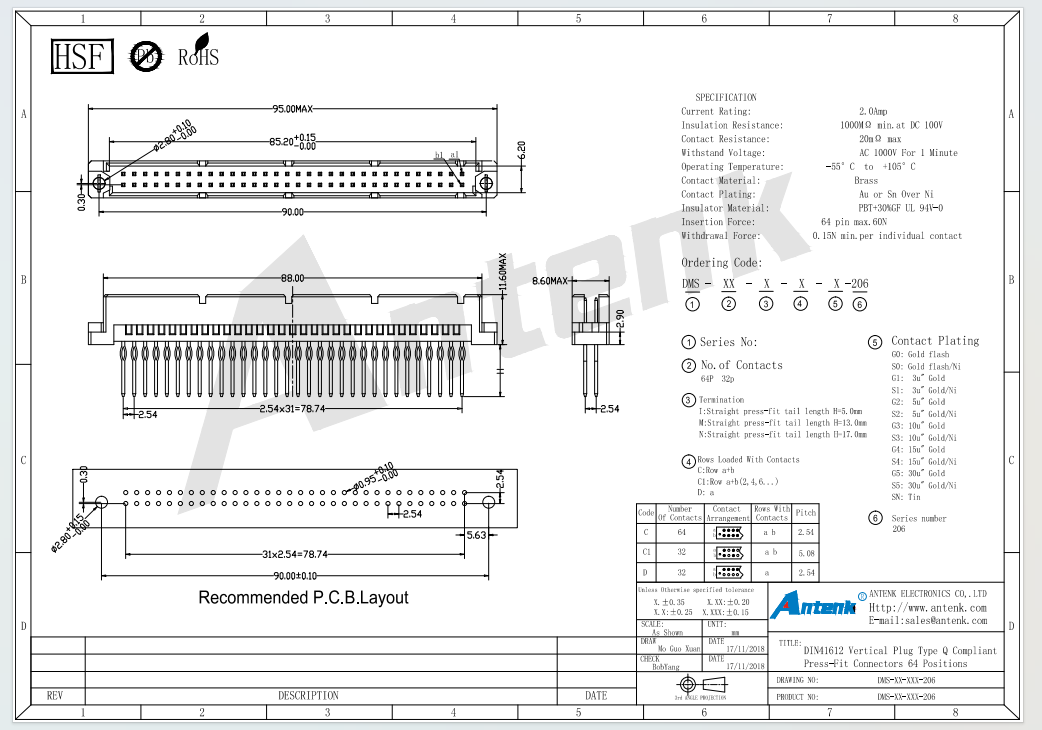

Manufactured by Huizhou Antenk Electronics Co., Ltd, the DMS series DIN41612 vertical Type Q press fit connector with 64 positions is a standard industrial-grade interconnection plug designed for stable signal and low-power circuit connection. According to the official engineering drawing, this product supports 32 pin and 64 pin specifications with 2.54mm standard pitch. Its insulator is made of PBT material filled with 30 percent glass fiber which meets UL94V-0 flame retardant standard. The contact parts adopt brass base material with optional surface treatment including gold flash and various thickness gold or tin over nickel plating. Electrical specifications include 2.0 Amp rated current, minimum 1000MΩ insulation resistance and maximum 20 milliohms contact resistance. It can withstand 1000V AC voltage for one minute and keeps stable performance within the temperature range from minus 55 degrees Celsius to 105 degrees Celsius. Three types of termination structures are available including straight solder tail and two lengths of press fit pins, with controlled insertion force and withdrawal force to guarantee long-term reliable mating. Our complete production process covers independent precision mold development, high-speed brass terminal stamping, high temperature resistant plastic injection molding, anti oxidation electroplating and automatic assembly, all dimensions are strictly calibrated with precise tolerances relying on imported punching and injection molding equipment.



This vertical press fit DIN connector can be installed in two mainstream ways. Users can press the pin terminals into reserved PCB holes for press fit assembly or complete wave soldering for through hole fixation following the official PCB layout drawing, then mate it with matching DIN41612 female socket to realize complete circuit conduction. It is widely applied in industrial control backplanes, communication cabinet modules, test and measurement instruments, automation equipment, network switching devices and embedded industrial computer systems. During installation, excessive pressing force should be avoided to prevent PCB pad damage and insulator cracking. Operators must follow the rated electrical parameters to avoid contact burnout, and store unused connectors in dry environment to prevent brass terminals from oxidation. All products conform to EU RoHS and REACH environmental directives, most items pass UL certification with certificate number E472792, and the factory has obtained ISO9001 ISO14001 and IATF16949 system certifications.
