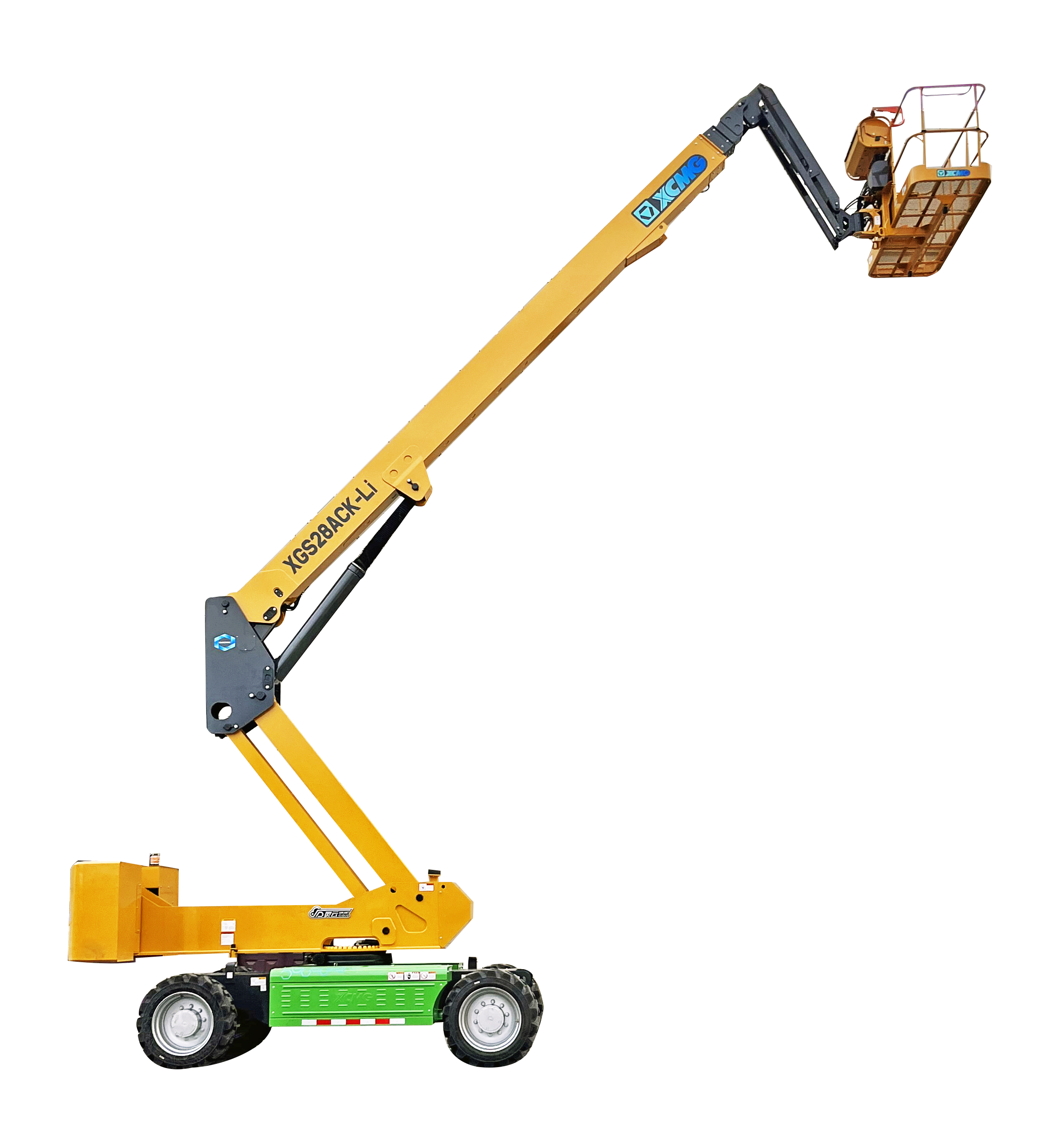

XCMG XGS28ACK-Li Electric Telescopic Boom Lift
3 week ago
The XCMG XGS28ACK-Li is a next-generation electric telescopic boom lift engineered for high-reach applications that require outstanding performance, efficiency, and environmental sustainability. With a maximum working height of 28.8 m and a dual platform capacity of 300 kg (unrestricted) or 460 kg (restricted), it offers the flexibility needed for a wide range of construction and maintenance projects.
Powered by an advanced lithium battery system, the XGS28ACK-Li delivers zero emissions, low noise, and reduced operating costs, making it an ideal choice for both indoor and outdoor applications. The self-propelled design provides smooth travel, precise boom positioning, and excellent maneuverability, helping operators work safely and efficiently even in demanding jobsite conditions.
With its impressive working height, long horizontal outreach, and spacious platform, the XGS28ACK-Li is well suited for steel structure installation, building construction, equipment maintenance, airports, warehouses, industrial plants, and large infrastructure projects. Combining reliable performance, eco-friendly operation, and easy maintenance, it is an efficient solution for modern aerial access work.
| Item | Specification |
| Model | XGS28ACK-Li |
| Power Type | Electric Telescopic Boom Lift |
| Working Height | 28.8 m |
| Platform Height | 26.8 m |
| Maximum Working Outreach | 22.0 m |
| Platform Capacity | 300 kg (Unrestricted) / 460 kg (Restricted) |
| Maximum Occupants | 3 Persons |
| Machine Weight | 16,600 kg |
| Overall Dimensions (Stowed) | 11,690 × 2,490 × 2,930 mm |
| Transport Dimensions | 11,460 × 2,490 × 3,000 mm |
| Platform Size | 2,440 × 910 × 1,150 mm |
| Wheelbase | 3,200 mm |
| Fly Jib Length | 1,850 mm |
| Ground Clearance | 320 mm |
| Telescopic Boom Luffing | -4° to +73° |
| Fly Jib Luffing | -65° to +70° |
| Turntable Rotation | 360° Continuous |
| Platform Rotation | 160° |
| Drive Speed (Stowed) | 6.0 km/h |
| Drive Speed (Raised) | 0.6 km/h |
| Minimum Turning Radius (Inside/Outside) | 3.36 m / 6.69 m |
| Rear Tail Swing | 1,809 mm |
| Gradeability | 45% (24°) |
| Working Slope | X: ±3° / Y: ±3° |
| Key Features | Lithium Battery, Zero Emission, Low Noise, Self-Propelled, High Capacity, Long Reach, Indoor & Outdoor Operation |
