2.00mm Female Header Dual Row Angle Type

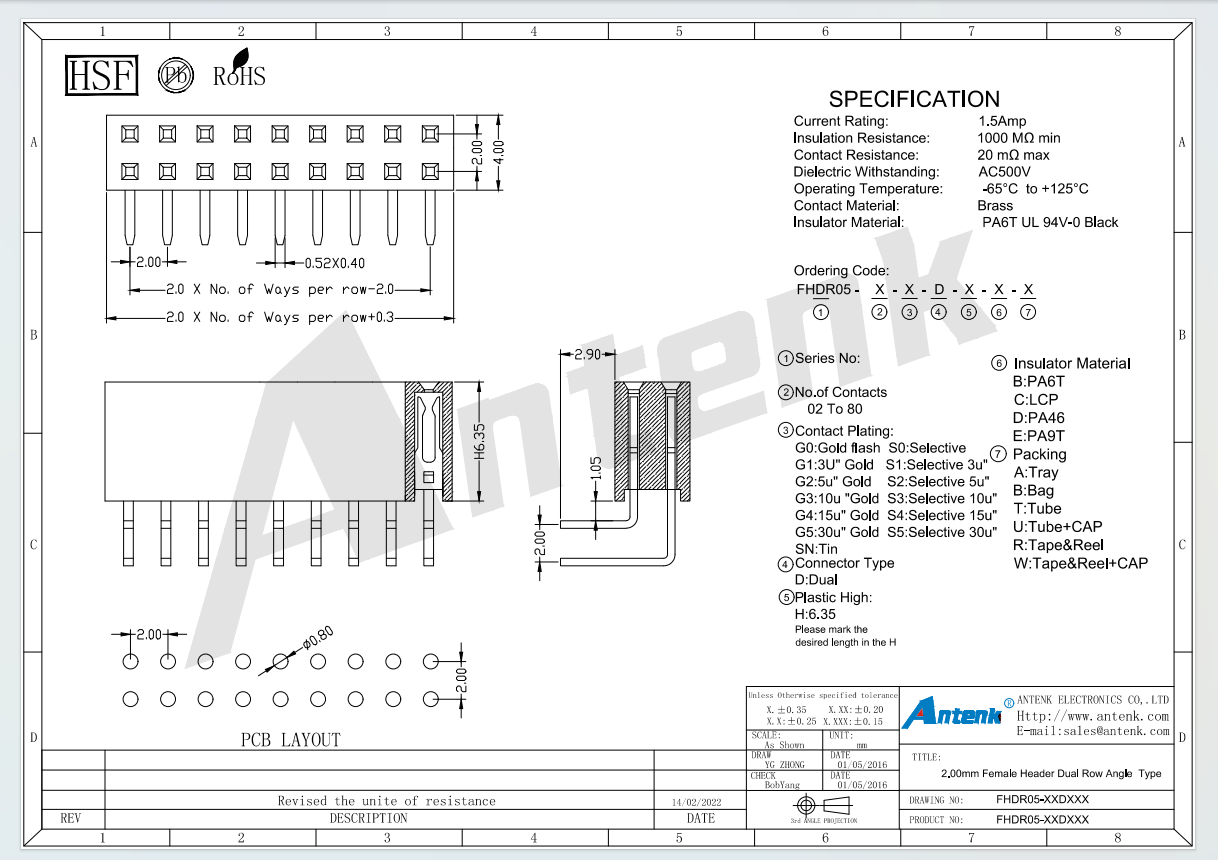

Manufactured by Huizhou Antenk Electronics Co., Ltd, the FHDR05 series 2.00mm pitch dual row right angle female header is a right angle through-hole interconnection component for PCB signal and low-power circuit connection, supporting contact quantities from 02 pins up to 80 pins. According to drawing specifications, this angled socket features fixed plastic height of 6.35mm with 2.0mm standard pitch, and the insulator provides optional materials including PA6T, LCP, PA46 and PA9T, with standard black PA6T complying with UL94V-0 flame retardant requirement. Brass contact terminals support gold flash, various thickness selective gold plating and pure tin plating to meet different anti-oxidation and conductive demands. Its electrical indicators contain 1.5A rated current, minimum 1000MΩ insulation resistance and maximum 20mΩ contact resistance, enduring 500V AC dielectric withstand voltage and operating stably within ultra wide temperature from -65°C to +125°C. The right angle bent pin design saves vertical assembly space for compact electronic equipment, and all PCB layout dimensional tolerances are strictly controlled to fit standard through-hole wave soldering. Our complete production procedure includes independent precision mold development, high-speed brass terminal stamping, high-temperature resistant plastic injection molding, anti-corrosion electroplating, automatic bending assembly and full electrical reliability testing. Imported Taiwan high-speed punching equipment and Japanese precision injection molding machines guarantee consistent dimensional precision during mass production.



This dual row right angle female header is equipped with multiple packaging solutions such as tray, bag, tube, tube with cap, tape reel and tape reel with cap to satisfy manual assembly and fully automatic DIP production lines. Operators insert the bent right angle pins into reserved holes on printed circuit boards following the official PCB layout drawing and complete wave soldering, then mate the female header with matched dual row straight male pin headers to build complete signal and power transmission circuits. It is widely applied in industrial control miniature modules, communication circuit boards, digital display devices, smart home appliances, automotive auxiliary electronic units, portable data storage devices and precision testing instruments. During production and application, users must control soldering temperature reasonably to avoid insulator deformation caused by overheating, avoid excessive force during mating to prevent bent pin deformation, and store unused connectors in dry sealed packages to prevent brass contacts from oxidation. All products comply with EU RoHS and REACH environmental standards, most specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management certifications.



Compared with other connector manufacturers, Antenk owns more than 250 sets of self-developed plastic molds and 180 sets of precision brass stamping molds, supporting personalized customization of pin count, insulator material and contact plating mode for this right angle female header series. Our 10000 square meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring stable batch product quality and fast delivery for large bulk orders. As an enterprise awarded Guangdong Famous Trademark qualification, more than 70 percent of our pin header products are exported to global markets. Our multi-stage incoming material, in-process and finished product inspection system delivers excellent temperature resistance and stable elastic clamping performance, effectively reducing intermittent circuit connection faults and establishing long-term trustworthy cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions.
