0.8mm VERTICAL SMD EDGE RATE CARD SOCKET

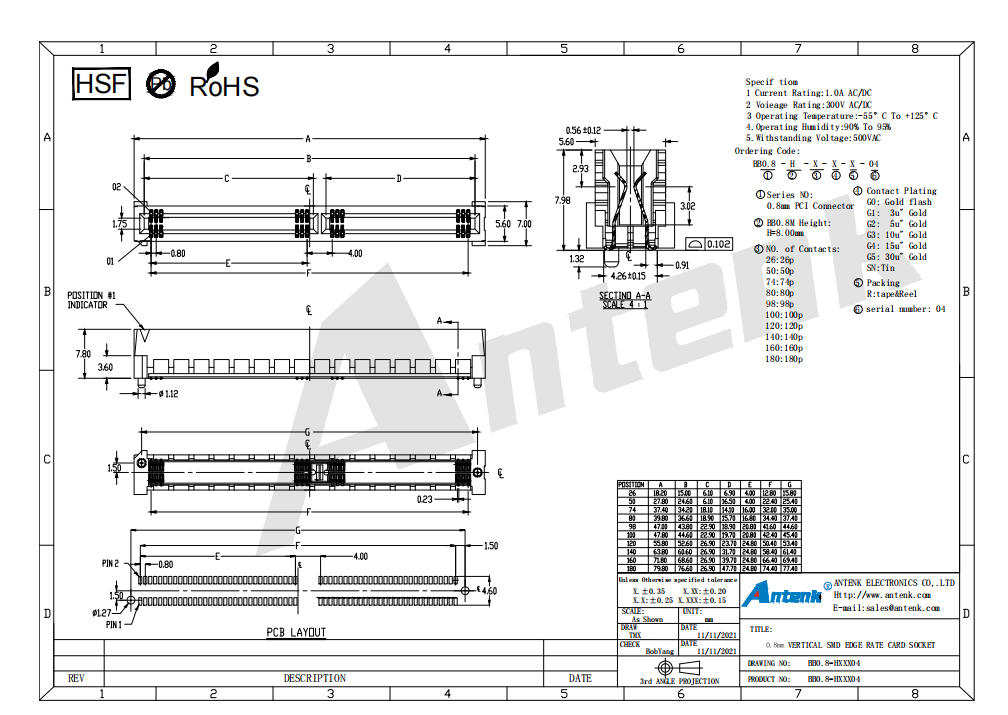

Manufactured by Huizhou Antenk Electronics Co., Ltd, this 0.8mm pitch vertical SMD edge rate card socket is a professional surface mount edge card connector designed for PCB board to board signal transmission and expansion card connection. According to drawing specifications, this connector has a fixed body height of 8.0mm and supports pin counts ranging from 26 pins up to 180 pins to meet multi-channel signal transmission demands. The internal elastic contact pieces are made of high elasticity copper alloy, with customizable surface plating including gold flash and multiple thickness selective gold plating as well as tin plating options to enhance oxidation resistance and long-term conductive stability. Its electrical performance includes 1.0A rated current and 300V AC DC rated voltage, capable of enduring 500V AC withstand voltage for one minute. It can operate stably under 90 percent relative humidity within the temperature range from minus 55 degrees Celsius to 125 degrees Celsius. The vertical SMD structure is matched with standard PCB layout footprint to fully adapt to automatic reflow soldering production. Our complete production process consists of independent precision mold development, high-speed copper terminal stamping, high-temperature plastic injection molding, anti-corrosion electroplating and automated assembly. Imported Taiwan punching equipment and Japanese injection molding machines keep all outline and soldering dimensions within strict tolerance limits for consistent mass production quality.



This vertical edge card socket adopts tape and reel packaging exclusively to fit fully automatic SMT patch assembly lines. Operators align the SMD soldering feet with reserved pads on printed circuit boards following the official PCB layout drawing and finish reflow soldering fixation, then insert the matching edge expansion card into the socket slot to complete signal interconnection between two circuit boards. It is widely applied in industrial control backplane systems, communication switching equipment, data storage expansion modules, embedded industrial computers, test measurement instruments and digital signal processing devices. During usage, users must strictly control reflow temperature curve to prevent plastic housing thermal deformation, avoid forced plugging to prevent elastic contact fatigue damage, and store unused connectors in dry sealed environment to prevent terminal oxidation. All products comply with EU RoHS and REACH environmental regulations, most specifications obtain UL certification numbered E472792, and our factory holds ISO9001, ISO14001 and IATF16949 automotive quality management certifications.



Compared with other connector manufacturers, Antenk owns more than 250 sets of self-developed plastic molds and 180 sets of precision metal stamping molds, supporting flexible customization of pin quantity and contact plating thickness for this edge card socket series. Our 10000-square-meter production base with 250 professional staff is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring stable batch quality and fast delivery for large bulk orders. As a Guangdong Famous Trademark certified enterprise, more than 70 percent of our edge card connectors are exported to global markets. Our multi-stage incoming, in-process and finished product inspection system delivers excellent anti-humidity and anti-vibration performance, effectively reducing intermittent signal loss caused by poor contact and establishing long-term trusted cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions.
