VH3.96mm 90° Wafer Connector Series

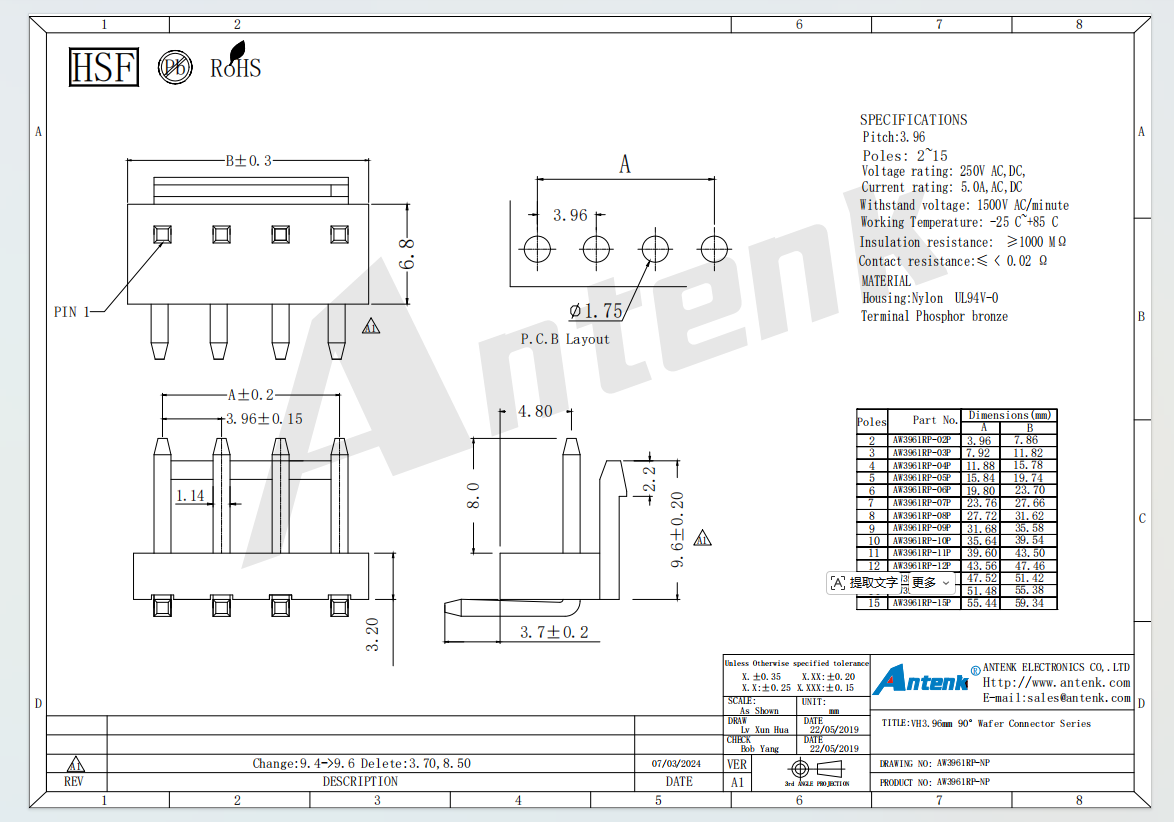

Manufactured by Huizhou Antenk Electronics Co., Ltd, the AW3961RP series 3.96mm pitch 90 degree right angle wafer connector is a professional wire to board interconnection component used for power and signal transmission between wiring harnesses and circuit boards, supporting pin quantities ranging from 2 pins up to 15 pins. In accordance with the engineering drawing specifications, this right angle wafer header adopts 3.96mm fixed pitch, the insulating housing is molded from flame retardant Nylon material that meets UL94V-0 safety standard, and internal conductive terminals are made of high elasticity phosphor bronze to guarantee stable clamping force during long-term mating. Its electrical parameters include 250V AC DC rated voltage and 5.0A rated current, minimum 1000 megaohms insulation resistance and maximum 0.02 ohm contact resistance, which can withstand 1500V AC voltage for one minute. The product can work reliably within the temperature range from minus 25 degrees Celsius to plus 85 degrees Celsius. The 90 degree bent pin structure effectively saves vertical installation space inside compact equipment, and all PCB layout dimensional tolerances are strictly controlled to adapt to standard through hole wave soldering processes. Our complete production workflow includes independent precision mold development, high-speed phosphor bronze terminal stamping, high temperature resistant nylon injection molding, surface anti oxidation treatment and automatic assembly. Imported Taiwan high speed punching machines and Japanese precision injection molding equipment ensure consistent dimensional accuracy in mass production.



This right angle through hole wafer connector is mainly supplied in bulk packaging for manual plug in assembly lines. Operators insert the bent right angle pins into reserved holes on printed circuit boards following the official PCB layout drawing and complete wave soldering fixation, then crip wires into the matched female housing and lock the housing onto this wafer header to form a complete wire board connection circuit. It is widely applied in industrial control modules, household appliance control panels, small motor drive units, power supply modules, digital display devices and general testing instruments. During soldering and application, users must strictly control soldering temperature to prevent nylon housing thermal deformation, avoid excessive pulling force on connected wires to prevent terminal loosening and pin fracture, and store unused connectors in dry sealed environment to avoid phosphor bronze terminals from oxidation and discoloration. All products comply with EU RoHS and REACH environmental directives, most item specifications pass UL certification with the certificate number E472792, and our factory has obtained ISO9001, ISO14001 and IATF16949 automotive industry quality management system certifications.



Compared with other connector manufacturers, Antenk has independently developed more than 250 sets of plastic molds and 180 sets of precision metal stamping molds, supporting customized pin number and surface plating options for this 3.96mm right angle wafer connector series. Our 10000 square meter production base is staffed by 250 professional employees and equipped with over 180 automatic assembly machines and 20 professional testing instruments, which guarantees stable batch quality and efficient delivery for large bulk orders. As a brand awarded Guangdong Famous Trademark qualification, more than 70 percent of our wire to board connectors are exported to global overseas markets. We implement full process quality inspection covering raw material incoming check, in process production monitoring and finished product verification, greatly improving anti vibration and pull out resistance performance, effectively reducing circuit interruption faults caused by loose connection, and establishing long term trustworthy cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions worldwide.
