Half-Q DIN41612 Press Fit Vertical Plug

1、Product Description

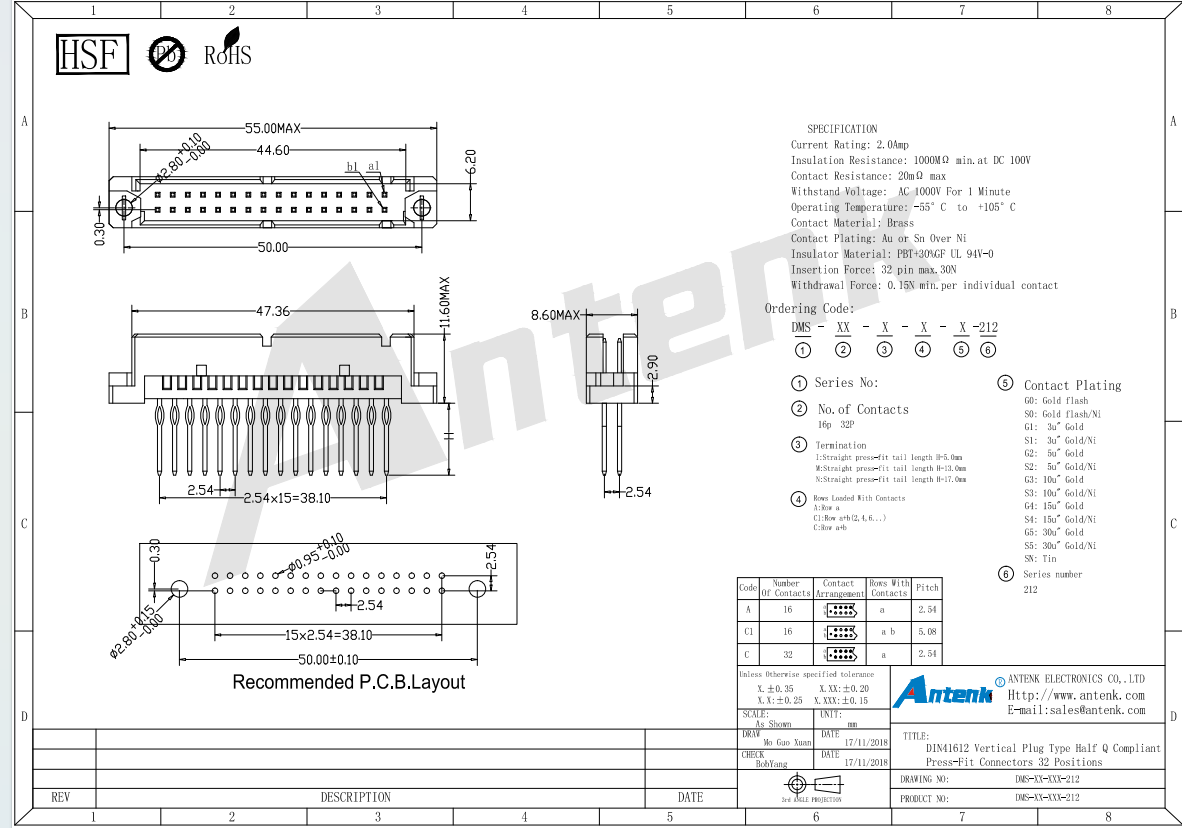

Manufactured by Huizhou Antenk Electronics Co., Ltd, the DMS series DIN41612 Half Q compliant vertical press fit plug connector with 32 positions is a professional industrial backplane interconnection component designed for signal and low-power circuit connection between rack-mounted printed circuit boards. Following the official engineering drawing, this connector adopts standard 2.54mm pitch and supports 16-pin single row and 32-pin double row two layout options. The insulating housing is injection molded from PBT material filled with 30 percent glass fiber that satisfies UL94V-0 flame retardant requirement. Brass terminals are available with gold flash, multiple thickness selective gold plating and tin over nickel plating options to lower contact resistance and enhance anti-corrosion performance. Its electrical parameters include 2.0A rated current, minimum 1000MΩ insulation resistance and maximum 20mΩ contact resistance, capable of enduring 1000V AC dielectric voltage for one minute and operating stably from minus 55°C to plus 105°C. Three types of press fit pin tail lengths are provided to match PCB boards of different thicknesses, with restricted overall insertion force and fixed minimum withdrawal force for each single contact to guarantee long-term stable press-in connection. Our complete production workflow covers independent precision mold development, high-speed brass terminal stamping, high temperature resistant plastic injection molding, anti-oxidation electroplating and automatic assembly. Imported Taiwan high-speed punching machines and Japanese precision injection molding equipment strictly control all PCB layout dimensional tolerances to fit standardized press fit PCB assembly processes.



This vertical press fit DIN plug requires no soldering during installation. Operators align the press fit pins with prefabricated holes on printed circuit boards according to the official PCB layout drawing and apply even vertical pressure to press terminals into PCB holes to complete permanent circuit connection, then mate the plug with matched DIN41612 female socket to realize closed-loop signal transmission. It is widely applied in industrial control rack backplanes, communication cabinet module circuit boards, automated testing equipment, embedded industrial computers, network switching devices and precision measuring instruments. During installation, users must avoid excessive pressing force to prevent PCB pad tearing and insulator cracking. Repeated plugging and unplugging shall be prohibited to avoid terminal elastic fatigue. Unused connectors need to be stored in dry sealed packaging to prevent brass pins from oxidation and rust. All products comply with EU RoHS and REACH environmental directives, most specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management certifications.



Compared with other connector manufacturers, Antenk independently develops more than 250 sets of plastic molds and 180 sets of precision brass stamping molds, supporting customized pin count, pin tail length and contact plating scheme for this Half Q DIN41612 press fit connector series. Our 10000-square-meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring consistent batch product quality and efficient delivery for large bulk orders. As a brand certified with Guangdong Famous Trademark qualification, more than 70 percent of our industrial DIN connectors are exported to global markets. We implement full-process quality inspection from raw material incoming to finished product delivery, greatly improving shock resistance and aging resistance, effectively reducing circuit disconnection faults caused by poor contact, and establishing long-term trusted cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions worldwide.
