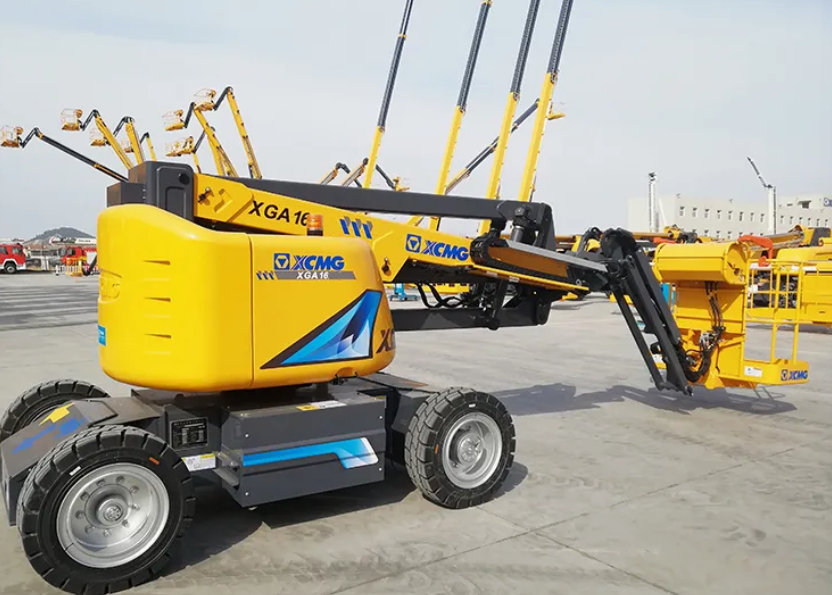

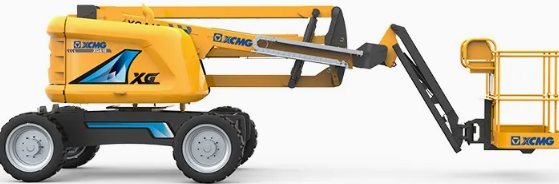

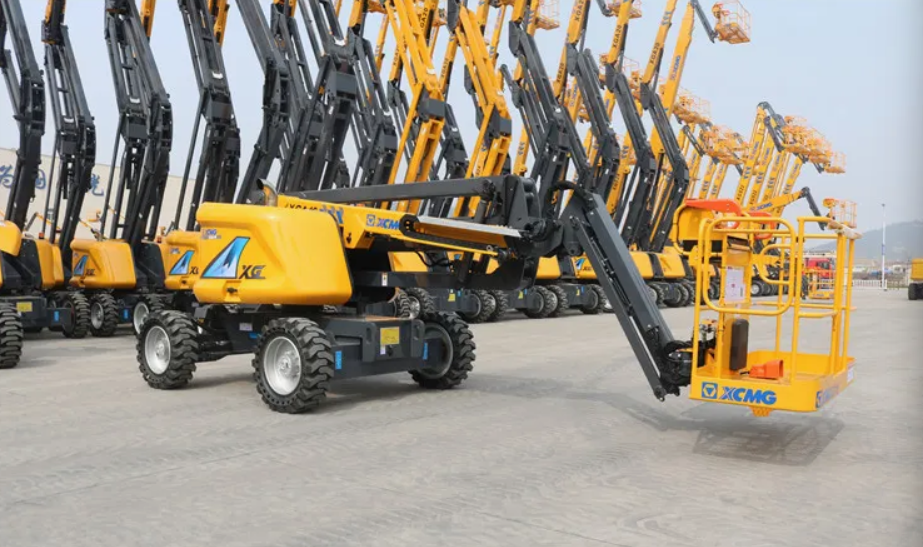

XCMG XGA16K Articulated Boom Lift
3 week ago
| Feature | Specification |
| Model | XGA16K |
| Machine Type | Engine Powered Articulated Boom Lift |
| Working Height | 16.63 m |
| Platform Height | 14.63 m |
| Platform Capacity | 256 kg (Unrestricted) / 350 kg (Restricted) |
| Machine Weight | 7,600 kg |
| Maximum Working Outreach | 8.82 m |
| Maximum Up-and-Over Clearance | 7.7 m |
| Maximum Occupants | 2–3 Persons |
| Platform Size | 1830 × 760 × 1150 mm |
| Stowed Dimensions | 6850 × 2320 × 2380 mm |
| Transport Dimensions | 5600 × 2320 × 2650 mm |
| Wheelbase | 2360 mm |
| Fly Jib Length | 1420 mm |
| Ground Clearance | 300 mm |
| First Boom Articulation | 0° to +65° |
| Second Boom Articulation | -11° to +75° |
| Fly Jib Articulation | -65° to +70° |
| Turntable Rotation | 355° |
| Platform Rotation | 160° |
| Drive Speed (Stowed) | 5.5 km/h |
| Drive Speed (Raised) | 0.6 km/h |
| Turning Radius (Inside/Outside) | 3200 / 4700 mm |
| Tail Swing | 0 mm |
| Gradeability | 45% |
| Working Slope | X: 5° / Y: 5° |
| Key Advantages | Compact articulated boom design, excellent obstacle-crossing capability, precise positioning, strong gradeability, zero tail swing, ideal for construction, industrial maintenance, petrochemical plants, warehouses, and equipment rental applications. |
