DIN 41612 Vertical Female Type B Connectors 44 Positions

1、Product Description

Manufactured by Huizhou Antenk Electronics Co., Ltd, the DFS series DIN41612 Type B vertical female connector with maximum 44 positions is a standardized industrial backplane receptacle designed to mate with matching DIN41612 male plugs to realize stable signal and low-current power transmission between rack-mounted printed circuit boards. In strict accordance with engineering drawing specifications, this connector adopts 2.54mm fixed pitch, supporting 22-pin single row and 44-pin double row two mainstream layout modes, and it provides two structural options including locking fork version and non-fork version to prevent accidental loosening during long-term equipment operation. The insulating body is injection molded from PBT material filled with 30 percent glass fiber that meets UL94V-0 flame retardant certification. Elastic brass contact terminals support gold flash, multi-thickness selective gold plating and tin over nickel plating surface treatments to lower contact resistance and strengthen anti-corrosion and anti-tarnish performance. Its electrical specifications include 2.0A rated current, minimum 1000MΩ insulation resistance and maximum 20mΩ contact resistance, capable of withstanding 1000V AC dielectric voltage for one minute and maintaining steady working performance within the temperature range from minus 55°C to plus 105°C. Multiple lengths of straight and wrap-around solder tails are optional to fit PCB boards with different thickness, with total insertion force limited and fixed minimum withdrawal force for each individual contact to guarantee durable and tight mating. Our complete production process consists of independent precision mold research and development, high-speed brass terminal stamping, high-temperature resistant plastic injection molding, anti-oxidation electroplating and fully automatic assembly. Imported Taiwan high-speed punching machines and Japanese precision injection molding equipment strictly control all PCB layout dimensional tolerances to perfectly adapt to standard through-hole wave soldering manufacturing procedures.



This vertical female DIN connector is installed by inserting straight solder pins into reserved through holes on printed circuit boards following the official PCB layout drawing and finishing wave soldering fixation, then inserting the matched DIN41612 male plug into the female receptacle to form a complete inter-board power and signal closed-loop connection. It is widely applied in industrial control cabinet backplanes, communication equipment rack modules, automatic testing instruments, embedded industrial computers, signal acquisition modules and precision measuring instruments. During soldering and daily application, users must strictly control heating temperature to avoid thermal deformation of the plastic insulator, avoid violent forced plugging to prevent permanent elastic fatigue and deformation of brass contacts, and store unused connectors in dry sealed packaging to stop brass terminals from oxidation and rusting. All products comply with EU RoHS and REACH environmental protection directives, most product specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management system certifications.



Compared with other connector manufacturers in the industry, Antenk independently develops and owns more than 250 sets of plastic injection molds and 180 sets of precision brass stamping molds, supporting personalized customization of pin quantity, locking fork structure, solder tail length and contact plating type for this Type B DIN41612 female connector series. Our 10000-square-meter production base with 250 professional staff is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring stable batch product quality and on-time delivery for large bulk export orders. As a brand certified with Guangdong Famous Trademark qualification, more than 70 percent of our industrial backplane connectors are exported to global overseas markets. We implement whole-process quality inspection covering incoming raw material inspection, in-process production supervision and finished product comprehensive inspection, greatly improving anti-vibration capability and long-term connection reliability, effectively eliminating intermittent signal interruption faults caused by poor mating contact, and establishing long-term trustworthy cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions around the world.



2、FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

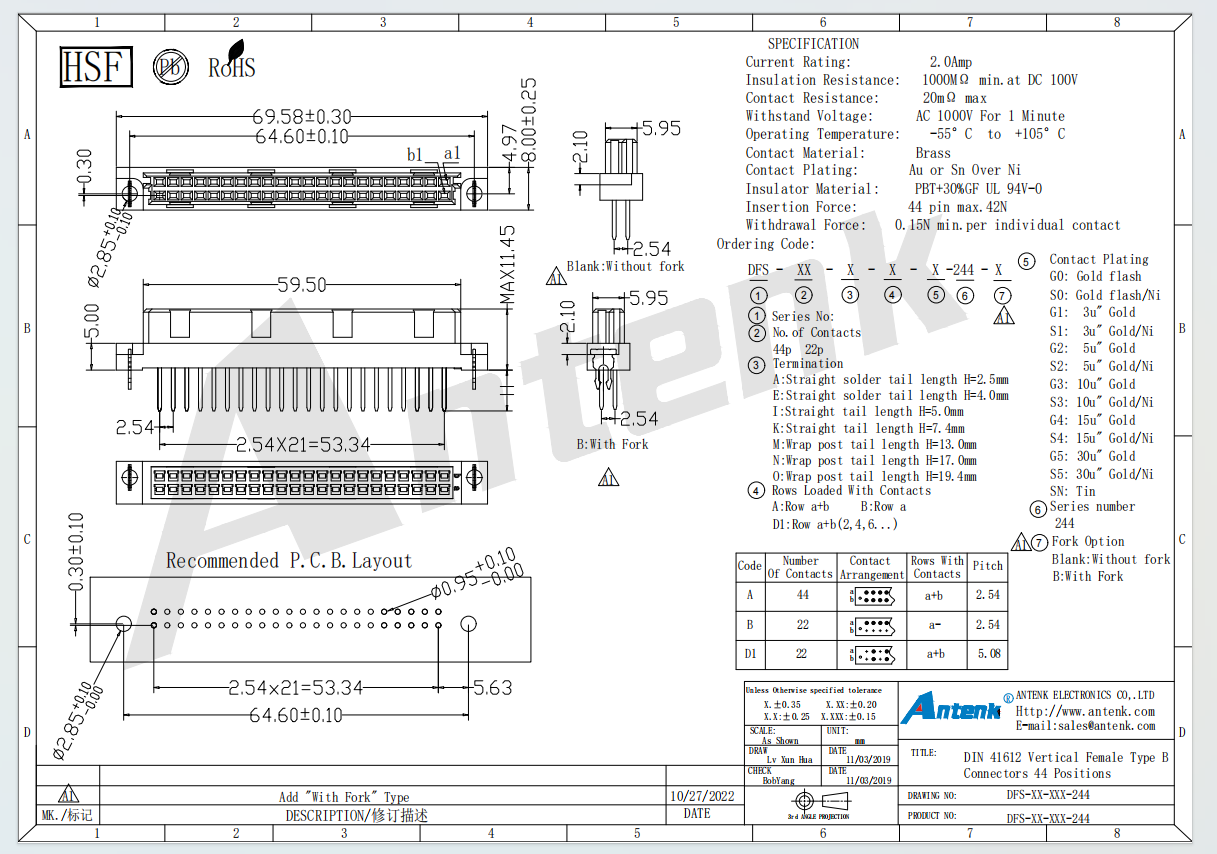

3、Product Drawing
