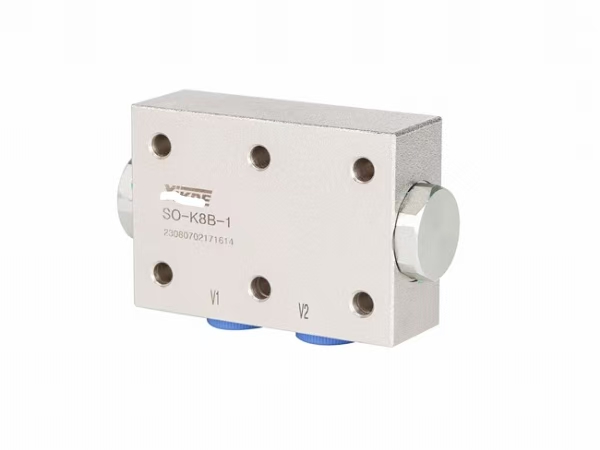

Hydraulic Counterbalance Valve SO-K8B-1
3 week ago
Product details
1. Basic Product Overview
The SO-K8B-1 is a plate-mounted dual pilot-operated check valve, commonly categorized as a hydraulic lock-type hydraulic counterbalance valve. It is a compact small-bore load holding component tailored for lightweight hydraulic system of mini construction machinery, sanitation equipment and compact truck cranes. Installed at the line terminals of hydraulic cylinders and small-displacement orbital/plunger hydraulic motor, it adopts hardened steel poppets with zero-leakage sealing to sustain long-term load locking. It eliminates safety risks including outrigger retraction, hoist load dropping and free coasting of the hydraulic motor. As a standard domestic general-purpose dual hydraulic lock, it serves as a direct interchange replacement for imported counterparts of the same specification.
Model Breakdown
- SO: Series code for dual hydraulic lock (balance lock)
- K8: Nominal bore DN8 with G3/8 port thread
- B: Plate base mounting configuration
- 1: Standard basic version with fixed pilot ratio 1:5.1, no pressure regulation function for pure load locking
2. Core Technical Parameters
Item Specification
Product Type Dual pilot-operated check valve (hydraulic lock type hydraulic counterbalance valve)
Nominal Bore DN8
Port Thread G3/8 British pipe thread
Rated Working Pressure 32MPa (320bar), peak withstand pressure 35MPa
Maximum Rated Flow 40L/min
Pilot Opening Ratio 1:5.1
Valve Body Material Hard-anodized aluminum alloy
Sealing Structure Combination of hardened steel poppets and NBR oil-resistant rubber seals
Applicable Hydraulic Fluid ISO VG46 / VG68 anti-wear hydraulic oil
Operating Temperature -20℃ ~ +80℃
Core Structure Integrated linked push rod for synchronous unlocking of two check poppets
Warranty Period 1 year
3. Structure & Working Principle
The valve body houses two independent check poppets and an integral linked control push rod, connected to the V1 and V2 bidirectional oil lines of the overall hydraulic system and matched with double-acting cylinders or bi-directional hydraulic motor:
1. Neutral Shutdown of Main Directional Valve: Springs compress both poppets to fully seal the oil passages. Hydraulic fluid cannot recirculate, locking the hydraulic motor stationary and positioning the cylinder rigidly. Even if external pipelines rupture, the load will not drop due to pressure loss.
2. Forward Oil Supply via Port V1: High-pressure fluid pries open the left check valve to feed the actuator, while pushing the internal linked push rod to displace and pre-unlock the right check valve for smooth oil return, driving forward rotation of the hydraulic motor or cylinder extension.
3. Reverse Oil Supply via Port V2: The operation repeats in reverse; the push rod shifts oppositely to unlock the left check valve and enable reverse actuator movement.
4. Once oil supply is cut off, the push rod resets automatically, and both poppets rebound immediately to seal the circuit and lock the load in place instantly.
4. Key Product Advantages
1. Compact plate-type construction minimizes installation footprint, ideal for refitting and retrofitting tightly arranged lightweight hydraulic system;
2. Hard sealing with high-strength steel poppets delivers ultra-low static leakage, maintaining steady pressure holding without load sinking during prolonged static parking;
3. Optimized 1:5.1 pilot ratio ensures responsive unlocking without jamming, enabling smooth start-stop and reversible operation of the hydraulic motor with no impact;
4. Integrated linked push rod guarantees high synchronization for bi-directional unlocking and reduces single-side seizing failures;
5. Fully mechanical all-hydraulic structure without electrical components provides intrinsic explosion-proof performance, suitable for dusty, humid and harsh outdoor working conditions;
6. Strong compatibility to pair with domestic ZS-series multi-way valves and various small-sized hydraulic motor for complete assembly.
5. Typical Application Scenarios
1. Pressure holding and locking circuits for small outrigger cylinders of wreckers, truck-mounted cranes and aerial work platforms;
2. Anti-coasting locking oil circuits for brush hydraulic motor on road sweepers and spreaders;
3. Safety locking for mini winch hoists, feed cylinders and orbital motors of compact drilling rigs;
4. Load anti-drop protection for agricultural hydraulic implements and small lifting platform hydraulic system;
5. Auxiliary safety valve assembly matched with actuators across medium and small hydraulic equipment.
6. Fault Replacement Instructions
Replace the complete SO-K8B-1 counterbalance valve assembly if encountering spontaneous load sliding, free idling of unloaded hydraulic motor, rapid pressure drop after locking or oil seepage on the valve mounting surface. Such malfunctions are mostly caused by worn internal poppets and degraded failed seals.
