High-Reliability Right Angle E-Type Solder 160-Pin Plug



1、Product Descripiton

Manufactured by Huizhou Antenk Electronics Co., Ltd, the DMR series DIN41612 Type E right angle solder plug with 160 positions is a high-density industrial backplane connector built for stable multi-channel signal and low-power power transmission between rack-mounted PCB modules. In accordance with official engineering drawing standards, this connector adopts standard 2.54mm pitch and adopts five-row contact layout to realize 160 pin high-density wiring integration. The insulating housing is injection molded by PBT material filled with 30 percent glass fiber that complies with UL94V-0 flame retardant standard. Brass contact terminals support gold flash, multiple thickness selective gold plating and tin over nickel plating surface treatments to reduce contact resistance and strengthen long-term anti-corrosion and anti-tarnish performance. Its electrical parameters include 2.0A rated current, minimum 1000MΩ insulation resistance and maximum 20mΩ contact resistance, which can withstand 1000V AC dielectric voltage for one minute and operate steadily within the temperature range from minus 55°C to plus 105°C. It is equipped with fixed 2.8mm right angle solder tail length, with overall insertion force limited and fixed minimum withdrawal force for each single contact to prevent loose separation during long-term vibration working environment. Our complete production workflow includes independent precision mold research and development, high-speed brass terminal stamping, high temperature resistant plastic injection molding, anti-oxidation electroplating and automatic assembly. Imported Taiwan high-speed punching machines and Japanese precision injection molding equipment strictly control all PCB layout dimensional tolerances to perfectly match standard through-hole wave soldering processes.



This right angle DIN plug is installed by inserting right angle solder pins into reserved through holes on printed circuit boards following the official PCB layout drawing and completing wave soldering fixation, then mating the plug with matched DIN41612 female receptacle to form closed-loop multi-group signal and power transmission circuits. It is widely applied in large industrial control cabinet backplanes, communication mainframe rack modules, automated comprehensive testing equipment, embedded industrial computer systems, signal centralized acquisition equipment and high-precision measuring instruments. During soldering and daily application, users must reasonably control soldering heating temperature to avoid thermal deformation and cracking of the plastic insulator, prohibit forced frequent plugging and unplugging to prevent elastic fatigue and permanent deformation of brass contacts, and store unused connectors in dry sealed packaging to avoid oxidation and rust of internal terminals. All products comply with EU RoHS and REACH environmental protection directives, most product specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management system certifications.



Compared with other connector manufacturers in the industry, Antenk independently develops and owns more than 250 sets of plastic injection molds and 180 sets of precision brass stamping molds, supporting personalized customization of pin quantity, solder tail length and contact plating type for this Type E high-density DIN41612 right angle plug series. Our 10000-square-meter production base with 250 professional staff is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring stable batch product quality and punctual delivery for large bulk export orders. As a brand certified with Guangdong Famous Trademark qualification, more than 70 percent of our industrial DIN backplane connectors are exported to global overseas markets. We implement whole-process quality inspection covering incoming raw material inspection, in-process production supervision and finished product comprehensive testing, greatly improving anti-vibration capability and long-term connection reliability, effectively eliminating intermittent circuit disconnection faults caused by poor contact, and establishing long-term trustworthy cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions worldwide.



2、FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.



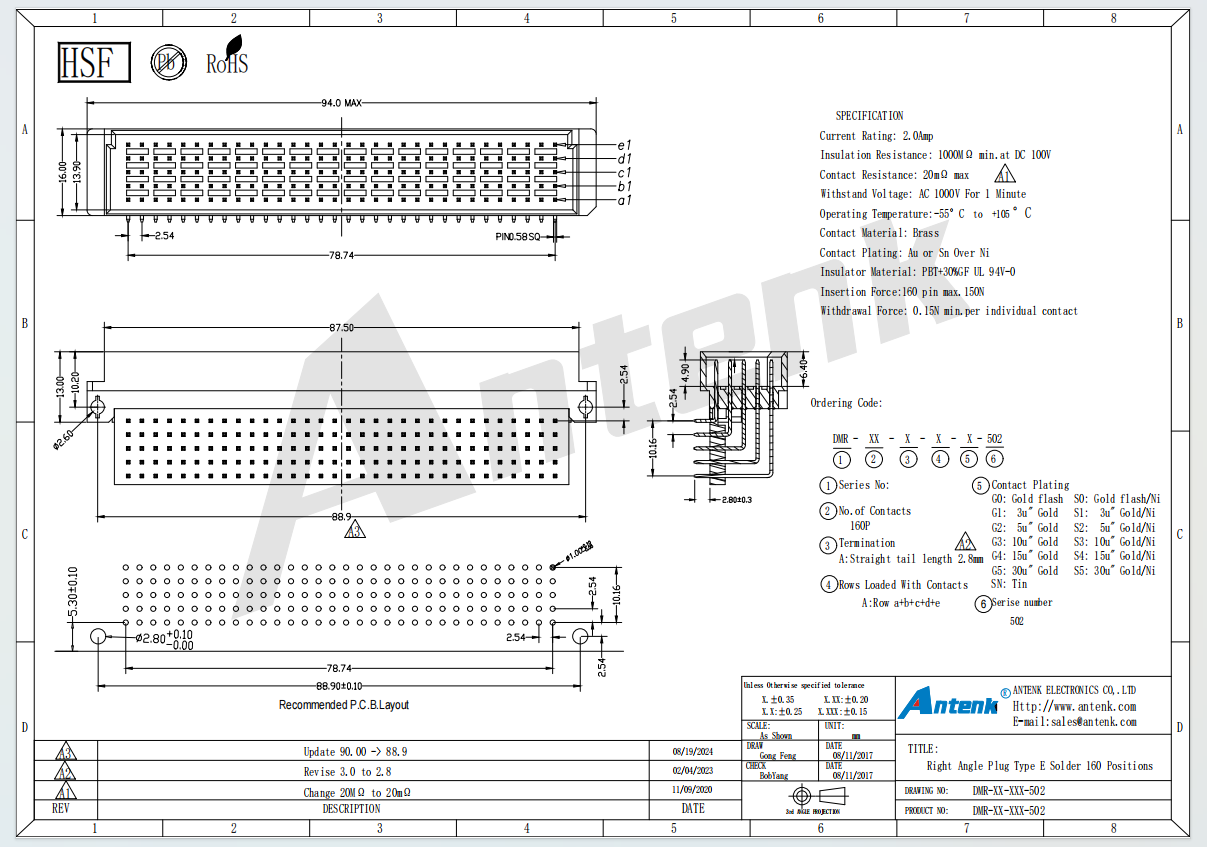

3、Product  Drawing
