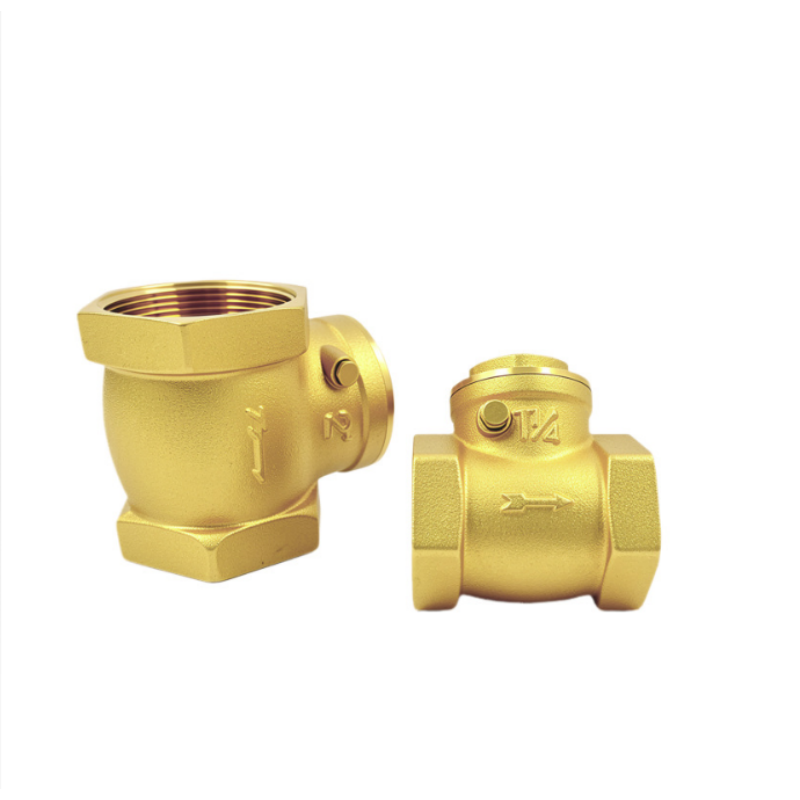

Crafted for stable one-way medium delivery in industrial pipelines, our horizontal check valve is a core passive flow control component that effectively blocks medium backflow and protects downstream pipe equipment. This industrial one way valve adopts horizontal mounting design, suitable for flat pipeline layout with limited vertical installation space, featuring low flow resistance, tight shut-off and quiet operation. If you need a full range of backflow prevention valves for different pipeline layouts, browse our complete industrial check valve collection to view vertical, spring and swing style check valves.

Available in stainless steel, cast iron and ductile iron materials, this horizontal one way check valve supports flange and thread connection, fully compliant with ANSI, DIN, JIS international piping standards. The built-in spring disc structure instantly closes when reverse flow occurs, avoiding water hammer and medium cross-contamination. Its wear-resistant valve seat maintains zero leakage under long-term continuous working conditions. For matching pipe connection accessories, you can select our standard pipeline flange fittings to finish complete pipeline assembly.

This horizontal check valve works steadily within -20℃~150℃, with pressure rating up to PN16, widely applied in water treatment, chemical pipeline, HVAC, oil and gas, municipal water supply and cooling circulation systems. Unlike manually operated valves, this one way valve runs automatically relying on medium pressure without extra actuators, greatly cutting daily maintenance cost and system downtime. We published a professional comparison blog to help you pick the right valve: Spring Check Valve vs Swing Check Valve Selection Tutorial

The polished inner cavity reduces fluid turbulence and pressure loss, helping clients lower overall system energy consumption. Surface anti-corrosion coating strengthens its service life under corrosive, humid and sediment-containing media. If you need automatic remote control of pipeline switch, this horizontal check valve can be matched with our valve electric actuators to build an intelligent fluid control system.

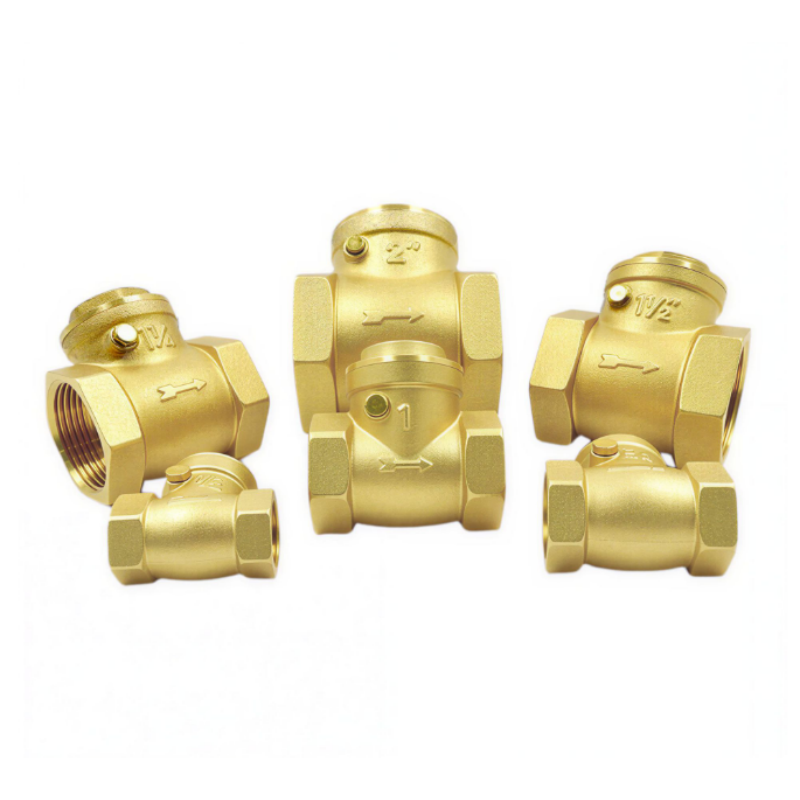

We supply multiple specifications from DN15 to DN300 to meet small-bore equipment and large industrial pipeline demands. Engineers from global chemical, water supply and machinery industries highly recognize this horizontal one way valve for stable performance and long service life over 10 years under normal use. If your pipeline installation space is narrow, you may compare our compact model mini horizontal spring check valve to get a more space-saving solution.
