3.96mm Female Header Single Row Straight Type H:8.9



1、Product Description

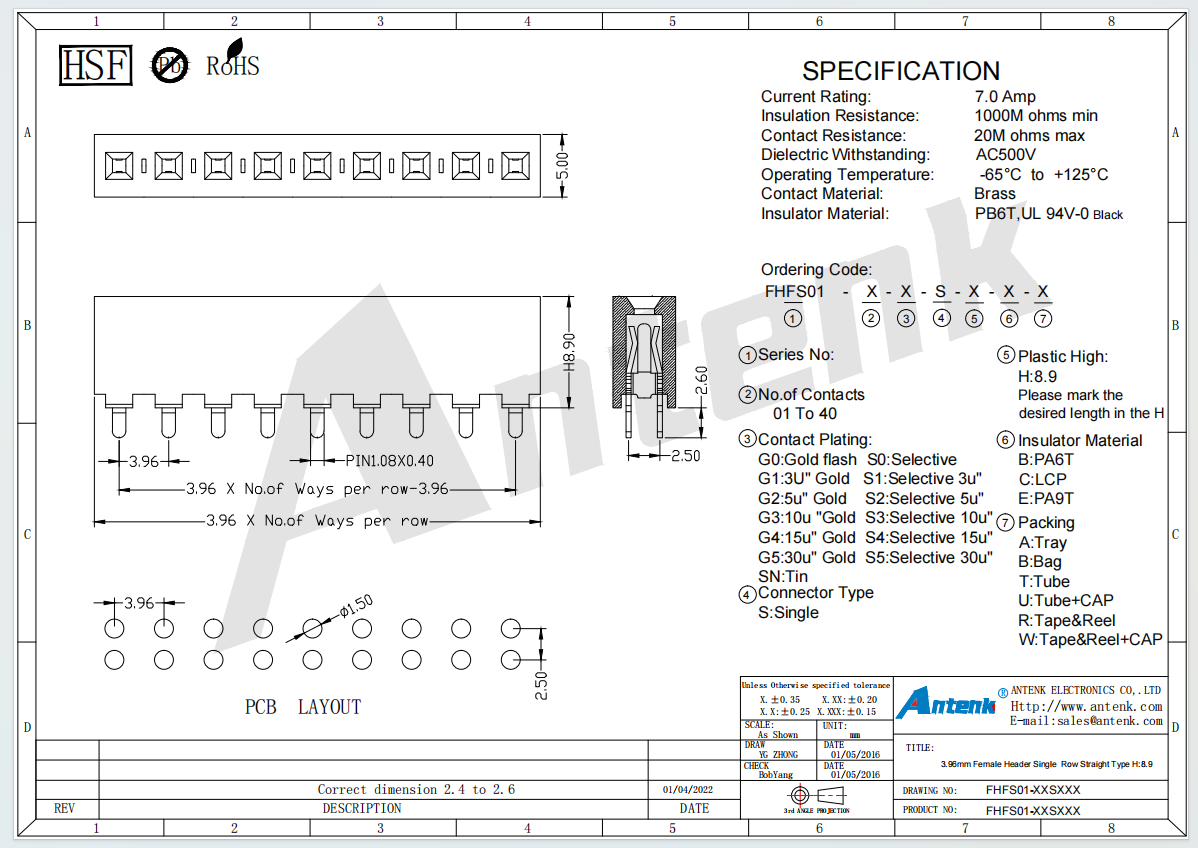

Manufactured by Huizhou Antenk Electronics Co., Ltd, the FHFS01 series 3.96mm pitch single row straight female header with 8.9mm plastic height is a heavy-current through-hole board-to-board receptacle designed for stable power delivery and signal transmission between printed circuit boards. In strict accordance with official engineering drawing standards, this connector supports contact quantities ranging from 1 pin up to 40 pins under fixed 3.96mm pitch. The insulating base can be customized with PA6T, LCP, PA46 and PA9T multiple high temperature resistant materials besides standard PB6T material, all complying with UL94V-0 flame retardant safety standard. Elastic brass contact terminals are equipped with gold flash, various thickness selective gold plating and pure tin plating surface options to minimize contact resistance and greatly boost anti-oxidation and soldering durability. Its electrical performance includes 7.0A high rated current, minimum 1000MΩ insulation resistance and maximum 20mΩ contact resistance, which can withstand 500V AC dielectric voltage for one minute and operate continuously within the wide temperature range from minus 65°C to plus 125°C. All PCB layout dimensional parameters are precisely controlled within tolerance limits to perfectly match standard through-hole wave soldering manufacturing techniques. Our complete production workflow covers independent precision mold development, high-speed brass terminal stamping, high temperature resistant plastic injection molding, anti-corrosion electroplating and automatic pin assembly. Imported Taiwan high-speed punching machines and Japanese precision injection molding equipment guarantee unified dimensional consistency during mass batch production.



This single row straight female header is installed by inserting vertical through-hole pins into reserved through holes on printed circuit boards following the official PCB layout drawing and completing wave soldering fixation, then inserting matched male pin headers into the female receptacle to form closed-loop power and signal transmission circuits between circuit boards. It is widely applied in industrial control power boards, power supply module circuits, household appliance main control panels, new energy equipment control units, automotive electronic power distribution modules and precision testing instrument power interfaces. During soldering and daily application, users must reasonably control soldering heating temperature to avoid thermal deformation and melting damage of the plastic insulator, prohibit forced violent plugging and unplugging to prevent permanent elastic deformation and fatigue of brass contact springs, and store unused connectors in dry sealed packaging to avoid oxidation and discoloration of internal metal terminals. All products comply with EU RoHS and REACH environmental protection directives, most product specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management system certifications. We provide tray, bag, tube and tape and reel diversified packaging solutions to adapt to manual assembly and fully automatic SMT automated production lines.



Compared with other connector manufacturers in the industry, Antenk independently develops and owns more than 250 sets of plastic injection molds and 180 sets of precision brass stamping molds, supporting personalized customization of pin number, insulator material, plastic height, contact plating mode and packaging type for this single row female header series. Our 10000-square-meter manufacturing plant with 250 professional staff is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring stable batch product quality and on-time delivery for large bulk export orders. As a brand certified with Guangdong Famous Trademark qualification, more than 70 percent of our board-to-board connectors are exported to global overseas markets. We implement full-link quality inspection including incoming raw material inspection, in-process production supervision and finished product comprehensive testing, greatly enhancing vibration resistance and long-term connection reliability, effectively eliminating intermittent circuit disconnection faults caused by poor contact, and establishing long-term trustworthy cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions all over the world.
