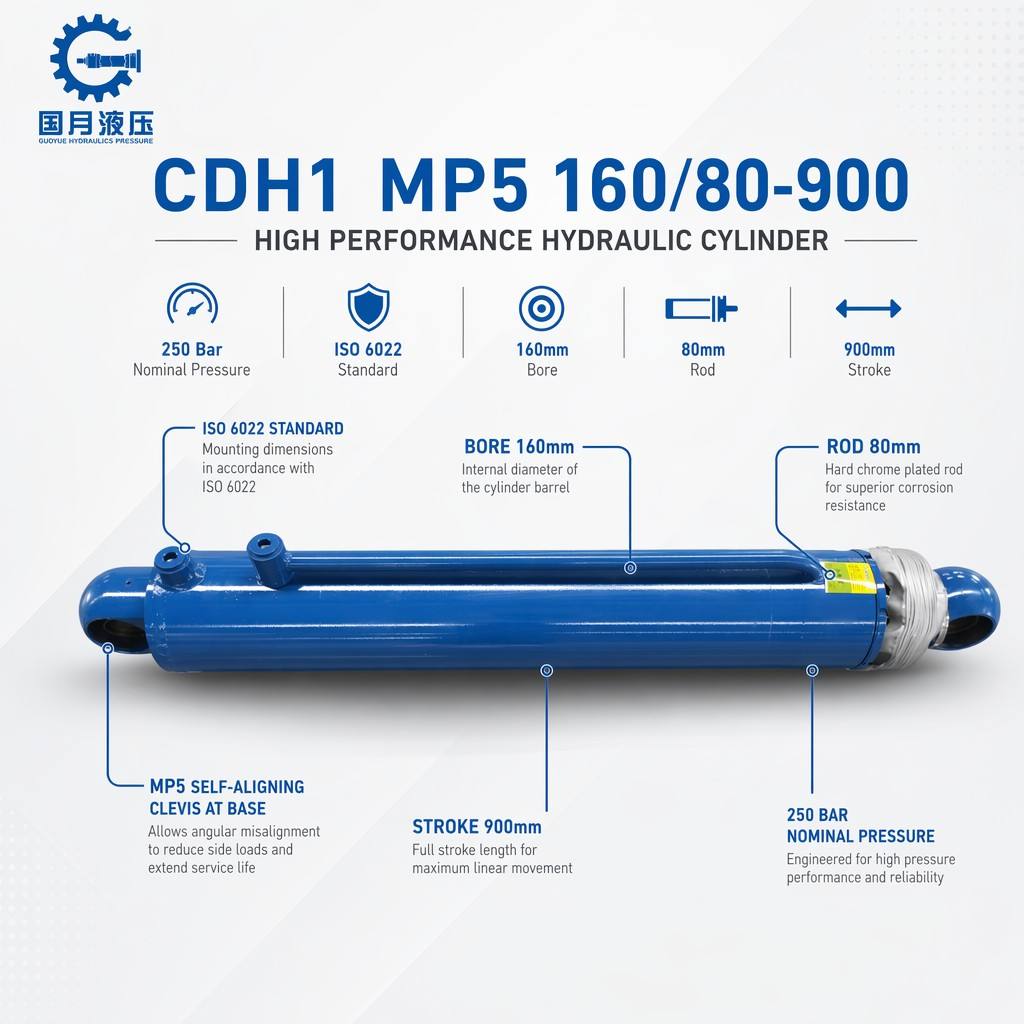

Engineering oil cylinder CDH1 MP5 160-80-900

Specification: CDH1 MP5, 160mm Bore, 80mm Rod, 900mm Stroke, Self-aligning Clevis Mount, Double Acting Engineering Hydraulic Cylinder

Telescopic Hydraulic Cylinder,Multi Section Hydraulic Cylinders,Multi Stage Hydraulic Cylinder

CNC-machined cylinder head and piston, dimensional accuracy IT7, ensuring smooth stroke response across the full 900mm travel.

Cylinder tube deep-hole drilled and skive-roller burnished on 8-meter horizontal machining line, bore straightness within 0.05mm per meter.

Piston rod fully quenched and tempered 42CrMo forging, tensile strength >= 900 MPa, chrome layer 30-50 um after diamond grinding.

MP5 self-aligning clevis end with GE-series spherical plain bearing, radial load capacity 260 kN, maintenance-free during service life.

100% factory tested at 375 Bar static proof pressure for 10 minutes; every unit shipped with individual test report and QC certificate.

Standard delivery: 15-25 days for custom stroke; short-stroke variants available ex-stock. Repair kits (seals + wear rings) shipped on request.

Widely used in steel rolling mills, forging presses, continuous casting lines, injection molding machines and heavy hydraulic press applications requiring reliable long-stroke actuation under high cyclic load.
