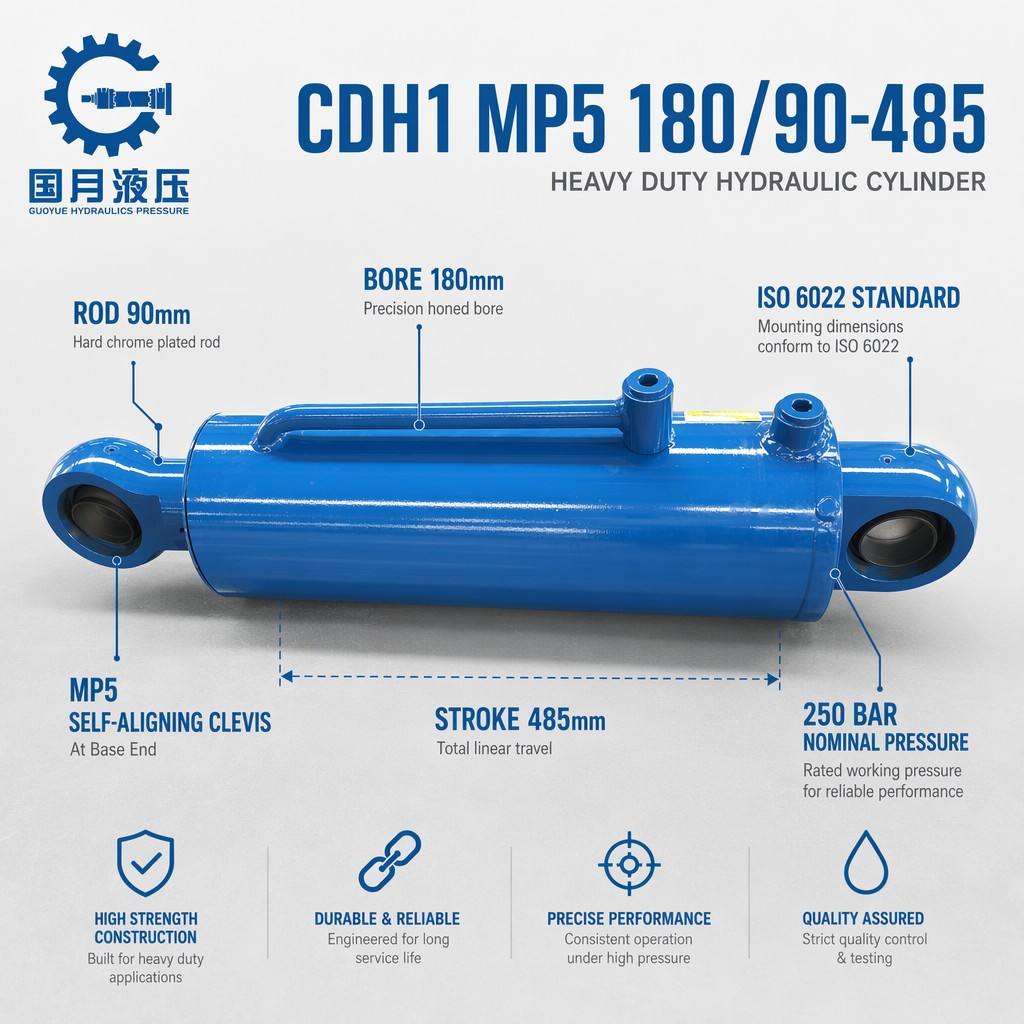

Engineering oil cylinder CDH1 MP5 180-90-485

Dual MP5 self-aligning spherical plain bearings on both rod and cap ends, enabling full articulation in push-pull applications with angular misalignment up to 4 degrees per side.

SAE flange ports standard on 180mm bore body, O-ring face seal for leak-free connection up to 375 Bar static proof, compatible with ISO 6162-1 flange pattern.

Piston fitted with wear rings on both bearing lands to prevent metal-to-metal contact under side load; guide band material glass-filled PTFE for temperatures up to 120 C.

Piston rod bearing bushing sintered bronze with PTFE lining, dry-run capable at slow speeds, eliminates stick-slip at stroke reversal points.

Compact 485mm stroke with 180mm bore achieves 636.2 kN push force, ideal for space-restricted installations where high force density is required.

Factory-configured pre-tensioned tie rod end connection, eliminating on-site adjustment and reducing commissioning time.

Applied in articulated linkage mechanisms, forging manipulators, scrap shear gate control, rolling mill guide adjustment and heavy-duty clamping fixtures.

Parameter	Value
Model	CDH1 MP5 180-90-485
Type	Mill Type Differential Cylinder Double Acting
Standard	ISO 6022 / DIN ISO 3320
Nominal Pressure	250 Bar (Static Proof 375 Bar)
Bore / Rod / Stroke	180 mm / 90 mm / 485 mm
Push Force @ 250 Bar	636.2 kN
Pull Force @ 250 Bar	477.1 kN
Mounting	MP5 Self-aligning Clevis Both Ends
Piston Rod	42CrMo forged induction-hardened chrome 30-50 um
Seal System	PU/PTFE step seal + wear rings
Ports	SAE flange ISO 6162-1 O-ring face seal
Weight (approx.)	105 kg
Test	100% factory tested with individual QC report
