868 Double Wire Mesh Security Fence – Heavy Duty Twin Wire 2D Welded Fence Panel for Perimeter Protection
6mm Vertical / 8mm Horizontal Wire | 200x50mm Mesh | 2.5m Width | 1.0-3.0m Height | HDG / Powder / PVC Coated
Get a Quote: Send height, mesh, wire spec, coating, qty, port. Reply 12h.
Product Overview
ANJIA Group supplies 868 double wire mesh security fence – a heavy duty twin wire 2D welded fence panel for perimeter protection, industrial security, sports facilities, schools and commercial properties. The "868" designation refers to the wire configuration: 8mm horizontal wires with 6mm vertical wires welded at each intersection. Available in panel heights from 1.0m to 3.0m, standard panel width 2.5m, with 200x50mm mesh openings. Hot-dipped galvanized, powder coated or PVC coated finishes provide corrosion resistance for long-term outdoor use. The twin horizontal wire design delivers exceptional rigidity, impact resistance and anti-climb protection.

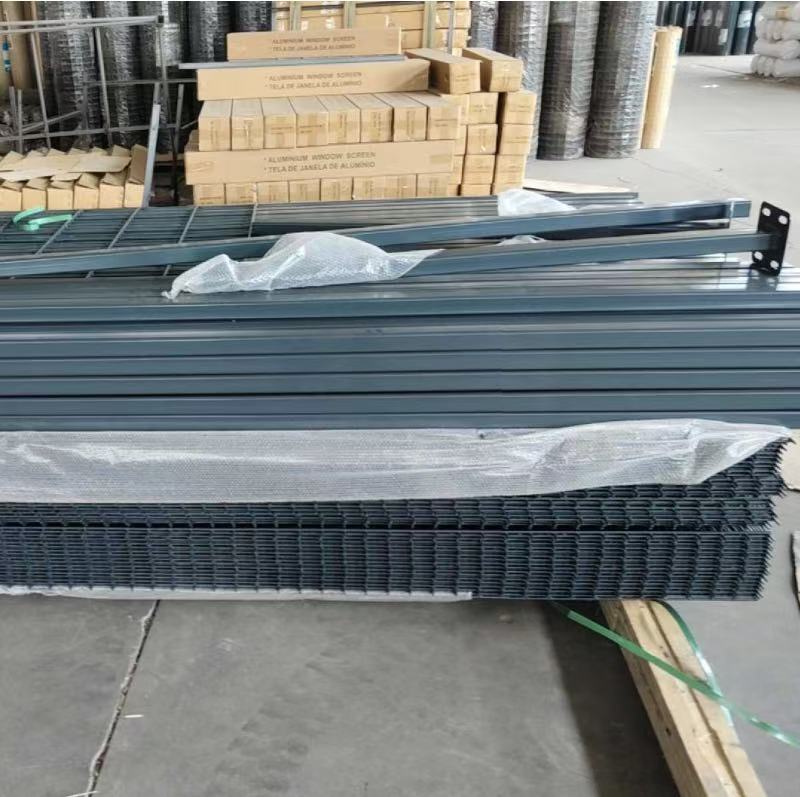

868 twin wire fence panel with post

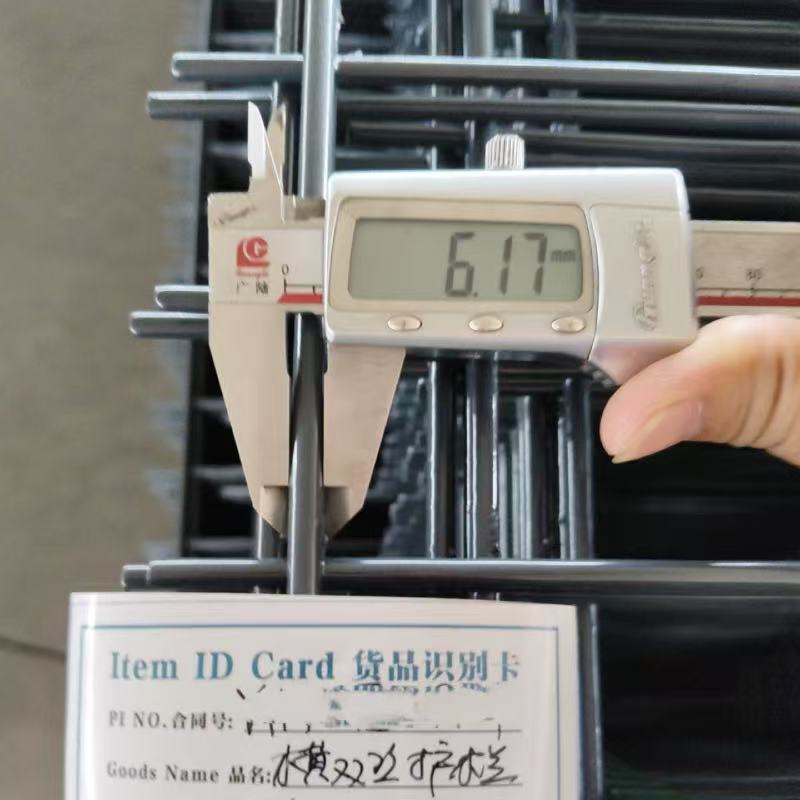

Double horizontal wire construction
868 Double Wire Fence Specifications
| Parameter | Standard Options |
|---|---|
| Product Type | 868 Double Wire Fence / Twin Wire 2D Welded Panel |
| Wire Configuration | 8/6/8 (8mm horizontal, 6mm vertical) |
| Alternative Configuration | 656 (6mm horizontal, 5mm vertical) – custom |
| Mesh Opening | 200x50mm standard |
| Panel Width | 2.5m standard |
| Panel Height | 1.0m, 1.2m, 1.5m, 1.8m, 2.0m, 2.4m, 3.0m (custom) |
| Material | High-tensile steel wire (Q235/Q195) |
| Surface Treatment | HDG, powder coated, PVC coated |
| Post Type | 60x60mm, 80x80mm, 100x100mm SHS |
| Fixing System | Clamp bars + tamper-proof bolts |
Key Advantages – 868 Twin Wire Fence
8mm horizontal wires with 6mm vertical wire provide extreme rigidity and resistance to cutting and impact.
200x50mm mesh opening denies hand and foot holds. Optional top spikes for enhanced security.
Double wire construction withstands heavy impacts and high winds compared to standard welded mesh.
HDG (65um+) or powder coating provides corrosion protection for outdoor environments.
868 Twin Wire vs Standard Welded Fence
The 868 double wire fence features twin horizontal wires (8mm) welded to a single vertical wire (6mm) at every intersection. This configuration provides significantly higher rigidity and impact resistance than standard single-wire or lower-spec welded panels. The 200x50mm mesh opening balances security with visibility, making it ideal for perimeter applications where both deterrence and surveillance are important. Available in 656 configuration (6mm horizontal, 5mm vertical) as a cost-effective alternative with good structural strength for lighter-duty applications.
Applications
Packing & Export
Packing: Steel pallets + corner protectors + waterproof film
Loading: 20GP: 200-250 panels | 40HQ: 500-600 panels
Lead Time: 15-25 days
Quality Control
Wire tensile, diameter
Weld strength, mesh accuracy
Thickness, adhesion, color
Dimension, labeling
Related Products
656 Double Wire Fence · 358 Anti-Climb Fence · 3D Welded Mesh Fence · Anti-Climb Bent Fence · Temporary Fence · Chain Link Fence
FAQ – 868 Double Wire Fence
868 refers to the wire configuration: 8mm horizontal wires (twin) with 6mm vertical wire welded at each intersection. This provides extreme rigidity and security.
868 uses 8mm horizontal wires with 6mm vertical wire (heavy duty). 656 uses 6mm horizontal wires with 5mm vertical wire (lighter duty). Both are twin wire configurations.
200x50mm is the standard mesh opening. Custom mesh sizes are available for specific security requirements.
Hot-dipped galvanized (HDG) is recommended for industrial and coastal applications. Powder coating offers aesthetic color options. PVC coating provides extra protection.
