Metallurgical oil cylinder CDH1 MF4 100-56-200

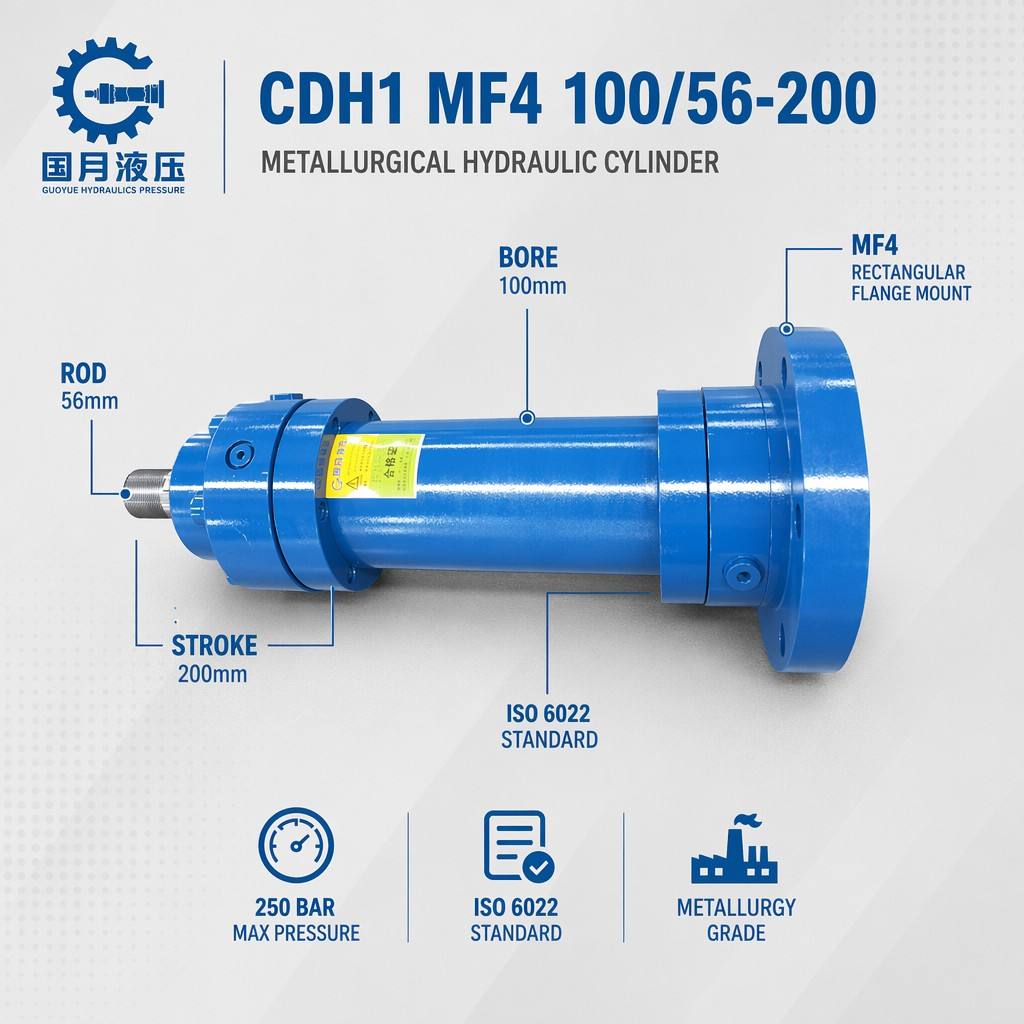

Specification: CDH1 MF4, 100mm Bore, 56mm Rod, 200mm Stroke, Rectangular Flange Mount, Metallurgical Grade Mill Type Hydraulic Cylinder

 CG series Hydraulic Cylinder, double acting mill cylinder, ISO 6022 hydraulic cylinder, heavy duty round body cylinder

MF4 rectangular flange with 4-bolt through-hole pattern, flange face flatness within 0.02mm across diagonal, no shimming required for face-mounted installations on mill housing platens.

Cylinder tube cold-drawn ST52 seamless, inside diameter honed to H8 after welding, ID surface burnish to Ra 0.3 um for reduced seal wear under frequent short-stroke cycling typical of roll gap adjustment.

End cap bolted flange design, sealed with O-ring + backup ring on spigot diameter, allowing field disassembly for seal replacement without removing the full cylinder from the mill housing.

Piston seal groove machined to ISO 5597 housing dimensions, accepting standard step seal and glide ring sets, interchangeable with aftermarket sealing elements from multiple suppliers.

Rod wiper housing fitted with snap-in metal-encased scraper, positive retention through 300 Bar back-pressure spike during mill pass direction reversal, no pop-out failure mode.

Two BSPP threaded service ports, check valve installed on rod-side port to prevent drift under suspended load when directional valve centers to tank position during emergency stop.

Applied in hot rolling mill roll gap control, tundish slide gate actuation, shear blade gap adjustment, coil car lift cylinder replacement and furnace door lift mechanisms in continuous casting plants.
