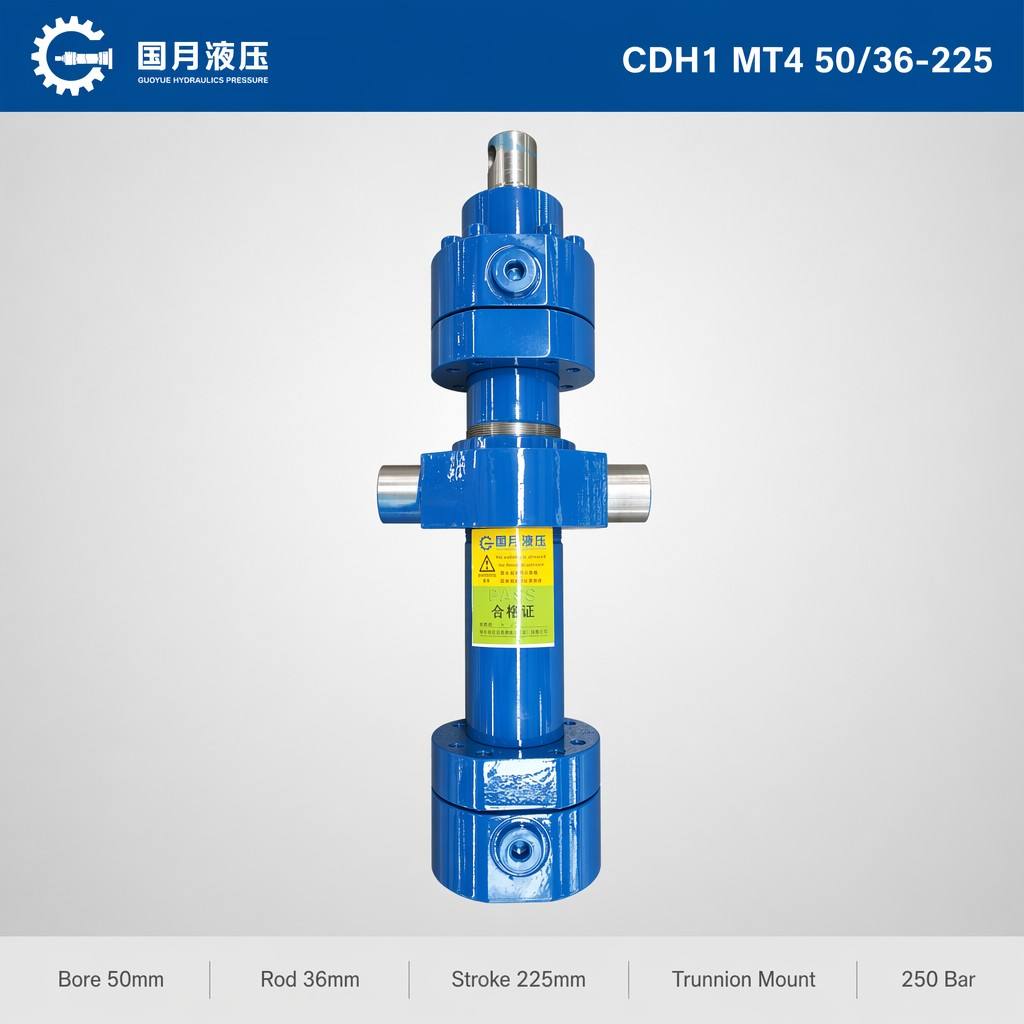

Metallurgical oil cylinder CDH1 MT4 50/36-225

Specification: CDH1 MT4, 50mm Bore, 36mm Rod, 225mm Stroke, Trunnion Mount, Compact Metallurgical Grade Mill Type Hydraulic Cylinder

CG series Hydraulic Cylinder, double acting mill cylinder, ISO 6022 hydraulic cylinder, heavy duty round body cylinder

MT4 trunnion mount with hardened steel pivot pins on both sides, pin diameter 25mm case depth 1.5mm, allowing cylinder to swing through 15-degree arc during load movement without side-loading rod bearings.

Trunnion block welded to barrel OD with full-penetration circumferential weld, post-weld stress relieved at 580 C for 2 hours, ultrasonic tested to EN 1714 acceptance class 2.

Compact bore 50mm with 225mm stroke, closed-center length under 500mm, fits into mill housing side-guard pockets where larger bore cylinders cannot be installed due to space constraints.

Piston fitted with glass-filled PTFE guide ring on full circumference, 3mm radial wall, prevents metal contact during trunnion pivot-induced barrel deflection under 49.1 kN full-load push.

Threaded rod clevis eye M24x2 standard, alternative rod end configurations available — spherical ball joint, cross-pin yoke, or metric fine thread stud — without changing cylinder envelope dimensions.

Lightweight design at 18 kg installed, one-person handling during mill maintenance shutdown, no lifting equipment required for removal and reinstallation in overhead positions.

Parameter	Value
Model	CDH1 MT4 50-36-225
Type	Mill Type Differential Cylinder Double Acting
Standard	ISO 6022 / DIN ISO 3320
Nominal Pressure	250 Bar (Static Proof 375 Bar)
Bore / Rod / Stroke	50 mm / 36 mm / 225 mm
Push Force @ 250 Bar	49.1 kN
Pull Force @ 250 Bar	23.6 kN
Mounting	MT4 Trunnion Mount (Pins 25mm H8)
Trunnion Weld	Full-penetration stress-relieved UT tested
Rod End	M24x2 threaded clevis eye
Piston Guide	Glass-filled PTFE 360-degree ring
Weight (approx.)	18 kg
Test	100% factory tested with individual QC report
