non woven sleeve machine
2 week ago
Details

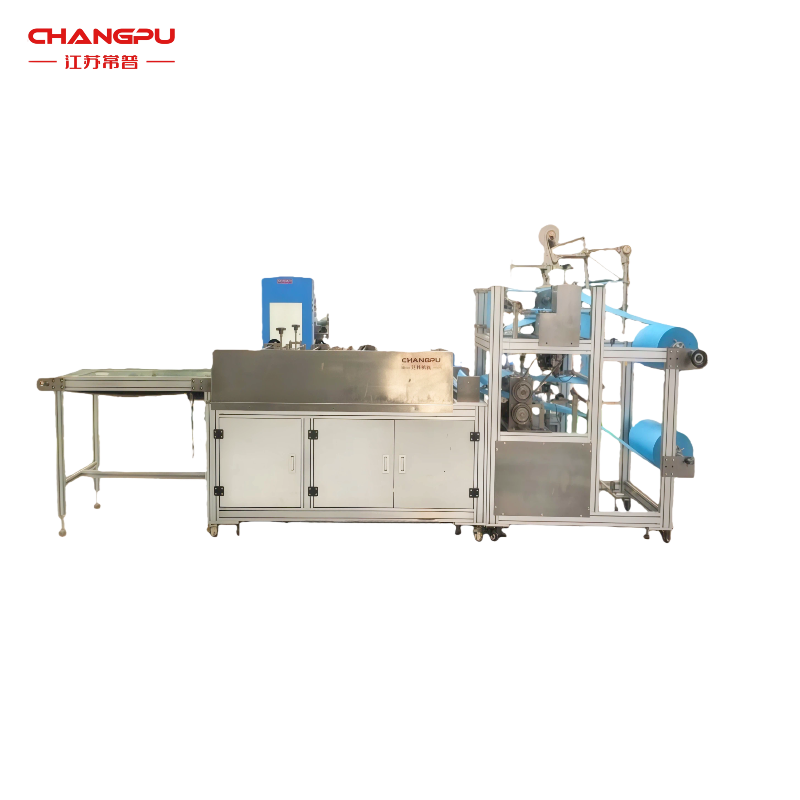

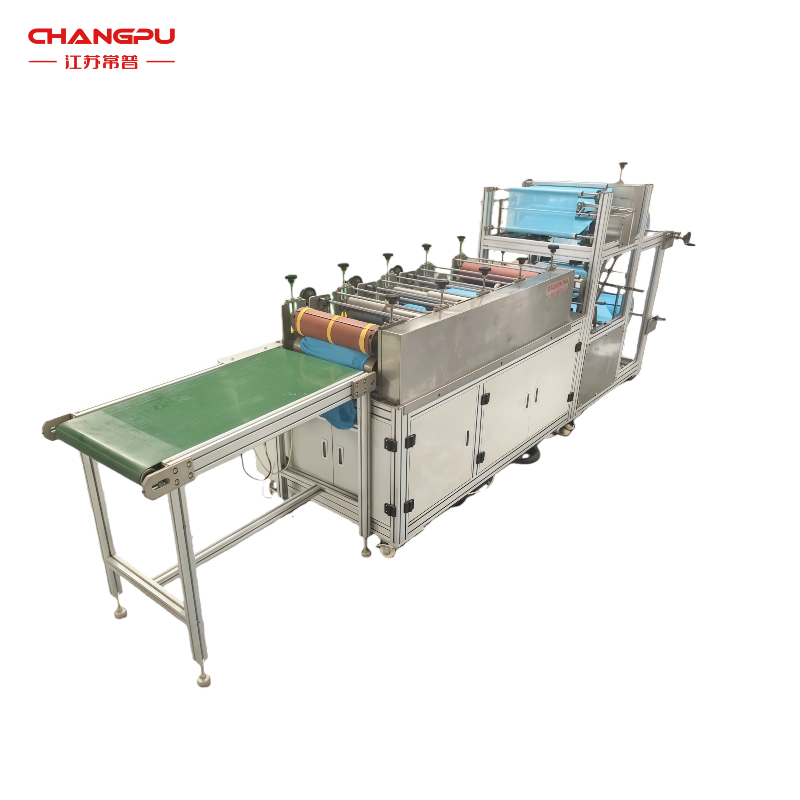

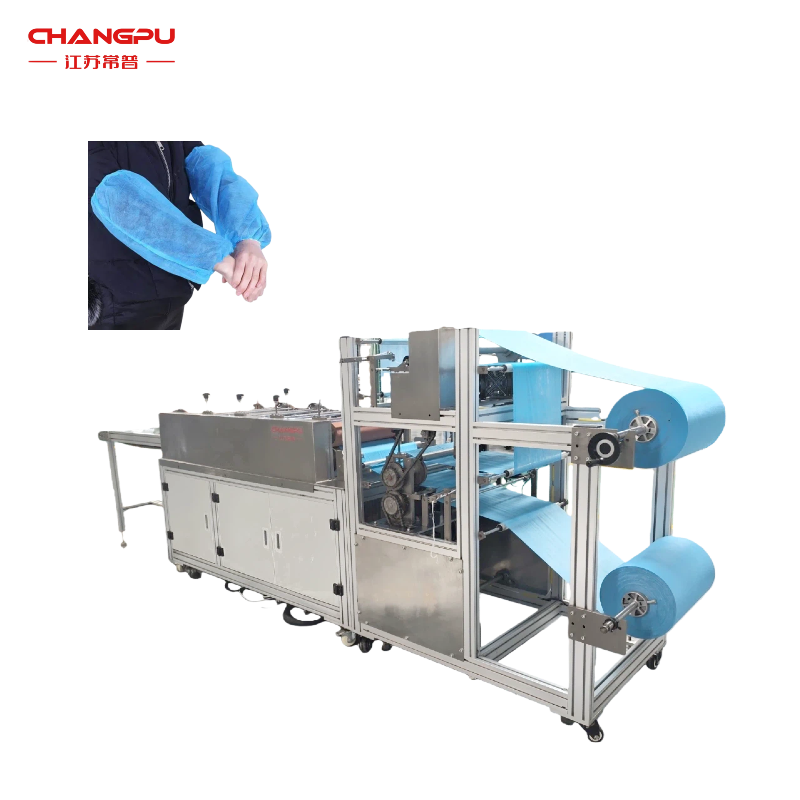

Non woven sleeve cover machine is specially designed for the efficient production of non-woven sleeves weighing less than 80g. Boasting the advantages of superior quality, high output and low cost, it can completely replace manual production.
This automated equipment realizes a fully automated workflow from raw material feeding to finished product counting. Its core adopts high-power ultrasonic welding technology combined with electrothermal bonding, which accurately fixes both ends of the sleeves and the elastic bands.
Technical Parameters
|
Working Power Supply |
220V/380V |
|
Input Power |
4.5KW |
|
Output Frequency |
20KHZ |
|
Running Speed |
90–120 pieces/minute |
|
Sleeve Dimensions |
450×200mm (Other dimensions customizable) |
|
Machine Dimensions (L×W×H) |
3200*1250*1500mm |
|
Net Weight |
1000KG |
|
Model |
CP-SL |
