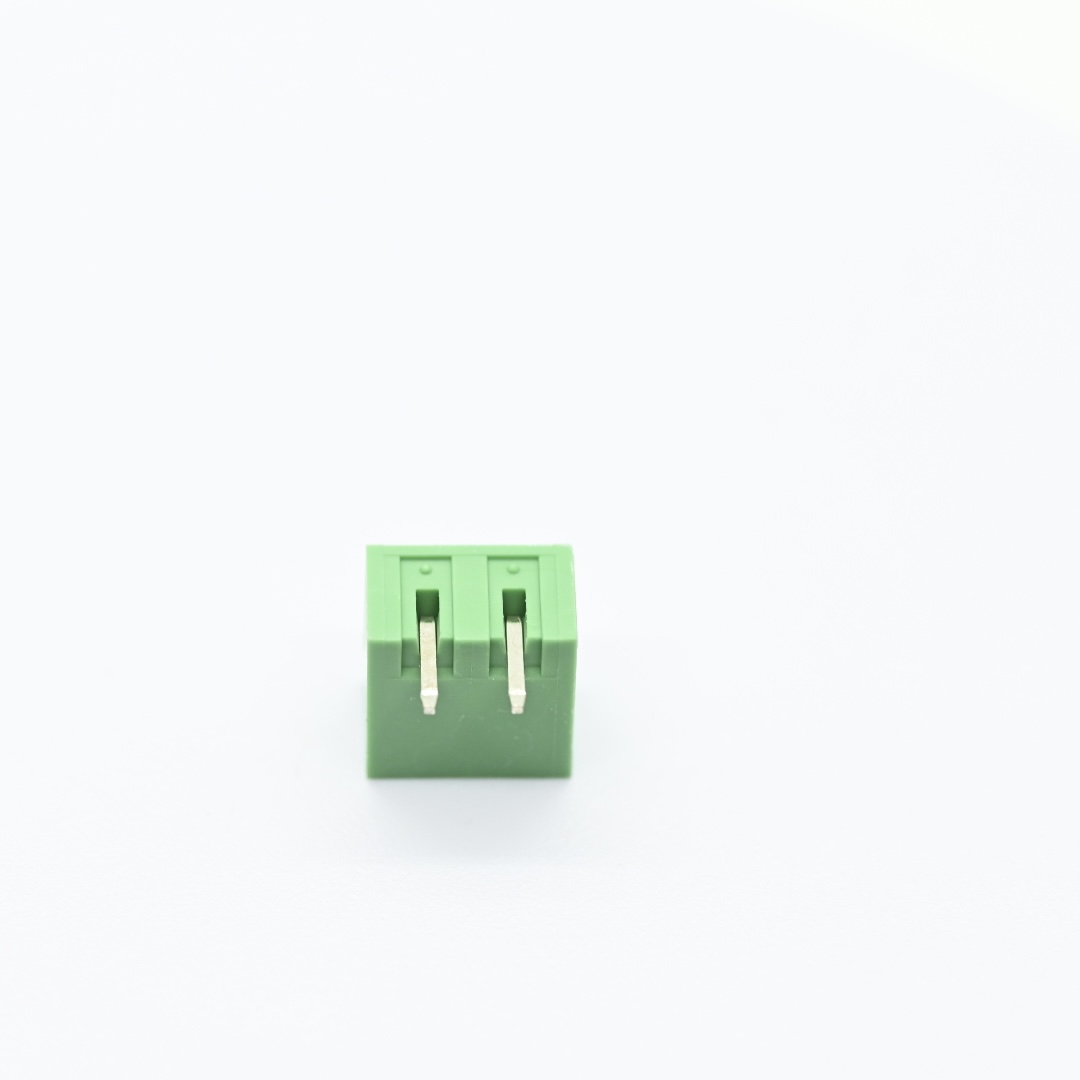

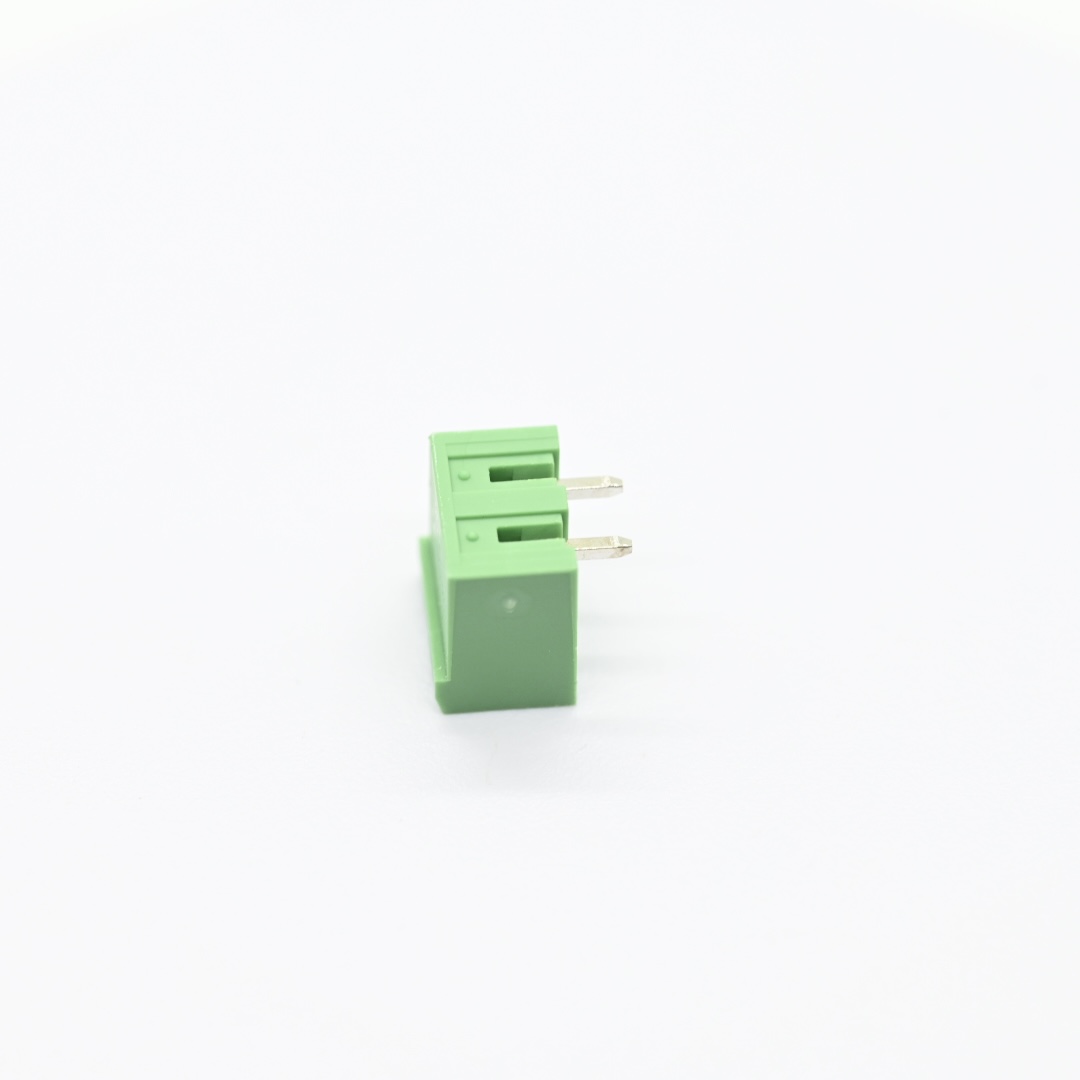

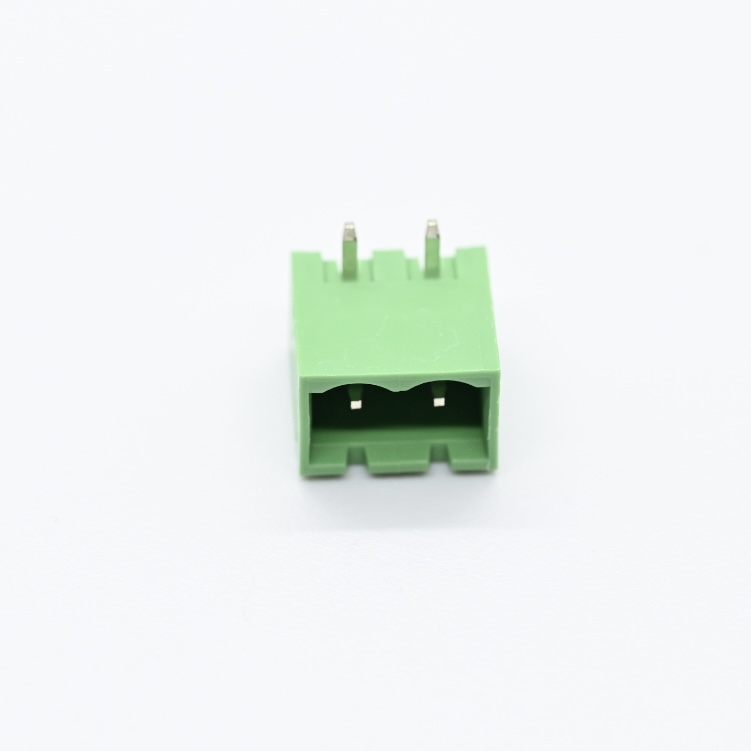

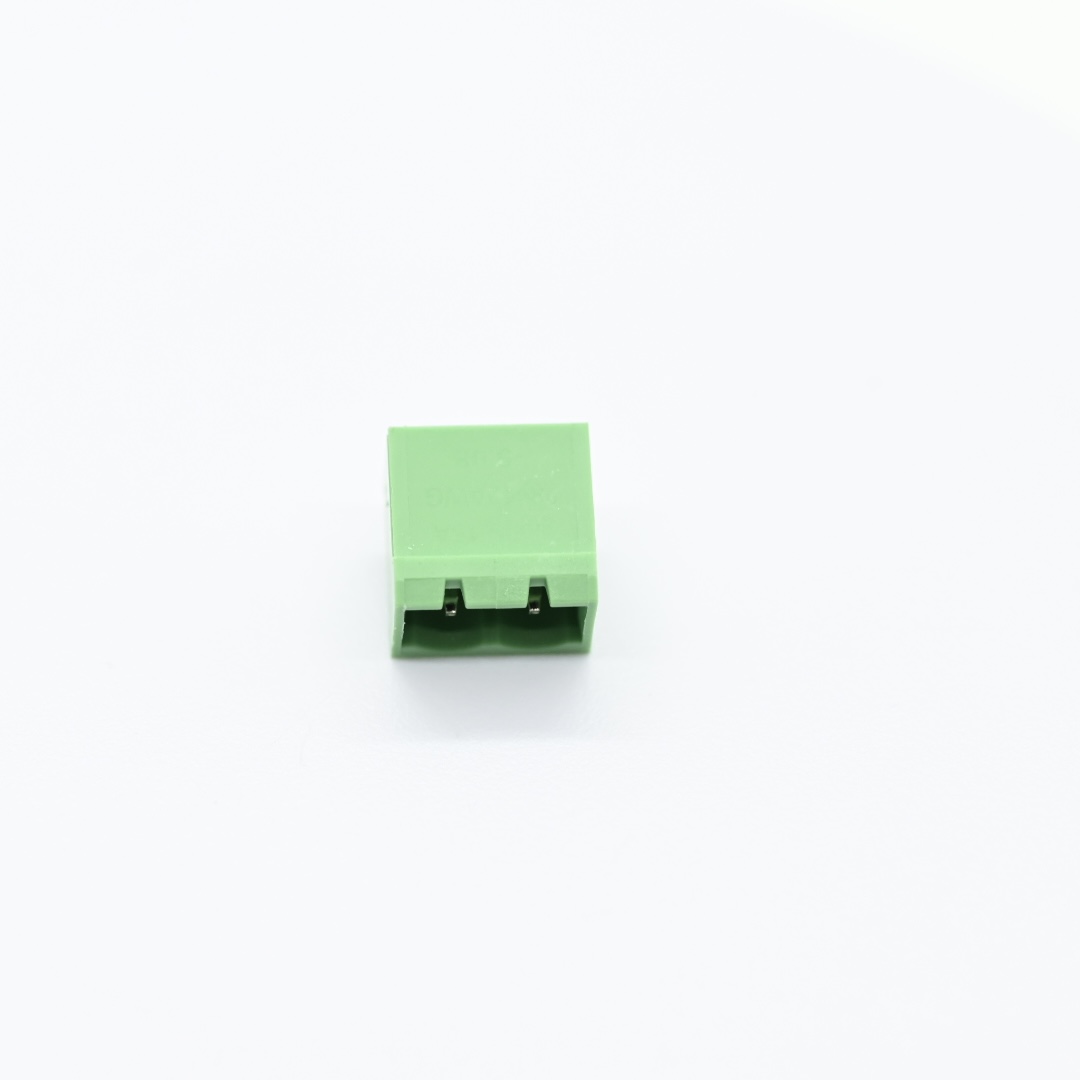

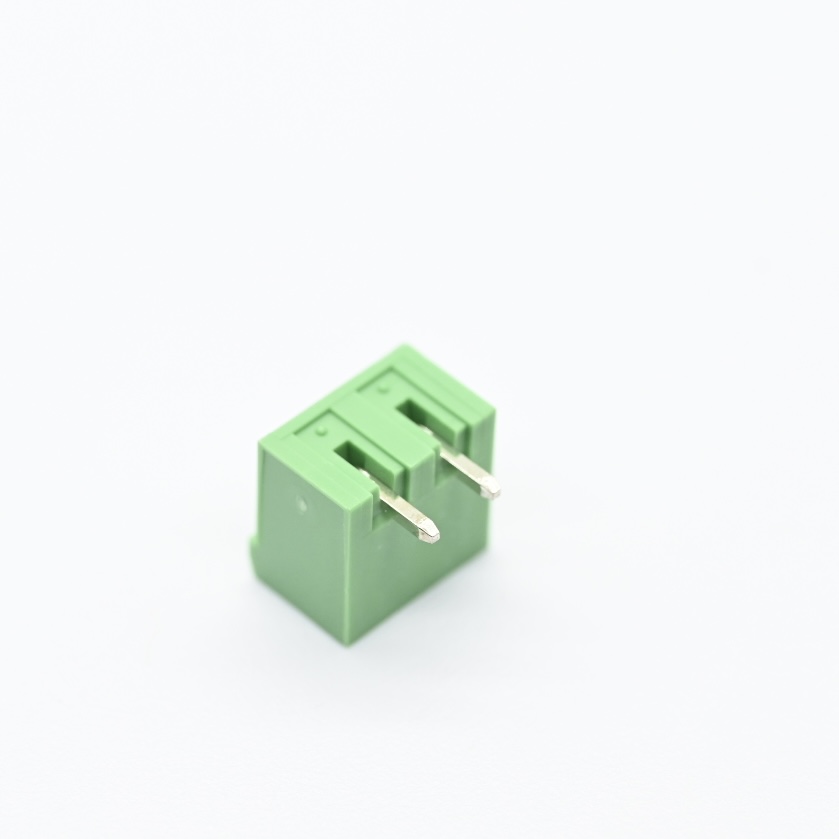

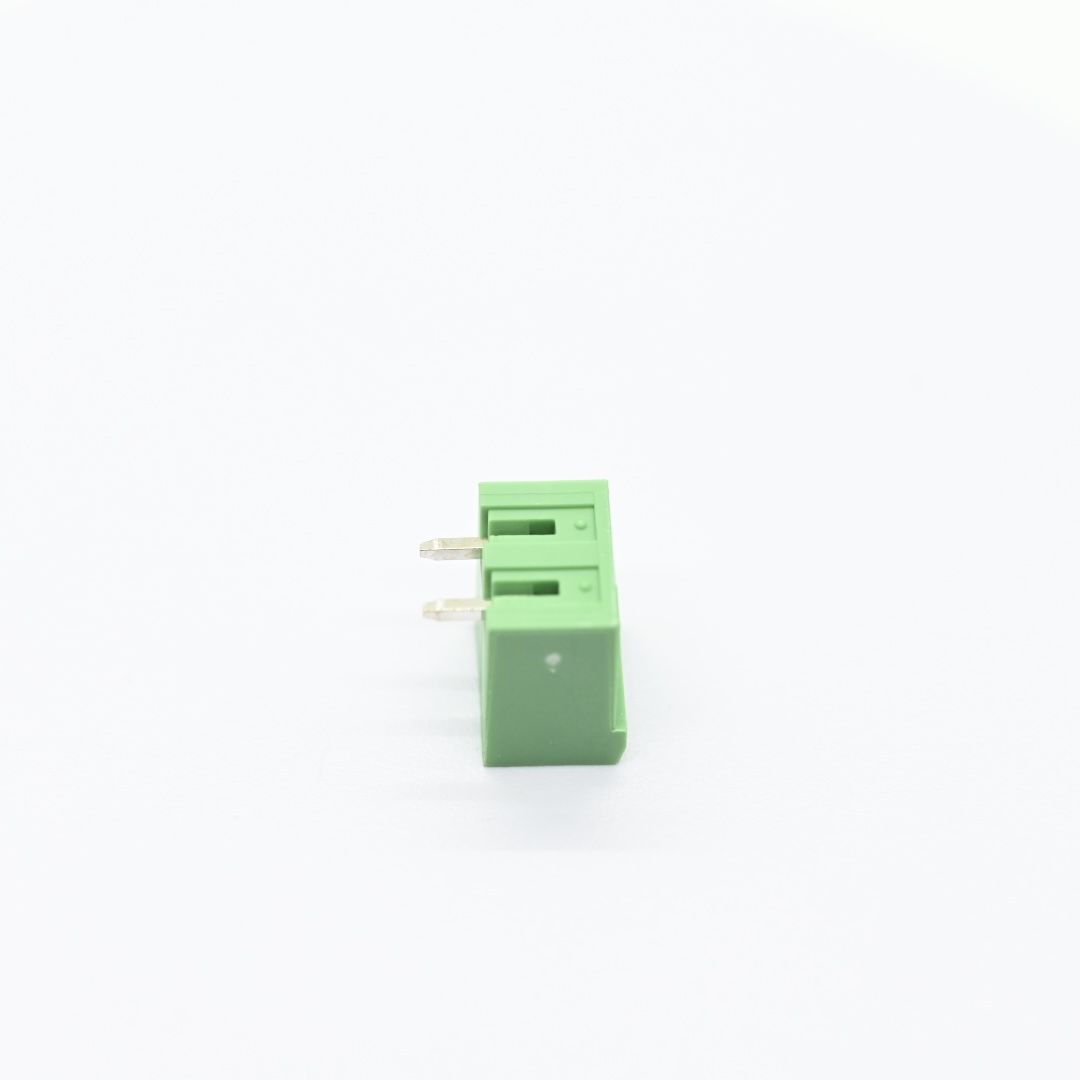

5.0/5.08mm Right Angle Plug-in Terminal Block

1、Product Description

Manufactured by Huizhou Antenk Electronics Co., Ltd, the AT2500R series Plug-in Terminal Block Close Right-Angle Pitch 5.0/5.08 is a right angle detachable wiring connector engineered for convenient side wiring and PCB layout optimization. Every production procedure strictly abides by the dimensional tolerances marked on official engineering drawings. Its insulating housing is composed of PA66 material filled with 23 percent glass fiber, compliant with UL94V-0 flame retardant standard, which delivers excellent insulation performance and high temperature resistance during wave soldering and long time running. Internal conductive terminals are brass components with full tin plating, rated at 300V voltage and 12A current to ensure steady power and signal transmission. This product series supports 2 to 24 poles and two different insertion heights, alongside multiple optional insulator colors to distinguish various circuit loops. Our standardized production flow consists of self-developed mold design, high temperature plastic injection molding, brass terminal precision stamping, anti-oxidation tin electroplating, automated component assembly and finished full dimensional inspection. Advanced Japanese and Taiwanese production machines guarantee uniform pitch size and stable plugging force in mass production, and all raw materials comply with EU RoHS and REACH environmental protection standards.



This right angle plug-in terminal block features easy and intuitive operation steps for wiring assembly. Users fix stripped wire conductors into the female matching socket first, then horizontally plug the right angle male terminal block onto printed circuit boards to form detachable electrical connection circuits. The close right angle structural design greatly adapts to limited side installation space inside electronic devices. It is widely adopted in industrial control cabinets, miniature switching power supplies, household electrical appliances, communication power distribution equipment and precision testing instruments. During daily application, users are prohibited from applying current exceeding 12A rated value to avoid overheating burnout. Rough frequent plugging and unplugging shall be avoided to prevent plastic housing breakage and terminal bending deformation. Unused terminal blocks need to be preserved in dry sealed surroundings to prevent tin plating layer oxidation. Most product specifications pass UL certification numbered E472792, and our factory has acquired ISO9001, ISO14001 and IATF16949 automotive quality management certifications.



In comparison with other terminal block manufacturers in the industry, Antenk independently develops and owns more than 250 sets of plastic injection molds and 180 sets of precision metal stamping molds, enabling flexible customization of pole counts, pin heights, housing colors and plating thickness for this dual pitch right angle terminal block series. Our 10000 square meter manufacturing plant employs 250 professional staff members, equipped with over 180 automatic assembly machines and 20 sets of professional testing equipment, which ensures consistent batch quality and punctual delivery for large overseas export orders. As a brand granted Guangdong Famous Trademark honor, more than 70 percent of our electronic connectors and terminal blocks are exported worldwide covering Europe, America, Southeast Asia and South America. We offer small batch orders for standard models without extra mold opening charges.



We carry out comprehensive full-process quality inspection for every batch of right angle plug-in terminal blocks, including incoming raw material inspection, real time monitoring of injection molding, stamping and electroplating processes, finished dielectric voltage withstand testing, plug retention force testing and long-term salt spray corrosion testing. Each finished batch is attached with complete production lot traceability records for quality tracking. Strict multi-layer inspection significantly improves long-term connection stability and anti-vibration capability, effectively reducing circuit faults caused by poor contact and loose wiring. We provide free product samples, detailed CAD drawings and 24 hour online technical support for all global buyers, helping us build stable and long-term trusted cooperative partnerships with electronic manufacturers all over the world.

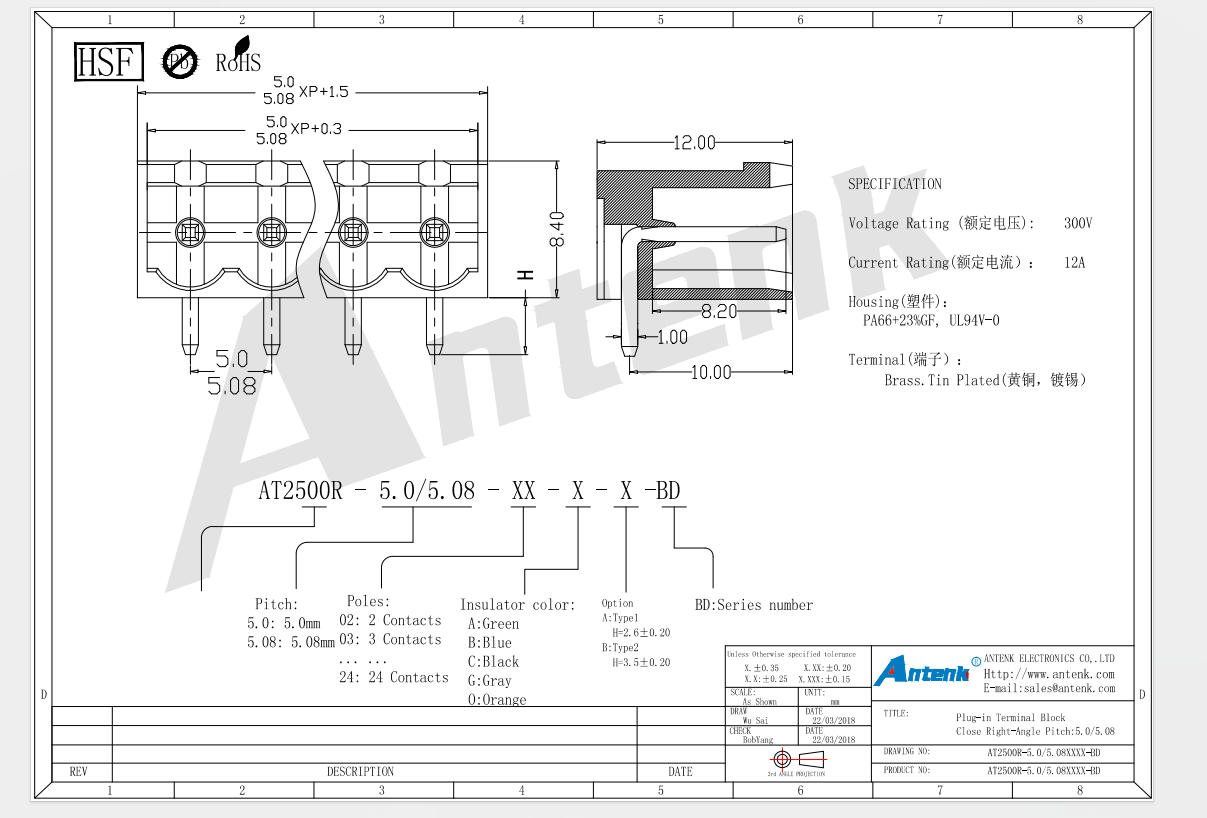

3、Product Drawing
