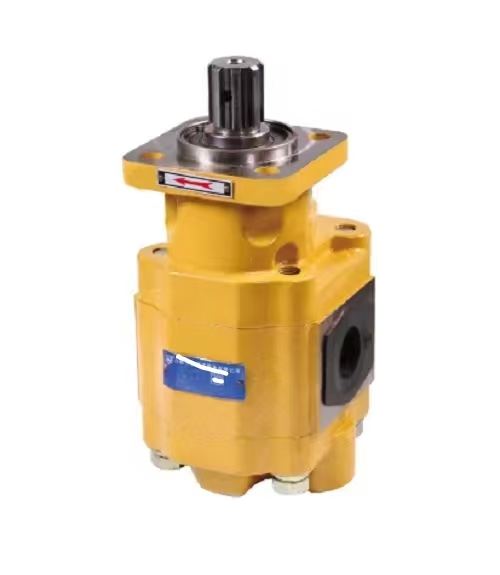

CBGTC2 External Meshing Gear Oil Pump
1. Product Overview
CBGTC2 is a medium high pressure external meshing hydraulic gear pump developed for mobile equipment and compact hydraulic system. This hydraulic gear pump adopts high-strength cast iron housing and precision machined gear groups with C2 grade specification. It combines compact overall dimensions and reliable pressure performance, perfectly adapting to frequent start-stop and fluctuating load conditions of construction machinery. Widely used as main oil supply and pilot pump for small loaders, sanitation vehicles, agricultural machines, forklifts and hydraulic power units. Standard installation dimensions allow direct interchange with original OEM pumps for easy replacement.
Model Code Definition
CBGTC2: CBGT series gear pump, C2 stands for pressure grade and standard flange port arrangement.
2. Main Technical Parameters
Item Specification
Pump Type External meshing hydraulic gear pump
Rated Working Pressure 20 MPa
Max Intermittent Peak Pressure 25 MPa
Rotational Speed Range 600 ~ 3000 rpm
Internal Structure Floating side plate axial clearance compensation, radial hydraulic balance structure
Standard Seals HNBR nitrile rubber; FKM high temperature resistant seals optional
Applicable Hydraulic Fluid ISO VG46, VG68 anti-wear hydraulic oil
Operating Temperature -20℃ ~ +90℃
Mounting Form Standard diamond flange
Volumetric Efficiency ≥91%
3. Working Principle
Driven by the input shaft, the pair of external gears rotates synchronously. Negative pressure is generated in the suction cavity and draws hydraulic oil from the reservoir. The gear teeth carry oil to the pressure outlet and deliver pressurized fluid to each circuit of the hydraulic system. The floating side plates automatically compensate the wear clearance on gear end faces under system pressure, reduce internal leakage significantly, and keep the hydraulic gear pump stable and efficient during long continuous operation.
4. Core Advantages
1. Compact cast iron structure, small volume for limited installation space.
2. Floating side plate design minimizes internal leakage and maintains stable volumetric efficiency.
3. Optimized gear tooth profile realizes low noise and low flow pulsation during operation.
4. Good contamination resistance, suitable for dusty outdoor working environment.
5. Standard flange and oil port layout, plug-and-play installation without pipeline modification.
6. Simple structure with low failure rate, convenient for maintenance.
5. Application Range
This hydraulic gear pump is extensively applied in the hydraulic system of mini wheel loaders, road sweepers, garbage trucks, harvesters and industrial forklifts, providing power for main working circuit and auxiliary steering circuit.
6. Common Faults & Replacement Advice
Replace the complete pump assembly if these faults appear: insufficient system pressure, slow movement of hydraulic actuators, oil leakage on shaft seal and mating surface, abnormal grinding noise inside pump body.
