CO2 Laser Power Supply Testing and Aging Process Before Shipment
7 day ago

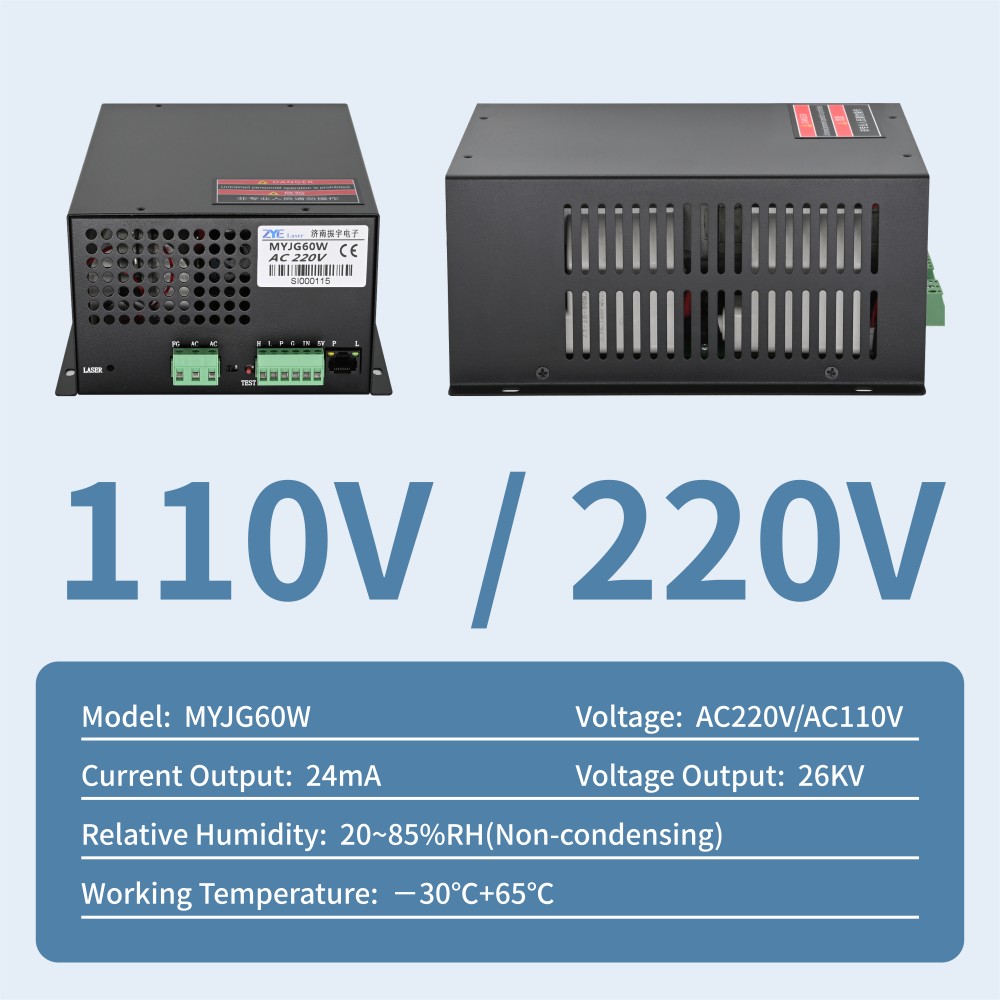

| Specification | Details |
|---|---|
| Product Model | MYJG60W |
| Rated Application | 60W CO2 laser equipment |
| Input Voltage Options | AC110V / AC220V |
| Input Frequency | 47–440Hz |
| Maximum Output Voltage | 26kV |
| Maximum Output Current | 24mA((Depending on the laser tube manufacturer)) |
| Cooling Method | Fan cooling |

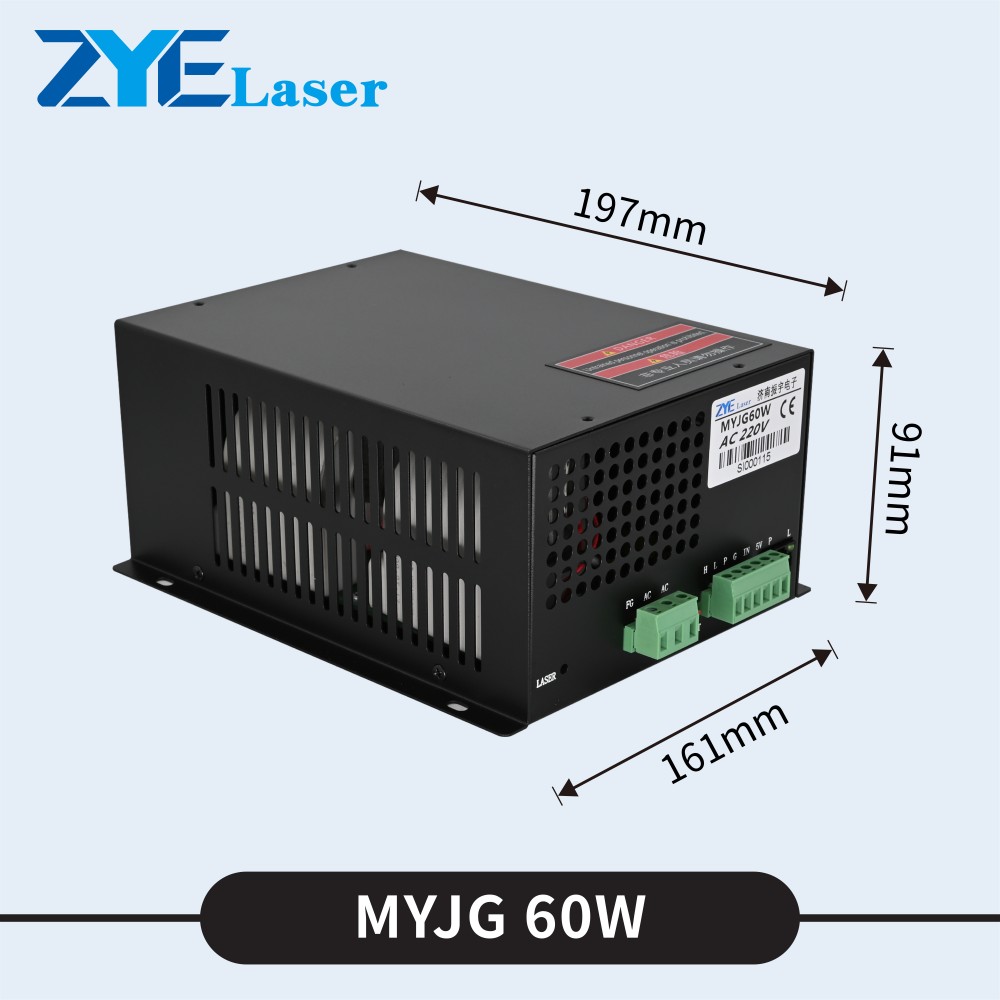

| Dimensions | 197 × 161 × 91mm |
| Operating Temperature | −30°C to +65°C |
| Relative Humidity | 20–85% RH, non-condensing |
Information Required for Model Matching
To confirm whether this MYJG60W power supply is suitable for a new machine or replacement project, please provide the following information:
Rated power and model of the CO2 laser tube
Required AC input voltage
Model and label photograph of the existing power supply

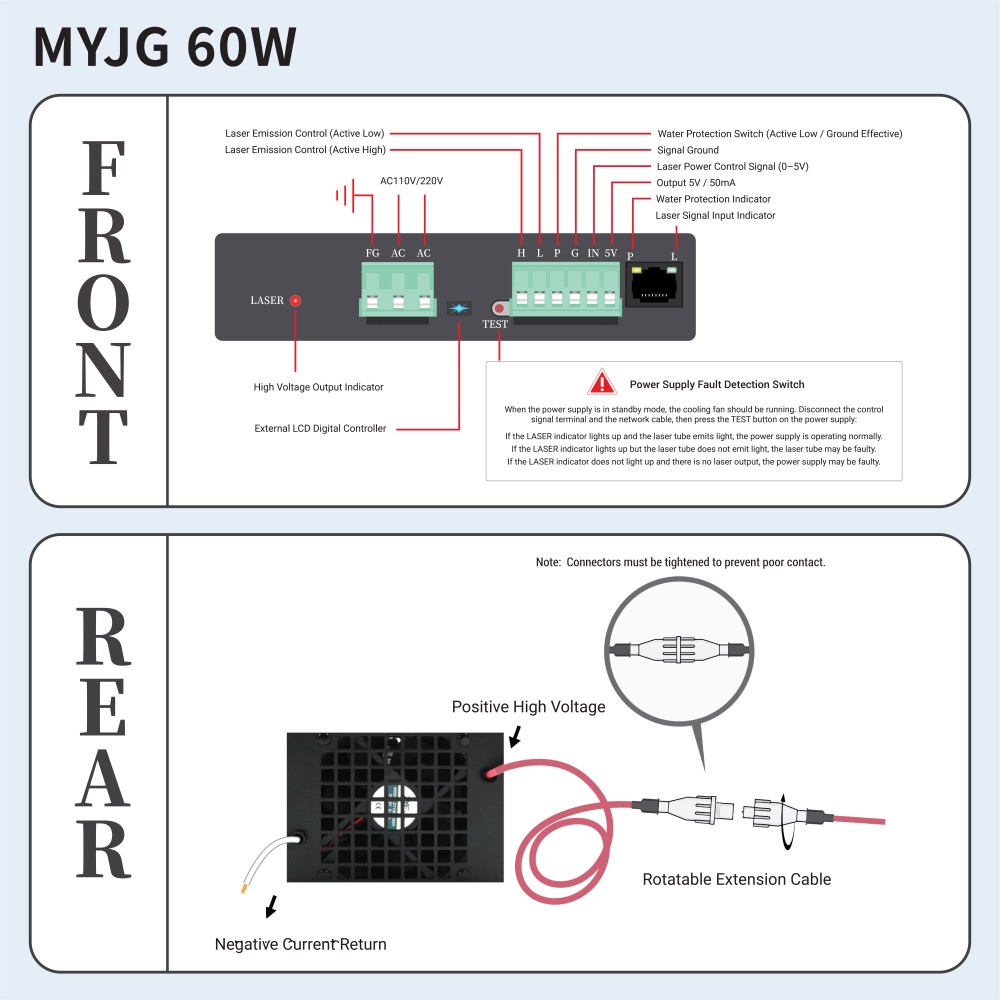

Photographs of the control terminals and high-voltage connection
Available installation space inside the machine
Required current-display configuration, if applicable
Checking these details before ordering helps prevent voltage, interface and installation mismatches.
Installation and Safety Notes
The MYJG60W is a high-voltage power supply. Installation, wiring, testing and maintenance must be carried out by qualified personnel.
Disconnect the AC input before installation or maintenance.
Confirm the AC input voltage before energizing the power supply.
Make sure the power supply and laser machine are properly grounded.
Keep the high-voltage connection insulated and away from the metal enclosure.
Tighten the connectors to prevent poor contact.
Do not touch the output connection while the unit is energized.
Support from Jinan Zhenyu Electronics
Jinan Zhenyu Electronics Co., Ltd. (ZYE Laser)develops and supplies CO2 laser power supplies for laser equipment manufacturers, parts distributors and machine maintenance providers.
For MYJG60W selection, customers can send the laser tube information, machine voltage and existing wiring photographs for model and interface confirmation. This is especially important when replacing a power supply from an older machine.
Frequently Asked Questions
Q1: Is the MYJG60W available for both AC110V and AC220V?
AC110V and AC220V input options are shown in the available product information. Confirm the required input version when sending an inquiry or placing an order.
Q2: Can I use this power supply to replace my current 60W unit?
Replacement suitability depends on the input voltage, laser tube power, control terminal arrangement, high-voltage connection and installation dimensions. Please send photographs of the existing power supply before ordering.
Q3: Does the power supply include an LCD current display?
An external LCD current controller is shown as an available display option. The required display configuration and included components should be confirmed for each order.
Q4: What are the dimensions of the MYJG60W?
The dimensions shown in the supplied product information are 197 × 161 × 91mm. Allow additional space for wiring, connectors and ventilation.
Q5: Who should install the power supply?
Because this is a high-voltage unit, installation and testing should only be performed by qualified personnel familiar with CO2 laser equipment.
Confirm the MYJG60W Configuration
For model matching or a quotation, please send us your laser tube power, required input voltage, existing power supply model and clear photographs of the connectors. We will check the configuration before confirming the MYJG60W power supply.
Contact Jinan Zhenyu Electronics for MYJG60W model selection and quotation.
