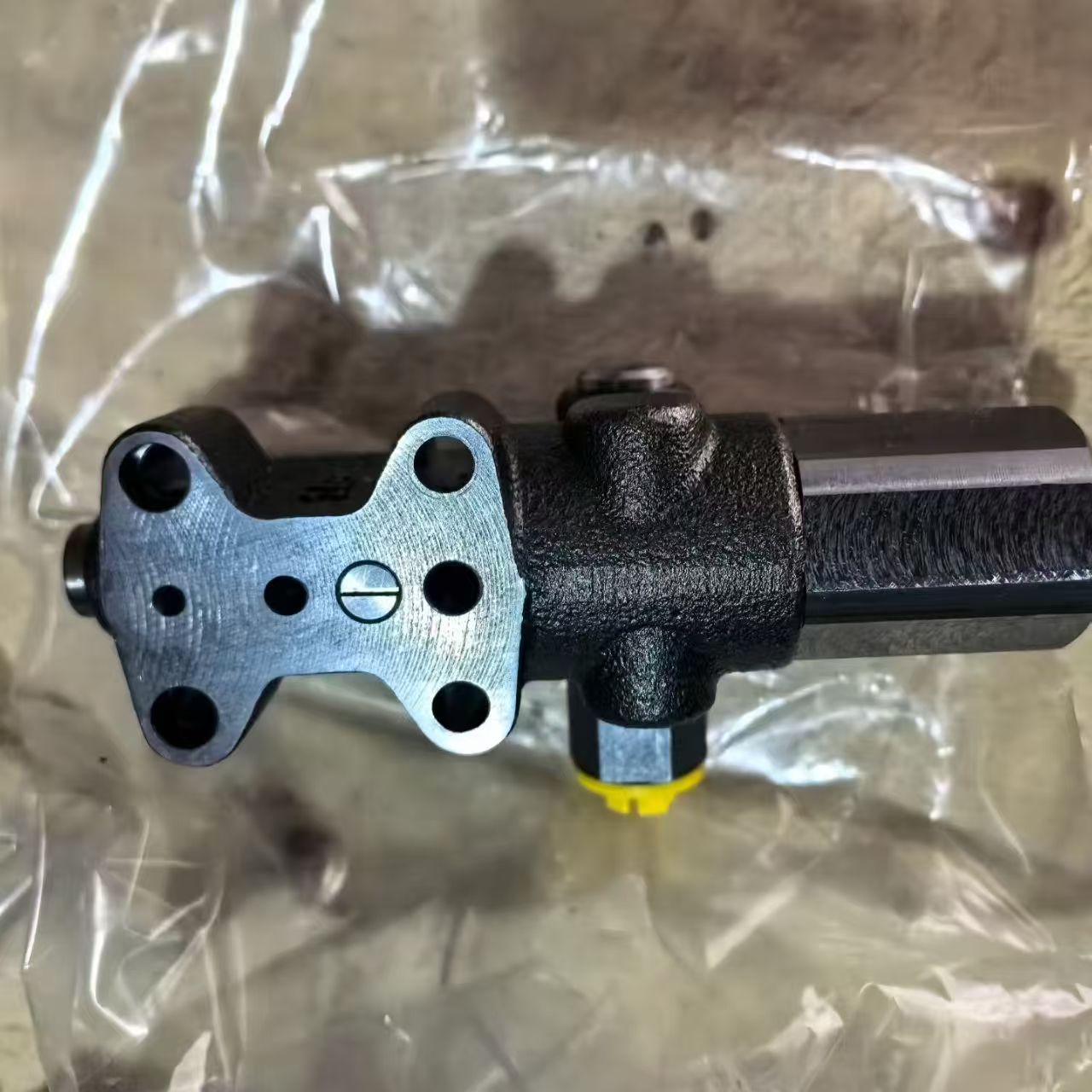

DRS Valve Solution for Pump Applications
2 week ago
Product details
Core Functions of DRS Valve in Pump Mounting
1. Pressure Regulation
• The DRS Valve utilizes an internal spring-and-piston mechanism to automatically adjust its opening based on system pressure, maintaining stable outlet pressure. For example, in hydraulic pump systems, it redistributes flow during load variations to prevent pressure surges or drops, protecting both the pump and downstream equipment.
• Certain models (e.g., Rexroth A11VO series DRS valves) integrate constant-pressure and constant-power functions, dynamically adjusting the pressure-flow curve according to pump speed and load for optimized energy efficiency.
2. Flow Control
• The valve limits the pump’s maximum flow rate to avoid system overload. For instance, in concrete pump trucks, it regulates hydraulic oil flow to ensure stable pumping speed, preventing pipeline vibrations or equipment damage caused by sudden flow changes.
3. Protection Features
• Overpressure Protection: Automatically opens to relieve pressure when system pressure exceeds set limits, preventing pump or pipeline rupture.
• Anti-Cavitation: Maintains minimum suction pressure to avoid cavitation inside the pump, extending its service life.
• Bidirectional Sealing: Some valves (e.g., three-way ball valves) support bidirectional fluid flow, protecting the pump from reverse pressure shocks.
------
Typical Applications
1. Construction Machinery
• Concrete Pump Trucks: DRS valves control hydraulic pump flow and pressure for smooth pumping, reducing pipeline vibrations.
• Road Rollers: Regulate hydraulic oil flow in vibration pump systems to control compaction frequency and improve efficiency.
• Excavators: Stabilize main pump outlet pressure for precise and responsive operation.
2. Industrial Equipment
• Aluminum Extrusion Presses: Control hydraulic system pressure to ensure stable pressing force, preventing material deformation or equipment overload.
• Ceramic Presses: Precisely regulate pressure during high-pressure molding to avoid product cracking or equipment damage.
3. Mining & Marine
• Coal Mining Machines: Manage hydraulic support pressure for safe operations.
• Marine Hydraulic Systems: Stabilize steering gear or deck machinery pressure for reliable performance.
------
Key Selection Criteria
1. Pressure and Flow Matching
• Choose valve specifications based on the pump’s rated pressure and flow. For example, the Rexroth A11VO190LRDU2 valve suits high-pressure, large-flow applications (e.g., concrete pump trucks), while the A10VSO71DRS valve is ideal for medium-pressure systems (e.g., small presses).
2. Media Compatibility
• Ensure valve materials (e.g., body, seals) resist corrosion for compatibility with hydraulic oil, water-based fluids, or other media. For example, PTFE-lined valves are suitable for corrosive liquids.
3. Control Methods
• Manual Control: Cost-effective for simple systems but offers limited precision.
• Electric Control: Uses motors to drive valve opening, enabling remote adjustment and automation (e.g., AUMA electric actuators).
• Proportional Control: Integrates proportional solenoids for continuous pressure/flow regulation (e.g., Rexroth A11VO series electro-hydraulic valves).
4. Mounting Options
• Pipe-Mounted: Directly installed in pipelines; simple but requires system shutdown for maintenance.
• Plate-Mounted: Secured via flanges or threads to valve blocks for easy integration and modular design.
• Stack-Mounted: Multiple valves stacked on manifolds to save space and simplify piping.
------
Installation & Maintenance Guidelines
1. Installation Precautions
• Correct Orientation: Ensure inlet/outlet directions align with fluid flow to avoid functional failure.
• Pipeline Cleaning: Flush pipelines before installation to prevent debris from damaging internal components.
• Support Fixing: Use supports for large-flow valves to prevent vibration-induced loosening.
2. Maintenance Recommendations
• Regular Inspections: Check sealing, spring tension, and piston flexibility every six months; replace worn parts promptly.
• Filter Cleaning: Clean integrated filters (if applicable) to prevent clogging.
• Lubrication: Lubricate gears and bearings in electric actuators periodically for smooth operation.
