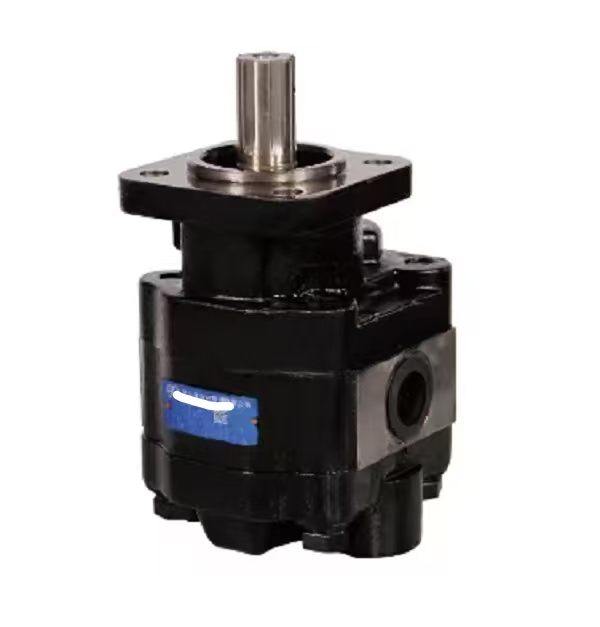

CBZTC2 External Gear Pump

CBZTC2 External Gear Pump



1. Product Overview



The CBZTC2 is a heavy-duty high-pressure external hydraulic gear pump developed by Changyuan Hydraulic (HCHC), specially engineered for rigorous mobile machinery hydraulic system. This hydraulic gear pump adopts high-strength ductile cast iron housing, paired with nitrided high-precision gear sets and DU self-lubricating bearing assembly. Equipped with floating side plate axial clearance compensation and full radial hydraulic balance structure, this model with C2 pressure grade features outstanding pressure resistance, anti-vibration performance and excellent contamination resistance. It can run stably under continuous heavy load and frequent pressure impact conditions. Widely used as main pressure supply pump and pilot pump for wheel loaders, compact excavators, municipal sanitation trucks, agricultural harvesters and stationary hydraulic power units. With standardized SAE diamond flange dimensions, it can fully replace original OEM pumps for aftermarket maintenance directly without modification.



Model Code Explanation



- CBZT: Heavy-duty high pressure gear pump series

- C2: Pressure grade specification with reinforced structure and standard flange port layout



2. Main Technical Parameters



Item Specification

Pump Type External meshing hydraulic gear pump

Rated Continuous Pressure 23 MPa

Maximum Intermittent Peak Pressure 28 MPa

Rotational Speed Range 600 ~ 3200 rpm

Internal Structure Floating side plate automatic clearance compensation, full radial balance, DU bushing

Standard Seals HNBR nitrile rubber; FKM high temperature resistant seals optional

Applicable Hydraulic Fluid ISO VG46, VG68 anti-wear hydraulic oil

Operating Temperature Range -20℃ ~ +90℃

Mounting Form Standard diamond flange

Volumetric Efficiency ≥92% at rated working condition

Shaft Type Key shaft or spline shaft optional



3. Working Principle



Driven by the input shaft, two meshing gear groups rotate synchronously. Negative pressure forms in the suction cavity and draws hydraulic oil from the reservoir. Gear teeth convey hydraulic fluid to the pressure outlet and deliver pressurized oil to all branches of the hydraulic system. The floating side plates automatically compensate axial wear clearance caused by long-term operation, greatly reducing internal leakage and enabling the hydraulic gear pump to maintain high efficiency even after thousands of working hours. The radial balance structure minimizes gear side load, extending the service life of bearings and gear components.



4. Core Advantages



1. High rigidity ductile iron pump body, excellent resistance to pressure shock and vibration, suitable for harsh construction working sites.

2. Floating side plate plus DU self-lubricating bushing design, low internal leakage and long service life.

3. Optimized gear tooth profile realizes low noise and small flow pulsation during operation.

4. Superior anti-pollution performance, good resistance to dust and dirt in outdoor environments.

5. Standard flange and oil port arrangement, plug-and-play installation without pipeline modification.

6. Compact integrated structure, easy disassembly and convenient field maintenance.

7. Wide speed range, stable performance under both low-speed heavy load and high-speed working conditions.



5. Application Range



This hydraulic gear pump serves as core power component in hydraulic system of wheel loaders, road rollers, compact excavators, garbage compactors, road sweepers, harvesters and large forklifts, used for main circuit oil supply and pilot control circuit.



6. Common Faults & Replacement Suggestion



Replace the whole pump assembly if these problems occur: insufficient system pressure, slow movement of hydraulic actuators, oil leakage at shaft seal and mating surface, abnormal metal grinding noise inside pump body, obvious temperature rise caused by internal leakage.
