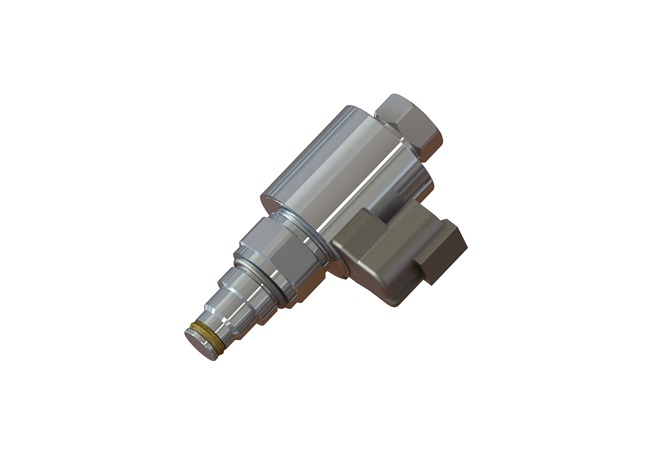

Solenoid Proportional Threaded Cartridge Valve

7 day ago

0 0 

4 year

Product details

The hydraulic electromagnetic proportional valve is an advanced hydraulic control component. It receives analog electrical signals through an electromagnetic coil and proportionally regulates the pressure, flow rate, or direction of a hydraulic system to achieve precise control. Unlike traditional on-off valves, proportional valves can continuously adjust output parameters based on the magnitude of the input signal, enabling fine-grained control over hydraulic systems.

Working Principle

The core of a hydraulic electromagnetic proportional valve is the proportional solenoid, which alters the magnetic field strength according to the magnitude of the input current signal, thereby driving the valve spool to move continuously between different positions. The position of the valve spool determines the flow rate of hydraulic oil through the valve port or the system pressure. Therefore, by varying the input current, continuous adjustment of the output pressure or flow rate of the hydraulic system can be achieved.

Key Features

• Continuously Adjustable: Capable of stepless adjustment based on changes in the input signal, enabling precise control over pressure or flow rate.

• Fast Response: The proportional solenoid responds quickly, facilitating dynamic control of the system.

• High Control Accuracy: Through closed-loop control and sensor feedback, high-precision control can be achieved, reducing system errors.

• Versatile Functions: Depending on application requirements, it can be classified into different types such as proportional pressure valves, proportional flow valves, and proportional directional valves.

Application Areas

Hydraulic electromagnetic proportional valves are widely used in hydraulic systems requiring precise control, such as:

• Construction Machinery: Enabling precise motion control in excavators, loaders, and other equipment.

• Industrial Automation: Regulating speed and pressure in CNC machine tools, injection molding machines, and other equipment.

• Marine and Aviation: Used for stabilizing hydraulic control in complex systems.

• Hydraulic Transmission Systems: Optimizing system performance and enhancing operational efficiency.

With its precise, stable, and efficient control capabilities, the hydraulic electromagnetic proportional valve has become an indispensable and vital component in modern hydraulic systems, contributing to improved automation levels and operational efficiency of equipment.
