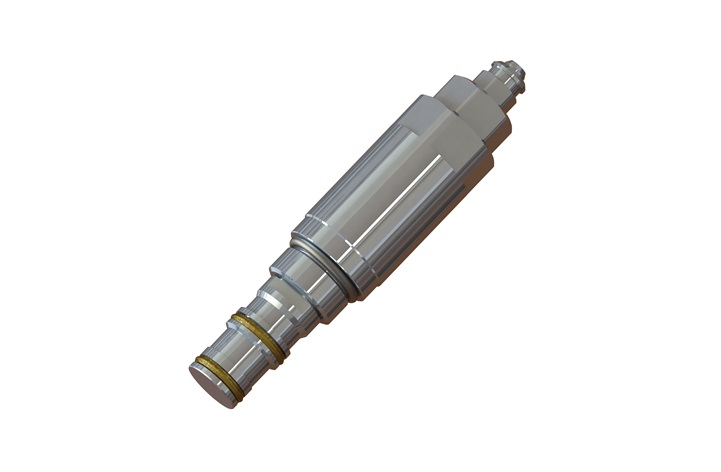

Pressure Control Threaded Cartridge Valve

6 day ago

0 0 

4 year

Product details

Pressure valves are key components used to control pressure in hydraulic systems, maintaining system stability, protecting component safety, and optimizing operational efficiency. Depending on their functions, pressure valves mainly include relief valves, pressure-reducing valves, and sequence valves, among others, and are widely applied in various industrial equipment, construction machinery, and automation systems.

Working Principle

Pressure valves sense the pressure of hydraulic oil and adjust the position of the valve spool to control system pressure or maintain pressure balance. Typically, they are equipped with a spring and a valve spool inside. When the system pressure exceeds the set value, the valve spool moves to open a passage, releasing excess pressure or altering the flow direction of the oil, thereby protecting the system from high-pressure damage or maintaining the required pressure level.

Main Types

Relief Valve

• Function: Prevent excessive system pressure and serve as a safety protection mechanism.

• Application: Automatically redirects excess hydraulic oil back to the oil tank when the system pressure exceeds the set value.

Pressure-Reducing Valve

• Function: Reduce and stabilize the pressure in specific branch circuits.

• Application: Provide different pressure requirements for various components within the same system.

Sequence Valve

• Function: Activate different hydraulic actuators in sequence.

• Application: Control the operating sequence of actuating components in multi-actuator systems.

Key Features

• High Pressure Stability: Effectively maintain the required system pressure to ensure stable equipment operation.

• Safety Protection: Prevent overpressure damage to the system, extending equipment lifespan.

• Fast Response: Quickly respond to pressure changes to adapt to dynamic operating conditions.

• Compact Structure: Simple design, easy to install and maintain.

Application Areas

Hydraulic pressure valves are widely used in various hydraulic systems, such as:

• Construction Machinery: Controlling operating pressure in excavators, cranes, and other equipment.

• Industrial Equipment: Safety protection and pressure regulation in hydraulic machine tools, injection molding machines, and other systems.

• Automotive Hydraulic Systems: Used for pressure control in braking and suspension systems.

Through precise pressure control, hydraulic pressure valves ensure efficient and stable system operation and provide safety guarantees for equipment, making them an indispensable and vital component in modern hydraulic technology.
