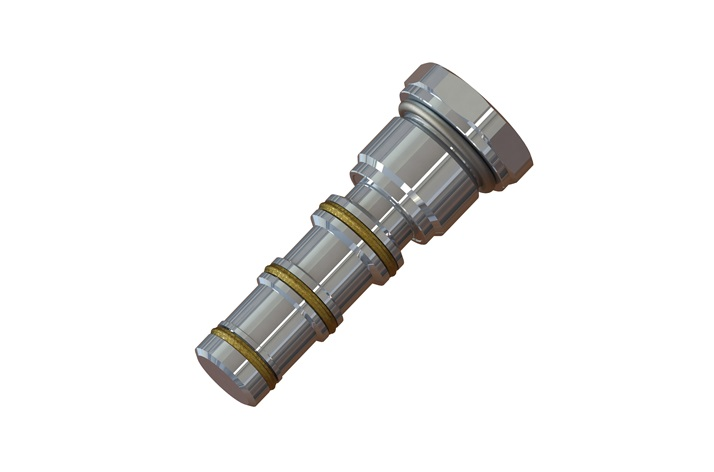

Flow Control Screw-in Cartridge Valve

7 day ago

0 0 

4 year

Product details

Flow control valves and directional control valves are two crucial types of control components, used respectively to regulate the flow rate of hydraulic oil and change its flow direction, thereby achieving precise control over the speed and motion direction of actuating elements.

Flow Control Valves

Flow control valves are primarily used to adjust the flow rate through a specific circuit in a hydraulic system, thereby controlling the speed of actuating elements such as hydraulic cylinders or hydraulic motors. Based on their functions, flow control valves can be classified into throttle valves, speed control valves, and flow divider-combiner valves, among others.

Working Principle

Flow control valves control the flow rate of hydraulic oil passing through by adjusting the opening size of the valve port. Changes in flow rate directly affect the speed of the actuator, enabling the flow control valve to perform speed regulation and load matching within the system.

Main Types

Throttle Valve

• Function: Control the flow rate through a fixed or adjustable throttle orifice.

• Application: Suitable for simple speed regulation scenarios, often used in conjunction with relief valves.

Speed Control Valve

• Function: Maintain a stable flow rate despite changes in load.

• Application: Precisely control the speed of actuators, commonly used in actuator speed control systems.

Flow Divider-Combiner Valve

• Function: Evenly distribute flow to two or more actuating elements.

• Application: Suitable for scenarios where multiple actuators need to operate synchronously.

Application Areas

Flow control valves are widely used in hydraulic systems requiring speed control, such as construction machinery, hydraulic machine tools, and automated production lines.
