Screw-in Cartridge Valve Manifold Assembly

7 day ago

0 0 

4 year

Product details

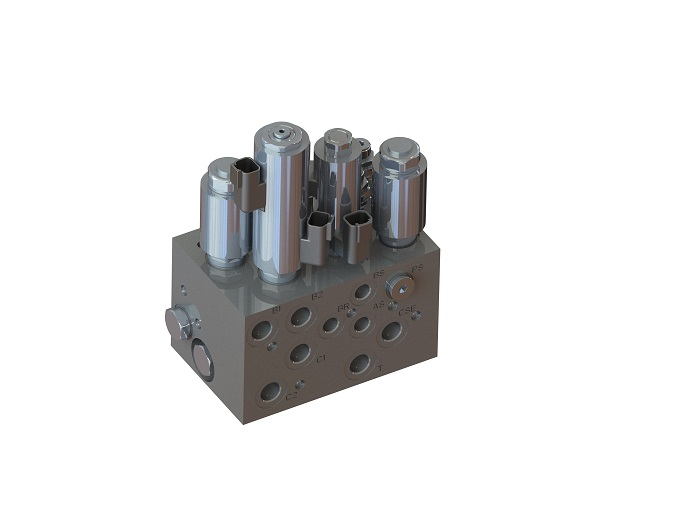

The screw-in cartridge valve integrated manifold is a hydraulic control system module that integrates multiple screw-in cartridge valves into a single valve block. It combines functions such as pressure control, flow control, and directional control within a compact integrated block, enabling precise control of the hydraulic system. Through modular design, the manifold simplifies the installation, piping connections, and maintenance of the hydraulic system, significantly enhancing system reliability and operational efficiency.

Working Principle

The screw-in cartridge valve integrated manifold employs various types of screw-in cartridge valves, such as relief valves, counterbalance valves, pressure-reducing valves, check valves, and solenoid directional control valves, among others. These valves are interconnected through internal channels within the integrated block to form complex hydraulic circuits. Each cartridge valve operates independently while achieving precise coordination to comprehensively control the pressure, flow rate, and direction of the hydraulic system.

Key Features

• Modular Design: Integrates multiple functional valves into a single valve block, reducing the number of piping connections, lowering the risk of leakage, and enhancing overall system stability.

• Compact Structure: The integrated design significantly saves space, making it suitable for installation in confined equipment spaces.

• Versatile Functions: Enables flexible configuration of different types of cartridge valves according to system requirements, achieving multiple control functions such as pressure regulation, flow distribution, and directional control.

• Easy Maintenance: The cartridge valves are easy to disassemble and replace without the need to dismantle the entire hydraulic system, resulting in low maintenance costs.

• High Efficiency: Optimized internal channel design minimizes energy loss and improves system efficiency.

Application Areas

The screw-in cartridge valve integrated manifold is widely used in hydraulic systems requiring high integration and complex control functions, such as:

• Construction Machinery: Hydraulic control units for excavators, cranes, and other equipment.

• Industrial Automation Equipment: Integrated hydraulic control systems for CNC machine tools and hydraulic presses.

• Agricultural Machinery: Multi-functional hydraulic control systems for combine harvesters.

• Marine Equipment: Control systems for ship hoisting and steering gear.

• New Energy Equipment: Hydraulic control systems for wind power generation, among others.
