Joystick Control & Foot Pedal Valve
(Embedded keywords: hydraulic system, pilot hydraulic components)
1. Product Overview

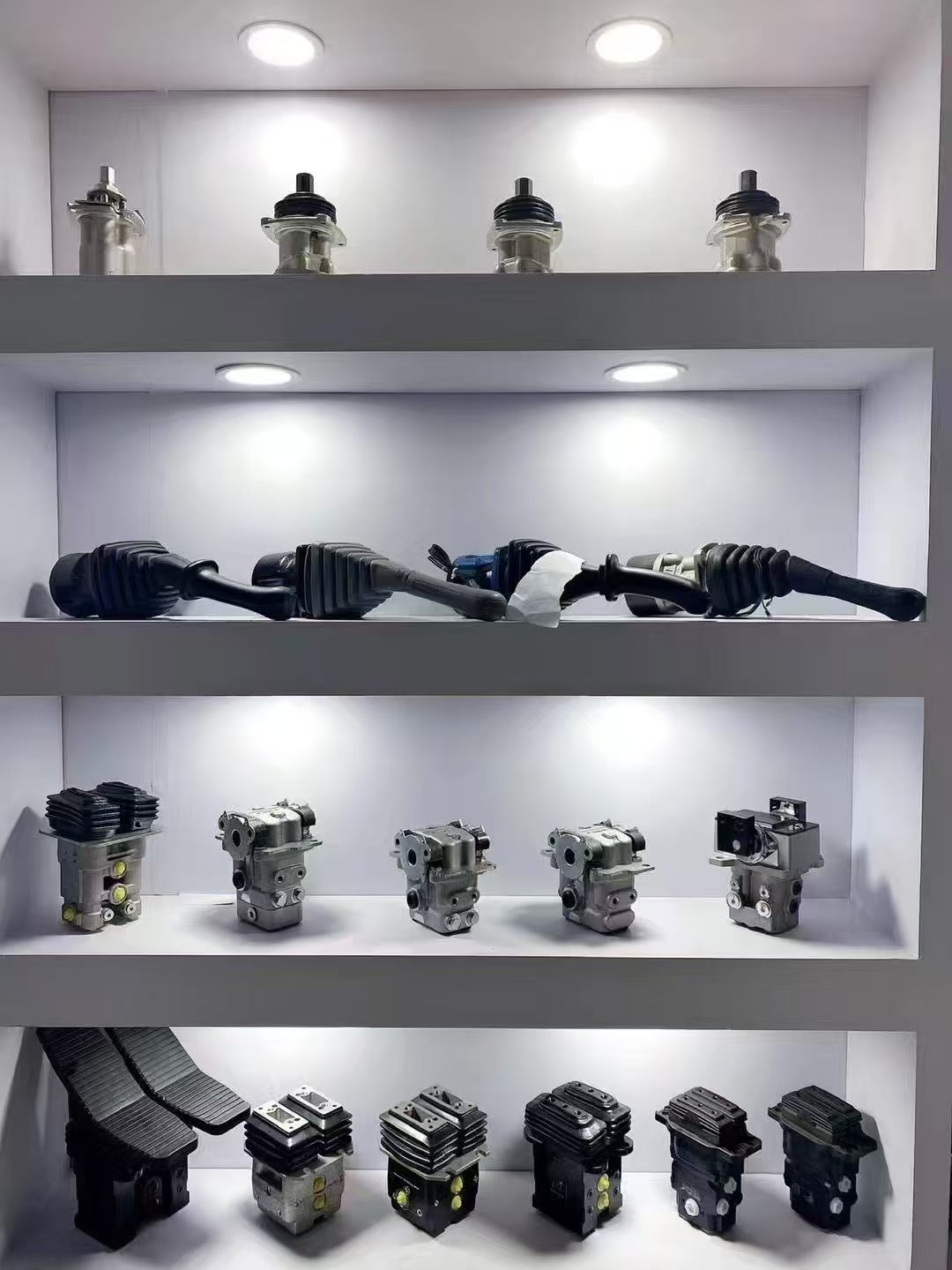

The pilot joystick control and foot pedal valve are core pilot control components for excavators and construction machinery hydraulic system. This set includes hand joystick assemblies and foot operated pilot valves, designed to convert manual and foot movements into precise hydraulic pilot pressure signals to control main valves, swing motors, travel motors and boom cylinders. The whole series has highly versatile compatibility, perfectly fitting excavators of Komatsu, Hitachi, Doosan, Kobelco, Caterpillar, Sumitomo, Kato, Hyundai, Yuchai, Sany, Volvo, LiuGong and other mainstream brands. With high precision spool structure, durable seals and anti-vibration design, these pilot components perform stably under long-hour harsh construction conditions. Both original equivalent aftermarket units and OEM replacement versions are available for equipment maintenance and overhaul.
Model Description
Universal pilot joystick and foot pedal valve group, multi-brand compatible for most excavator models.
2. Main Technical Parameters
Item Specification
Product Type Hydraulic pilot joystick & foot pedal valve
Pilot Working Pressure 3.0 MPa ~ 3.5 MPa
Max Pressure Resistance 10 MPa
Standard Oil Port SAE standard pilot ports
Seal Material NBR rubber, FKM high temperature seals optional
Operating Temperature -20℃ ~ +95℃
Operation Mode Proportional manual control, foot proportional control
Compatible Brands Komatsu, Hitachi, Doosan, Kobelco, CAT, Sumitomo, Kato, Hyundai, Rexroth, Yuchai, Sany, Volvo, LiuGong
Surface Treatment Anti-corrosion coating for long service life
3. Working Principle
When operators push or tilt the joystick, or step on the foot pedal valve, the internal precision spool moves proportionally. It outputs adjustable pilot hydraulic pressure to the main control valve spools in the hydraulic system. The pilot pressure changes according to operation stroke, so the flow and speed of cylinders and hydraulic motors can be controlled smoothly. Built-in return springs reset the spools immediately after releasing the joystick or pedal, locking the working device steadily. Internal dampers eliminate pressure fluctuation, realizing smooth and shock-free operation.
4. Core Advantages
1. Wide universal compatibility, suitable for almost all mainstream excavator brands on the market.
2. Proportional control characteristic, smooth operation without jitter or crawling.
3. Reinforced valve body structure, excellent anti-vibration performance for construction sites.
4. Wear-resistant valve spool and high quality seals, low internal leakage and long service life.
5. Direct plug-and-play replacement, no modification needed during installation.
6. Complete specifications including 2-way, 4-way joysticks and travel foot pedal valves.
7. Stable performance in high temperature and dusty working environments.
5. Application Range
These joystick controls and foot pedal valves are widely used as pilot control parts for hydraulic system of excavators, backhoes and mining machinery, compatible with Komatsu, Hitachi, Doosan, Kobelco, Caterpillar, Sumitomo, Kato, Hyundai, Yuchai, Sany, Volvo, LiuGong and other engineering equipment. Mainly used for controlling boom, arm, bucket, swing and travelling functions.
