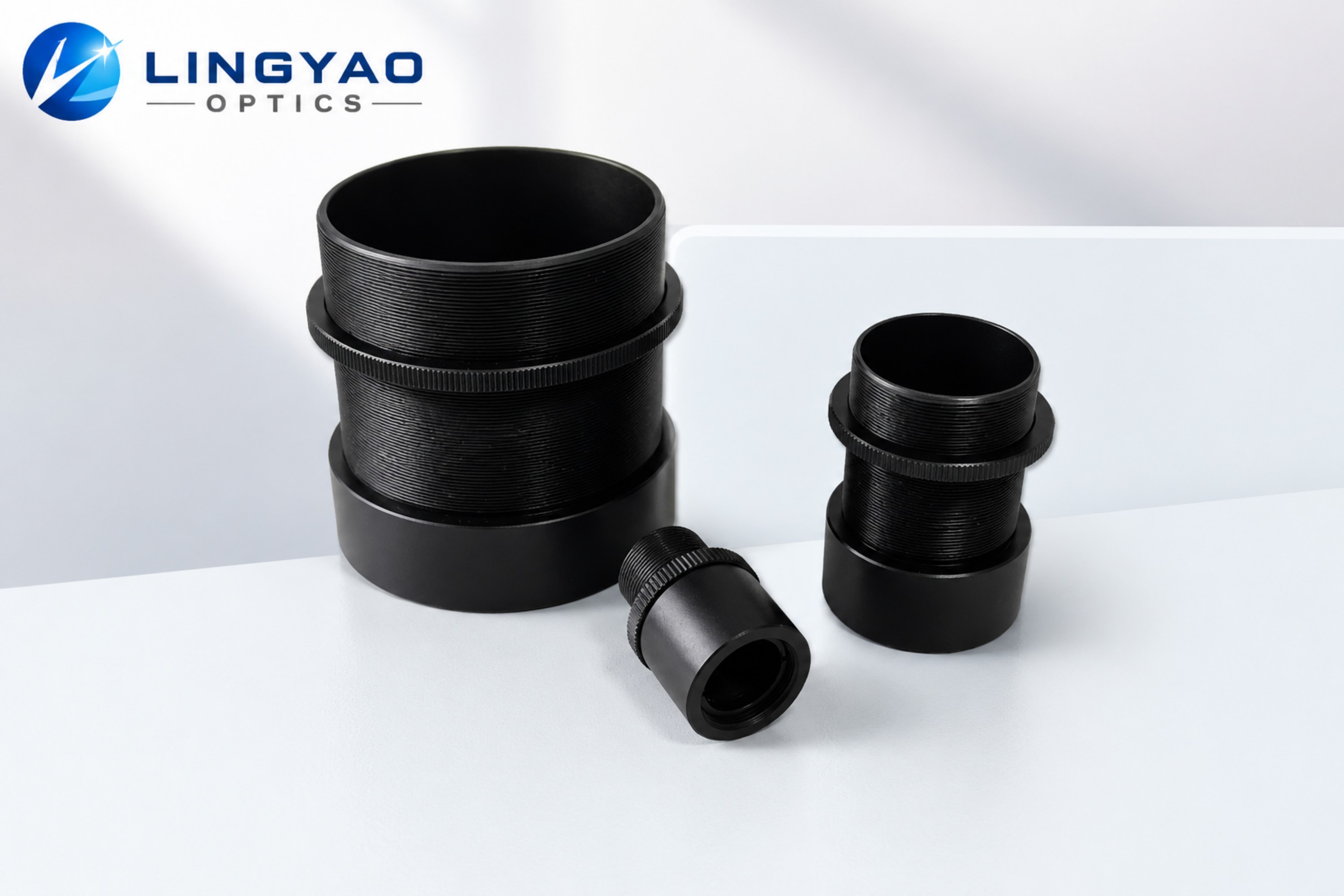

The lens barrel is a core structural component of an optical lens system, primarily serving to house, secure, and protect internal optical elements such as lenses, spacers, retaining rings, filters, and apertures. Acting as a crucial interface between optical elements and the mechanical structure, the barrel determines the lens's overall structural stability and influences lens positioning accuracy, optical axis alignment, and final image quality.

High-performance lenses impose rigorous precision requirements on barrels, demanding high coaxiality, dimensional stability, mechanical strength, and environmental resilience. Through precision manufacturing, the barrel ensures accurate spatial relationships between lenses, enabling the optical system to achieve optimal imaging performance. These barrels are widely used in applications such as smartphone cameras, automotive ADAS lenses, industrial machine vision lenses, security surveillance lenses, medical lenses, microscopes, and projection lenses.

Based on structural and application requirements, lens barrels are primarily categorized as follows:

1. Metal Barrels

Typically manufactured from materials such as aluminum alloy, stainless steel, or copper alloy, metal barrels offer high strength, high precision, and excellent heat dissipation. They are suitable for applications requiring high stability, such as industrial lenses, professional photography lenses, and automotive lenses.

2. Plastic Barrels

Characterized by light weight, high manufacturing efficiency, and significant cost advantages, plastic barrels are widely used in smartphone cameras, lenses for small consumer electronics, and smart devices. Precision injection molding technology enables complex structural designs and mass production.

3. Composite Barrels

Composite barrels combine the advantages of metal and plastic materials, reducing weight and manufacturing costs while maintaining structural integrity; they are frequently used in high-performance, miniaturized optical modules.

Barrel manufacturing involves processes such as precision turning, CNC machining, injection molding, surface treatment, anodizing, coating, and automated inspection. High-quality barrels require strict control over inner diameters, tolerances, thread fits, flatness, and coaxiality to prevent issues like focus shift or image blurring caused by mechanical errors.

Additionally, the barrel performs functions such as light shielding, dust protection, and shock absorption. Internal anti-reflective (matte) treatments and structural optimization help minimize stray light reflections, thereby enhancing lens contrast and image quality.
