Beam Prism Assembly Products

The beam splitter prism assembly is a high-precision integrated optical component specially designed for beam splitting, beam combining and optical path transmission control. Widely adopted in machine vision systems, precision imaging devices, laser equipment, biometric recognition modules, optical communication devices and scientific research instruments, it serves as the core optical unit to realize accurate light distribution and stable optical signal transmission. Different from traditional discrete optical parts, this integrated prism assembly features compact structure, high alignment accuracy and excellent environmental stability, effectively solving common defects such as optical path offset, beam distortion and low repeatability in conventional optical assembly, and greatly improving the overall precision and consistency of optoelectronic equipment.

Manufactured from high-purity K9 optical glass and ultra-uniform optical substrates, the assembly features low internal stress, high surface flatness and excellent spectral transmittance. The core splitting surface adopts advanced multilayer dielectric coating and high-vacuum coating technology, achieving precise and stable beam splitting ratios such as 50:50, 70:30 and 90:10. Both polarizing and non-polarizing versions are available to meet different application requirements. The polarizing beam splitter delivers high extinction ratio and accurate separation of S-polarized and P-polarized light, while the non-polarizing model maintains a stable splitting ratio independent of polarization state, ensuring uniform light energy distribution, no color deviation and no extra optical loss during long-term operation.

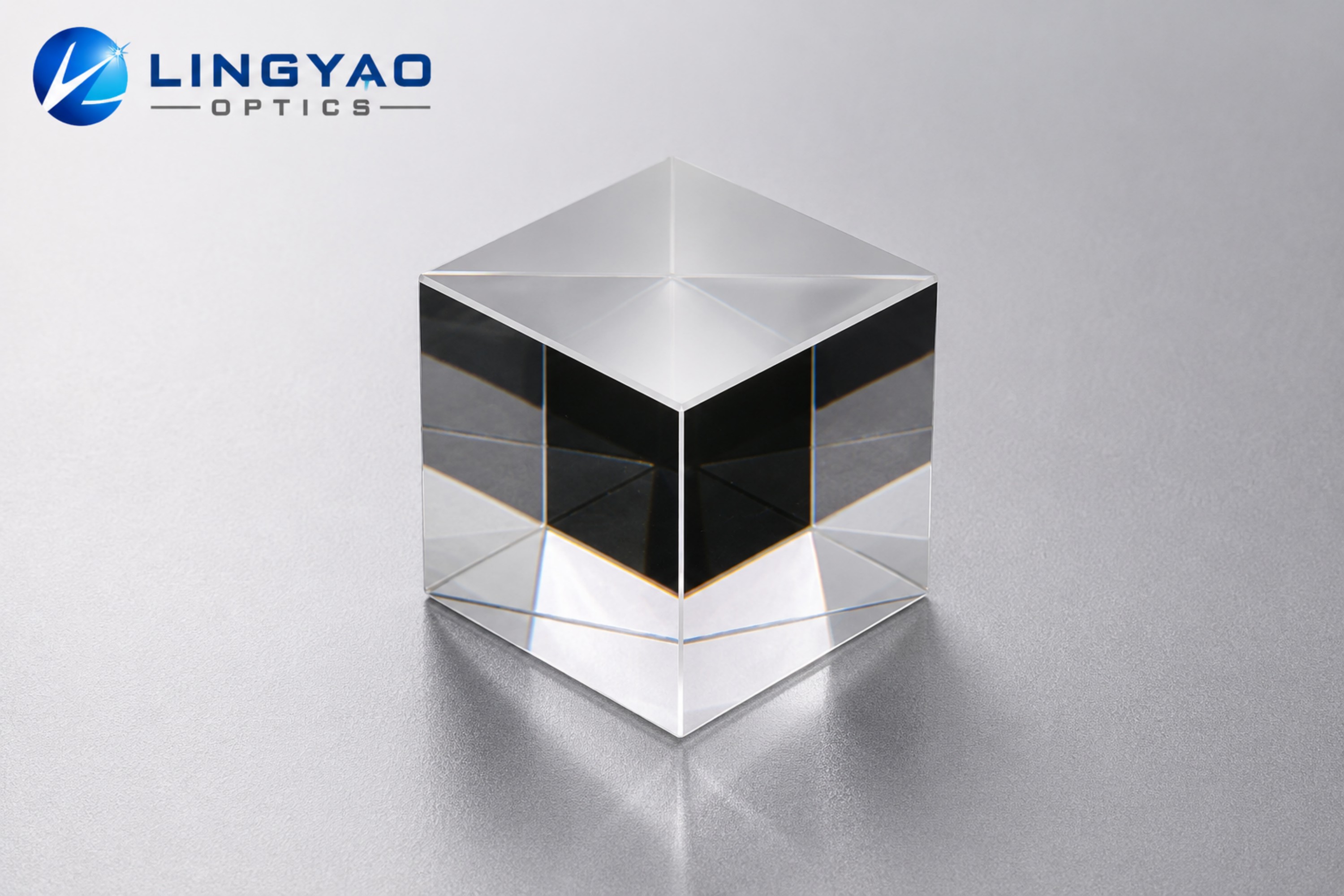

The cubic integrated structure provides equal optical path length for transmitted and reflected light, completely avoiding beam translation and optical dislocation problems that commonly occur in flat beam splitters. The precision bonding process ensures tight integration without air gaps, effectively protecting the internal optical coating from dust, moisture and friction damage. All optical surfaces are ultra-precision polished with extremely low scattering and high surface finish, which can effectively suppress stray light, diffuse reflection and ghost images, ensuring high-purity and high-clarity optical output. Strict dimensional tolerance and angle accuracy control guarantee excellent coaxiality and positioning consistency during equipment assembly.

This beam splitter prism assembly possesses outstanding mechanical stability and environmental adaptability. It features high temperature resistance, low temperature stability, moisture proofness and oxidation resistance, maintaining stable optical performance in complex industrial and laboratory environments. The integrated modular design simplifies assembly and calibration procedures, reduces manual adjustment errors, and significantly improves production efficiency and finished product yield for optical equipment manufacturers. The durable glued structure is not easy to degum or deform, supporting long-term continuous working conditions and lowering later maintenance costs.

With wide spectral adaptability covering visible light and near-infrared wavelength bands, the product is widely applicable in digital imaging, laser detection, optical interference systems, face recognition, industrial inspection and optical communication devices. Featuring reliable optical performance, precise manufacturing technology and highly integrated structure, the beam splitter prism assembly is a fundamental high-end optical component for modern industrial optoelectronics and scientific research equipment, providing accurate, stable and efficient optical control solutions for various precision optical systems.
