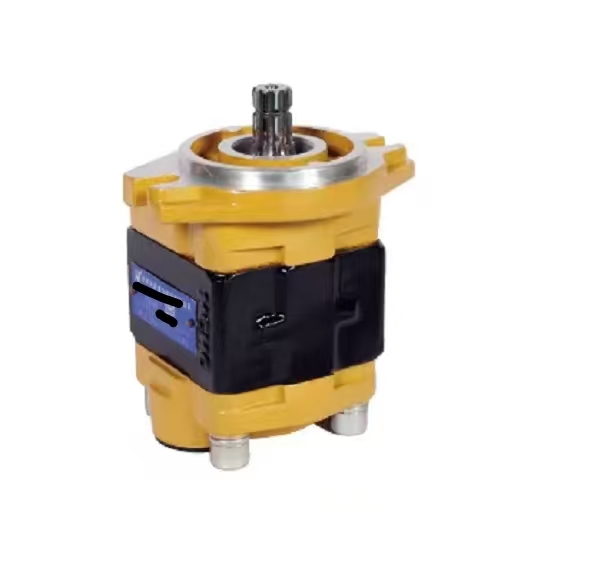

CBHZ-F External Gear Pump

1. Product Overview

CBHZ-F external gear pump is fixed displacement high-pressure external meshing hydraulic gear pump. It adopts robust pump housing and floating axial clearance compensation mechanism. The structure effectively reduces internal leakage and maintains high volumetric efficiency under continuous heavy-load operation.

A variety of drive shafts, mounting flanges, oil port orientations and rotation directions are optional. It can be used as interchange spare parts for mobile machinery and general hydraulic equipment maintenance.

Model Code Explanation

- CBHZ: Series code of external meshing gear pump

- F: Pressure grade code, rated working pressure 20MPa

2. Main Technical Parameters

Item Specification

Pump Type Fixed displacement external meshing hydraulic gear pump

Rated Working Pressure 20 MPa

Maximum Peak Pressure 25 MPa

Operating Speed Range 600 ~ 2800 rpm

Volumetric Efficiency ≥92% under rated working condition

Housing Material High-strength aluminum alloy / cast iron optional

Shaft Form Flat key shaft; spline shaft available as option

Oil Port Connection Thread connection

Applicable Fluid ISO VG46, VG68 anti-wear hydraulic oil

Operating Temperature -20℃ ~ +80℃

Standard Seals NBR; FKM high-temperature seals optional

3. Working Principle

The driving shaft drives a pair of meshing gears to rotate inside pump cavity. Vacuum is formed on suction side to suck hydraulic oil. The gears deliver oil to pressure side and send pressurized oil into hydraulic circuit.

The floating compensation plate automatically compensates axial clearance caused by friction wear, restraining internal leakage and ensuring stable performance during long-hour operation.

4. Core Advantages

1. Axial automatic clearance compensation structure, low internal leakage and stable volumetric efficiency.

2. Multiple housing material options to meet different load requirements.

3. Compact layout, easy installation and daily maintenance.

4. Low vibration and low running noise.

5. Strong anti-pollution capability, suitable for complex working environments.

6. Complete installation specifications, high cost-effective aftermarket replacement solution.

5. Application Range

This hydraulic gear pump serves as power source of hydraulic system, widely used in forklifts, small loaders, road rollers, sanitation vehicles, agricultural machinery and general hydraulic power units.
