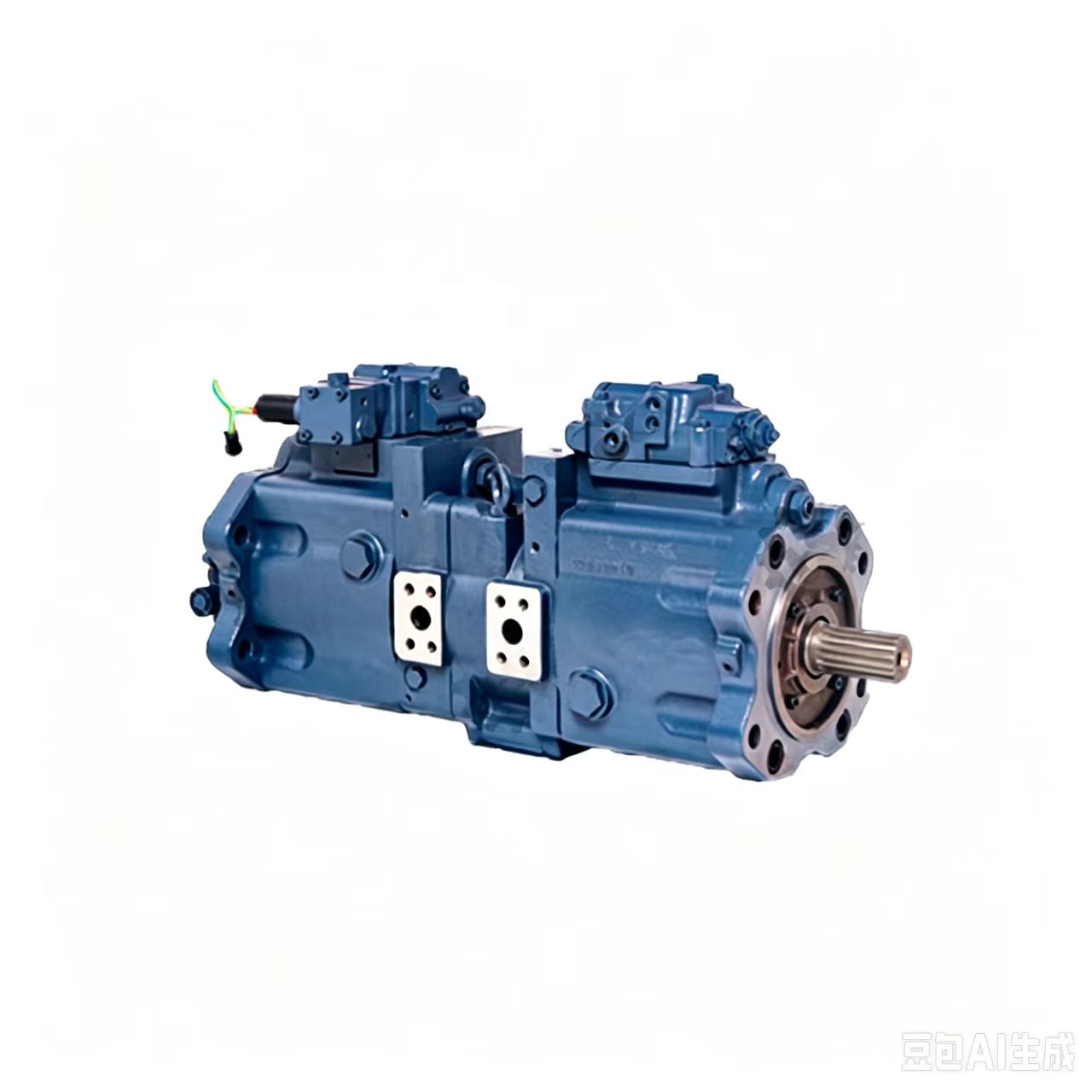

K5V200DTH-9N4H Hydraulic Piston Pump

1. Product Overview

K5V200DTH-9N4H is Kawasaki tandem variable swashplate axial piston pump, designed as the main hydraulic power unit for 45–50 ton large crawler excavators.

This double pump assembly adopts negative flow control system. The complete model suffix 9N4H defines port layout, regulator configuration, spline shaft specification, rotation direction and internal assembly parameters. High-quality interchange aftermarket pumps are available as cost-effective replacement for maintenance and equipment overhaul.

Model Code Interpretation

- K5V: Kawasaki open circuit tandem axial piston pump series

- 200: Single pump theoretical displacement: 200 cc/rev

- D: Dual tandem pump structure

- T: Tandem arrangement

- H: Negative flow control regulator

- 9N4H: Custom code for mounting interface, oil port, shaft and control valve configuration

2. Main Technical Parameters

Item Specification

Type Tandem variable displacement swashplate axial piston pump

Single pump displacement 200 cc/rev

Rated working pressure 34.3 MPa

Maximum peak pressure 39.2 MPa

Permissible speed range 600 ~ 2100 rpm

Volumetric efficiency ≥93% under rated operating conditions

Control system Negative flow control

Applicable hydraulic oil ISO VG46 / VG68 anti-wear hydraulic oil

Working temperature -20℃ ~ +90℃

Standard seals NBR; FKM high temperature seal kit optional

3. Working Principle

Engine drives main shaft and cylinder block to rotate. Pistons reciprocate to complete oil suction and high-pressure oil discharge.

The built-in servo piston adjusts the tilt angle of the swashplate automatically according to system load signals, changing pump displacement to adjust output flow. The negative flow control realizes sensitive matching between pump output and actuator demand, reducing power loss and fuel consumption.

4. Core Advantages

1. Heavy-duty structure, high power density, stable high-pressure output for large excavators.

2. Optimized negative flow control, smooth compound action of boom, arm, bucket and travel.

3. Precisely ground internal friction pairs, low internal leakage, stable volumetric efficiency under long continuous heavy load.

4. Low vibration and low noise during high-load operation.

5. Complete consistency with original mounting dimension, oil port position and electrical interface, plug-and-play replacement.

6. Mature aftermarket production, shorter delivery lead time compared with original Kawasaki OEM pump.

5. Application Range

Main hydraulic main pump for 45~50 ton large excavators

Compatible typical models:

Doosan DX480LC, DX500LC;

Hyundai R480LC-9, R520LC-9;

Sany SY485, SY500;

XCMG XE470, XE490;

Other large excavators equipped with K5V200 series hydraulic system.
