Hand Hydraulic Cable Crimping Tool for Overhead Line Work

2 month ago

5 0 

NINGBO MARSHINE POWER TECHNOLOGY CO., LTD.

10 year

Product details

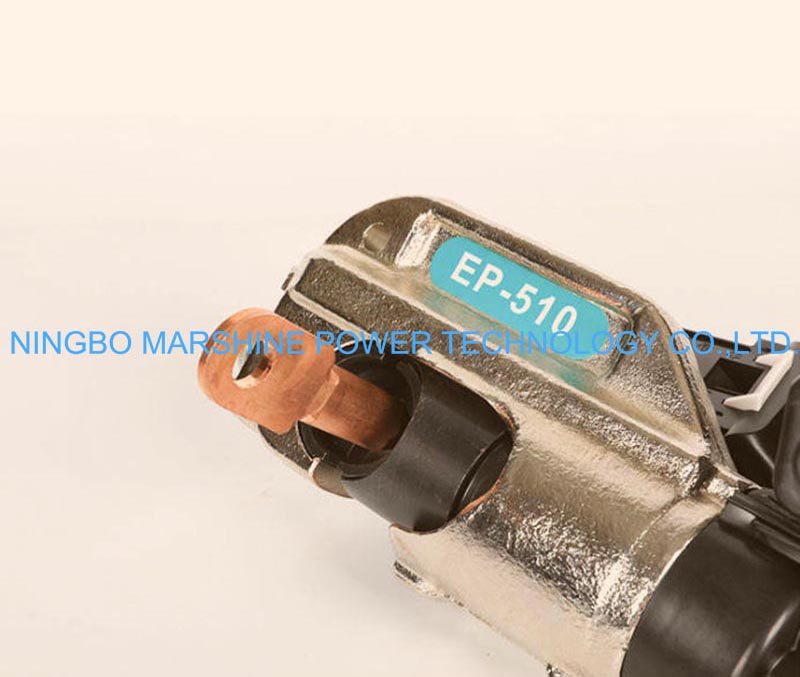

Line Construction Compression Tool

The MARSHINE Hydraulic Crimping Tool has a stable crimping force of 126KN to crimping the transmission wiring seamless low resistance terminals. This mechanical hydraulic crimper saves you from re-squeezing motion and decreases your hand fatigue when you are processing batch terminals. The tool has a 180 degree rotatable C-Type head which is ideal for working in tight spaces such as in narrow towers and cabinets, the die changing process is quick and easy and you do not need any auxiliary tools. It features intelligent pressure automatic retraction system which means the piston is retracted when the target compression force reaches the standard value to avoid over-compression damage for cable strands and lugs. Constructed of a heat treated alloy steel frame with sealed wear resistant hydraulic seals, this hydraulic lug compression tool delivers consistent dependable performance even in the muddy rainy outdoors of building.

This mechanical hydraulic crimper satisfies the full range of crimping of copper terminals of 50 mm²- 400 mm²and aluminum lugs of 50 - 300 mm², and the primary ACSR conductor connection standards in the 110kV and 220kV overhead power project.

A matched standard package of die sets consist of nine individual hexagonal moulds for 50,70,95,120,150,185,240,300 and 400mm²which allow the building team save the cost of buying extra dies.

The integrated hydraulic oil tank with 77 ml special anti-wear hydraulic oil can allow oil lubricate throughout thousands of crimp cycles before oil refilling is needed.

The net weight of this product MARSHINE Hydraulic Lug Compression Tool is 5.7 pounds, and it is 420mm in overall length, compact enough for single linemen to lug up tower plateaus in standard portable plastic storage cases.

The holder insulated grip sleeves in working are adequate thick so as to resist metallic transient voltage shocks at the live line end while doing assist live line work.

The compression tool line is used to perform the terminal crimp to connect new overhead transmission line conductor at mountain remote construction sites.

This tool is designed for compressing copper lugs in batches for city power grid renovation, and substation cabinet-wiring.

The MARSHINE Mechanical Hydraulic Crimper gives you durable, dependable aluminum terminal joints for your underground medium voltage cabled trenching projects.

This manual hydraulic crimping tool is for crimping connectors in the OPGW optical ground wire end fitting.

Hexagonal compaction for hand hydrolic crimper Ideal for post-storm destruction of recon ductors, and conductor repair and reconnect work.

Parameter

Model	EP-510
Weight	10.6 kg
Crimping Force	13 Tons
Overall Length	475 mm
Crimping Type	Hexagonal crimping (hexagonal die)
Maximum Stroke	32 mm
Die Sizes Included	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 mm²
Accessories	Sealing rings, plastic carrying case
