Hydraulic Pilot Joystick F
2 month ago
Product details

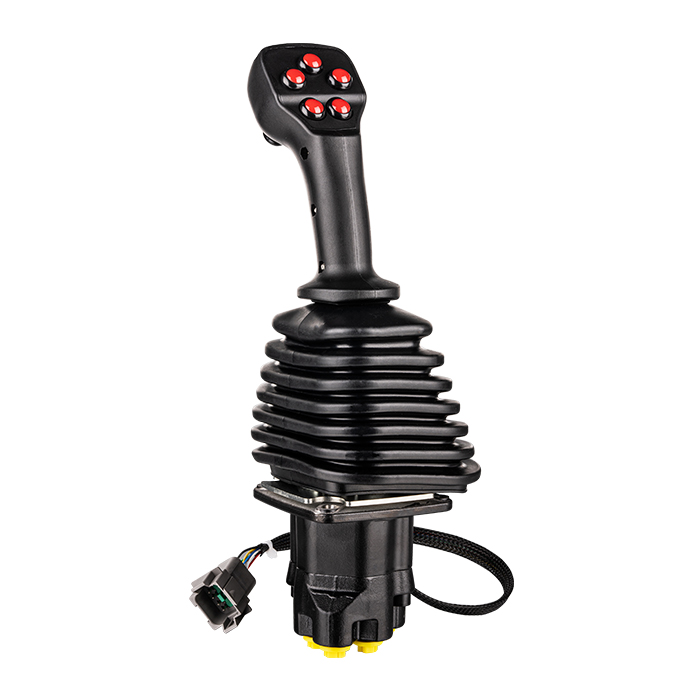

Pilot Joystick
1. Product Overview
The pilot joystick is a hydraulic pilot control handle assembly widely installed on crawler excavators and other construction machinery. It converts manual operating movement into proportional pilot hydraulic signals, remotely driving the main multi-way valve to control the boom, arm, bucket, slewing and traveling actions of excavators.
Hydraulic Pilot Joystick F belongs to high‑quality Excavator Spare Parts. It is a complete pilot‑operated Hydraulic valve assembly. Supplied with pilot pressure oil from the hydraulic pump, it outputs proportional pilot signals to control the main valve group inside the complete hydraulic system. Widely fitted on excavators and other construction Machine, this joystick is suitable for new machine assembly, field overhaul and aftermarket replacement of worn‑out control components.
Different model codes (A/B/C/F) represent different internal spool structures, oil port layouts and action control logic to match various excavator brands and models. High-quality interchange aftermarket joysticks serve as cost-effective replacement spare parts for equipment maintenance and overhaul.
2. Main Technical Parameters
Item Specification
Product Name Hydraulic Pilot Joystick
Control Type Hydraulic proportional pilot control
Working Pilot Pressure 3.0 ~ 3.5 MPa
Operating Mode Manual proportional control
Applicable Hydraulic Oil ISO VG46 anti-wear hydraulic oil
Operating Temperature -20℃ ~ +80℃
Installation Form Floor mounting / Console mounting (depending on model)
Standard Seal Material NBR; FKM high-temperature sealing components optional
3. Working Principle
When the operator pushes, pulls or swings the joystick lever, the built-in valve spool moves synchronously. Pilot oil supplied by the pilot pump flows through the joystick and generates continuously variable proportional pressure signals.
These hydraulic signals are transmitted to corresponding cavities of the main control valve, pushing the main spool to shift. It adjusts the flow direction and flow rate of the main hydraulic circuit, so that the actuators such as boom cylinder, arm cylinder and swing motor move smoothly.
Built-in return springs automatically reset the joystick lever to neutral position immediately once manual operating force is released, cutting off the control signal and stopping machine movement.
4. Core Advantages
1. Precisely machined spool assembly, sensitive proportional control and stable, comfortable operating feel.
2. Excellent sealing performance, effectively reducing internal leakage and preventing external oil seepage.
3. High-strength return springs ensure rapid, stable and reliable neutral reset.
4. Wear-resistant internal core components, long service life, adaptable to dusty, high-load harsh construction working conditions.
5. Mounting hole dimensions and oil port layout consistent with original OEM parts, supporting direct plug-and-play replacement without pipeline modification.
6. Aftermarket alternative products feature competitive price and short delivery lead time for machinery maintenance.
5. Application Range
Universal hydraulic pilot control component for crawler excavators. Multiple variants (Pilot Joystick A / B / C / F) with different control logic are available, separately used to control boom, arm, bucket and slewing functions.
Compatible with most mainstream excavator brands equipped with matched hydraulic pilot control system.
6. Common Faults & Replacement Suggestion
Typical failures: Slow control response, joystick drifting, failure to return to neutral position, external oil leakage, weak operating power.
Thoroughly clean all pilot oil pipelines before installation to avoid dirt and impurities entering the joystick inner chamber. Test and confirm the pilot pump output pressure meets standard requirements. If internal spool and friction parts suffer severe abrasion, replace the complete joystick assembly.
