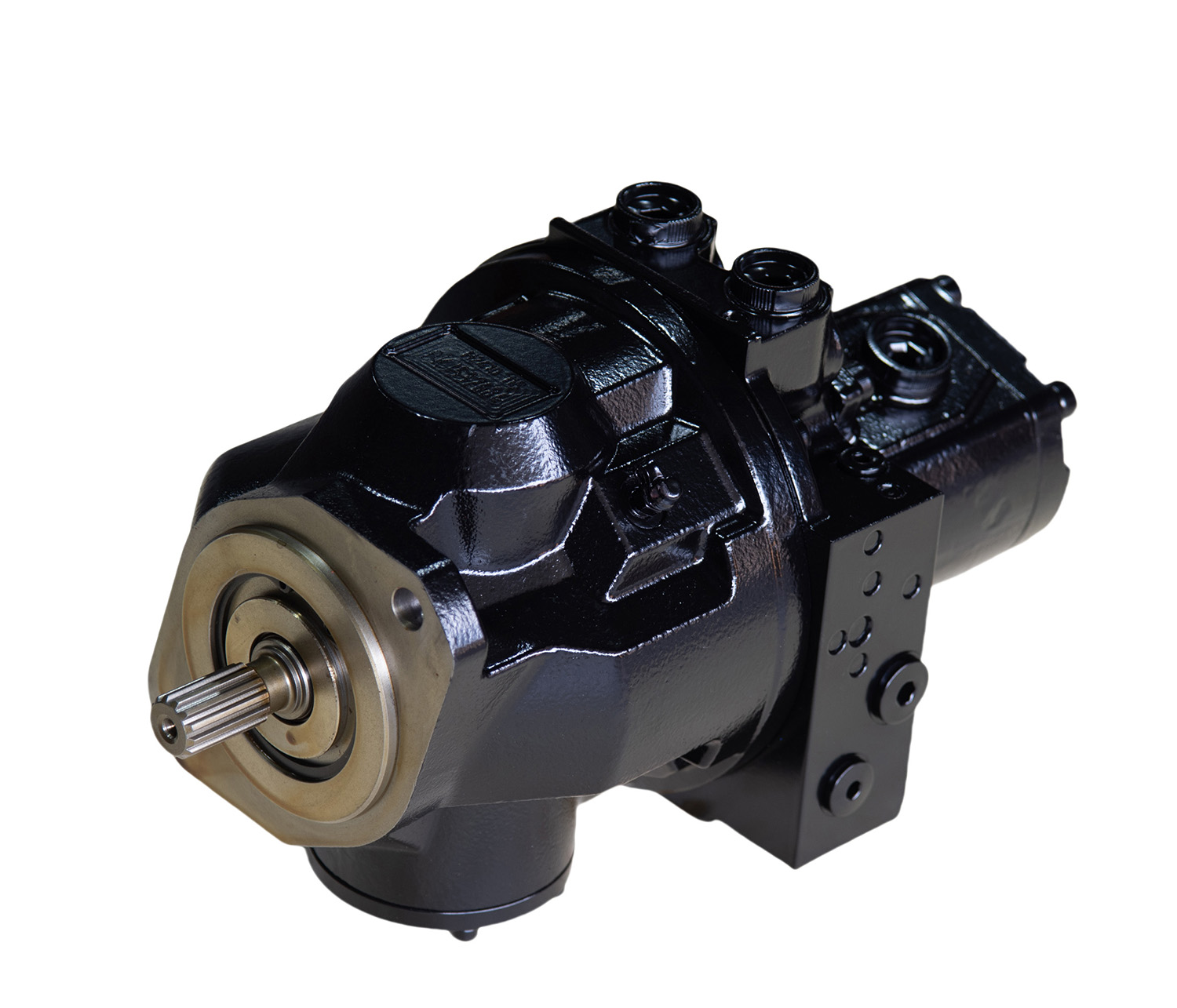

AP2D28LV1RS7-850 Hydraulic Pump Used For SK60-8-KP
1. Product Overview
AP2D28LV1RS7-850 is a swashplate tandem variable axial piston pump, original designed by Uchida. It serves as the main hydraulic power assembly for Kobelco SK60-8-KP mini crawler excavator.
This integrated double pump structure incorporates main variable piston pump and built-in pilot gear pump. It provides high-pressure hydraulic oil to control boom, arm, bucket, slewing and travelling actions of the excavator. High-quality interchange aftermarket pump can directly replace OEM pump for equipment maintenance and overhaul.
Model Code Explanation
- AP2D: Series code of variable axial piston pump (Uchida series)
- 28: Single pump theoretical displacement: 28 cc/rev
- LV1: Control form (negative flow control configuration)
- RS7: Port layout, spline shaft and assembly structure code
- 850: Custom assembly version code for Kobelco SK60-8-KP
- Application: Kobelco SK60-8-KP 6-ton mini excavator
2. Main Technical Parameters
Item Specification
Pump Type Tandem Variable Displacement Axial Piston Pump
Single Pump Displacement 28 cc/rev
Control Mode Negative flow control
Rated Working Pressure 25.5 MPa
Maximum Peak Pressure 30 MPa
Rated Rotating Speed 2100 rpm
Maximum Self-priming Speed 2600 rpm
Rotation Direction Clockwise (viewed from shaft end)
Built-in Component Integral pilot gear pump
Applicable Hydraulic Oil ISO VG46 anti-wear hydraulic oil
Operating Temperature -20℃ ~ +85℃
Seal Material NBR; FKM high-temperature sealing kit optional
Approximate Weight 35 kg
Compatible Machine Kobelco SK60-8-KP Mini Excavator
3. Working Principle
Driven by engine power, the main shaft and cylinder block rotate synchronously. The reciprocating motion of pistons completes oil suction and high-pressure oil discharge circulation.
The servo piston automatically adjusts swashplate tilt angle according to system load signal, changes pump displacement and regulates output flow to match load demand.
The integrated pilot gear pump supplies stable pressure oil for pilot control circuit, supporting pilot joysticks and foot pedal valves to realize all excavator operation movements.
4. Core Advantages
1. Compact integrated tandem structure, main pump + pilot pump all-in-one, perfectly fit limited installation space of 6-ton mini excavator Kobelco SK60-8-KP.
2. Precisely manufactured internal friction pairs, low internal leakage, high volumetric efficiency during continuous heavy-load operation.
3. Optimized negative flow control system, excellent matching performance with engine, effectively reduce fuel consumption and heat generation.
4. High-strength cast pump housing, shock and vibration resistant, adaptable to complex municipal, landscaping and pipeline construction conditions.
5. Mounting flange, spline shaft, oil port layout fully consistent with OEM pump, plug-and-play direct replacement without pipeline modification.
6. Mature aftermarket replacement assembly, shorter delivery lead time compared with original genuine parts.
5. Application Range
Main hydraulic main pump for Kobelco mini excavator:
Kobelco SK60-8-KP
Commonly used in municipal engineering, landscaping, pipeline laying, small earthmoving and indoor demolition projects.
