AP2D36 Hydraulic Pump For R80/DH80
5 week ago
Product details

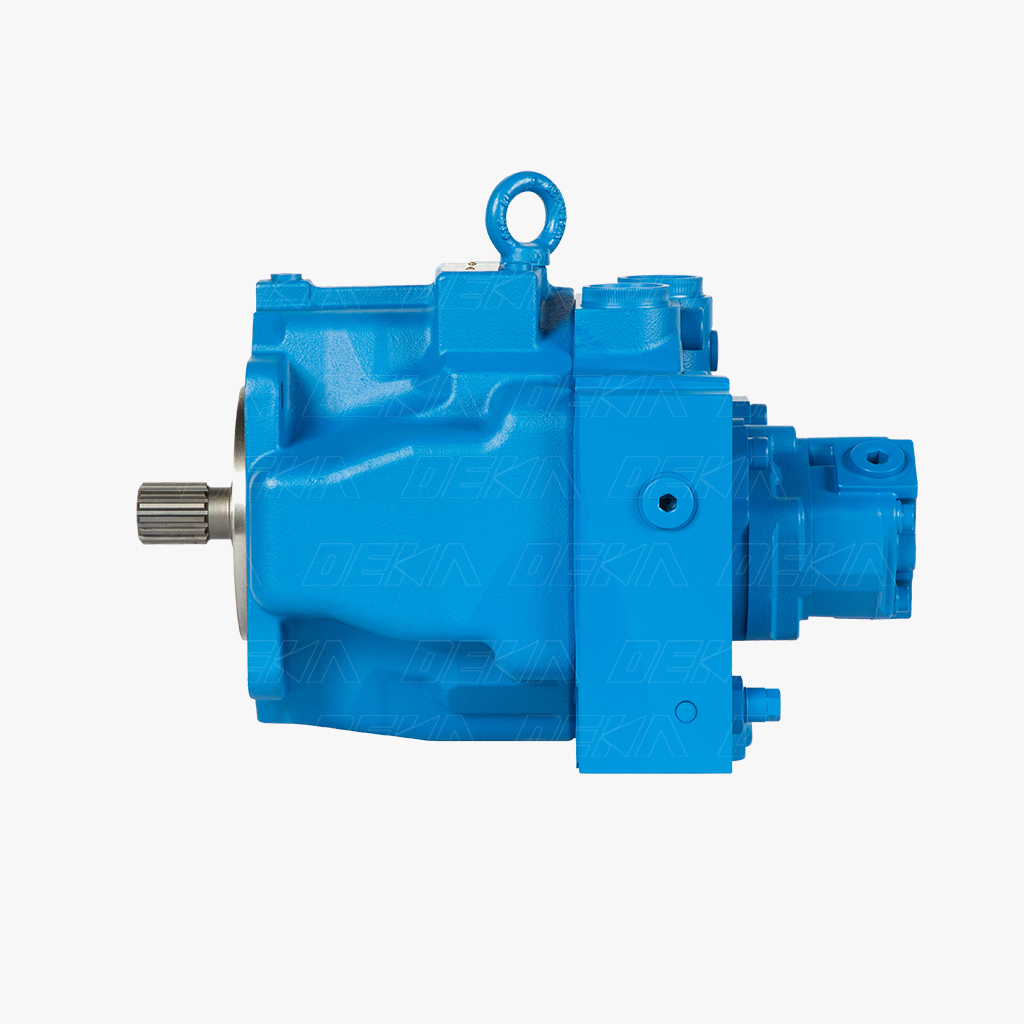

AP2D36 Hydraulic Pump For R80/DH80
1. Product Overview
AP2D36 is swashplate tandem variable axial piston pump originally developed by Uchida. It serves as the main hydraulic power assembly for Hyundai R80 and Doosan DH80 8-ton mini crawler excavators.
This integrated double-pump structure consists of two variable piston pumps with built-in pilot gear pump. It provides high-pressure hydraulic oil to drive boom, arm, bucket, slewing and travelling hydraulic actuators. High-quality interchange aftermarket pump can directly replace OEM pump for equipment maintenance and overhaul.
AP2D36 Hydraulic Pump For R80/DH80 is a complete variable‑displacement Hydraulic piston pump. As the core power component, this hydraulic pump delivers steady pressure and flow for the entire hydraulic system. It integrates main piston pump and built‑in pilot gear pump, specially matched for Hyundai R80 and Doosan DH80 excavators. This unit is widely used for aftermarket replacement and equipment overhaul of construction machinery
Model Definition
- AP2D: Series of variable axial piston pump (Uchida series)
- 36: Single pump theoretical displacement: 36 cc/rev
- Applicable Models: Hyundai R80, Doosan DH80 Mini Excavator
2. Main Technical Parameters
Item Specification
Pump Type Tandem Variable Displacement Axial Piston Pump
Single Pump Displacement 36 cc/rev
Control Mode Negative flow control
Rated Working Pressure 24.5 MPa
Maximum Peak Pressure 31.4 MPa
Rated Rotating Speed 2000 rpm
Maximum Self-priming Speed 2200 rpm
Rotation Direction Clockwise (viewed from shaft end)
Built-in Component Integral pilot gear pump
Applicable Hydraulic Oil ISO VG46 anti-wear hydraulic oil
Operating Temperature -20℃ ~ +85℃
Seal Material NBR; FKM high-temperature sealing kit optional
Approximate Weight 37 kg
3. Working Principle
Driven by the engine, main shaft and cylinder block rotate synchronously. Reciprocating motion of pistons completes oil suction and high-pressure oil discharge cycle.
Servo piston automatically adjusts swashplate tilt angle based on system load signals, changes pump displacement and regulates output flow to match load demands.
The integrated pilot gear pump supplies stable pilot pressure for pilot control circuit, matching pilot joysticks and foot pedal valves to realize all excavator operation movements.
4. Core Advantages
1. Compact integrated tandem structure combining main pump and pilot pump, perfectly adapted to the limited installation space of 8-ton mini excavators Hyundai R80 & Doosan DH80.
2. Precisely machined internal friction pairs, low internal leakage and high volumetric efficiency under continuous heavy-duty operation.
3. Optimized negative flow control system, excellent power matching with engine, effectively reducing fuel consumption and system heat generation.
4. High-strength cast pump housing, shock-resistant and anti-vibration, suitable for municipal works, pipeline construction and landscaping projects.
5. Mounting flange, spline shaft and oil port layout fully consistent with OEM pump, plug-and-play direct replacement without pipeline modification.
6. Mature aftermarket replacement assembly with shorter delivery lead time than original genuine hydraulic parts.
5. Application Range
Main hydraulic main pump for 8-ton mini crawler excavators:
Hyundai R80, Doosan DH80
Widely applied in municipal engineering, landscaping, pipeline laying, small earthmoving and indoor demolition operations.
