HPV145 Hydraulic Pump For ZAX330-3
5 week ago
Product details

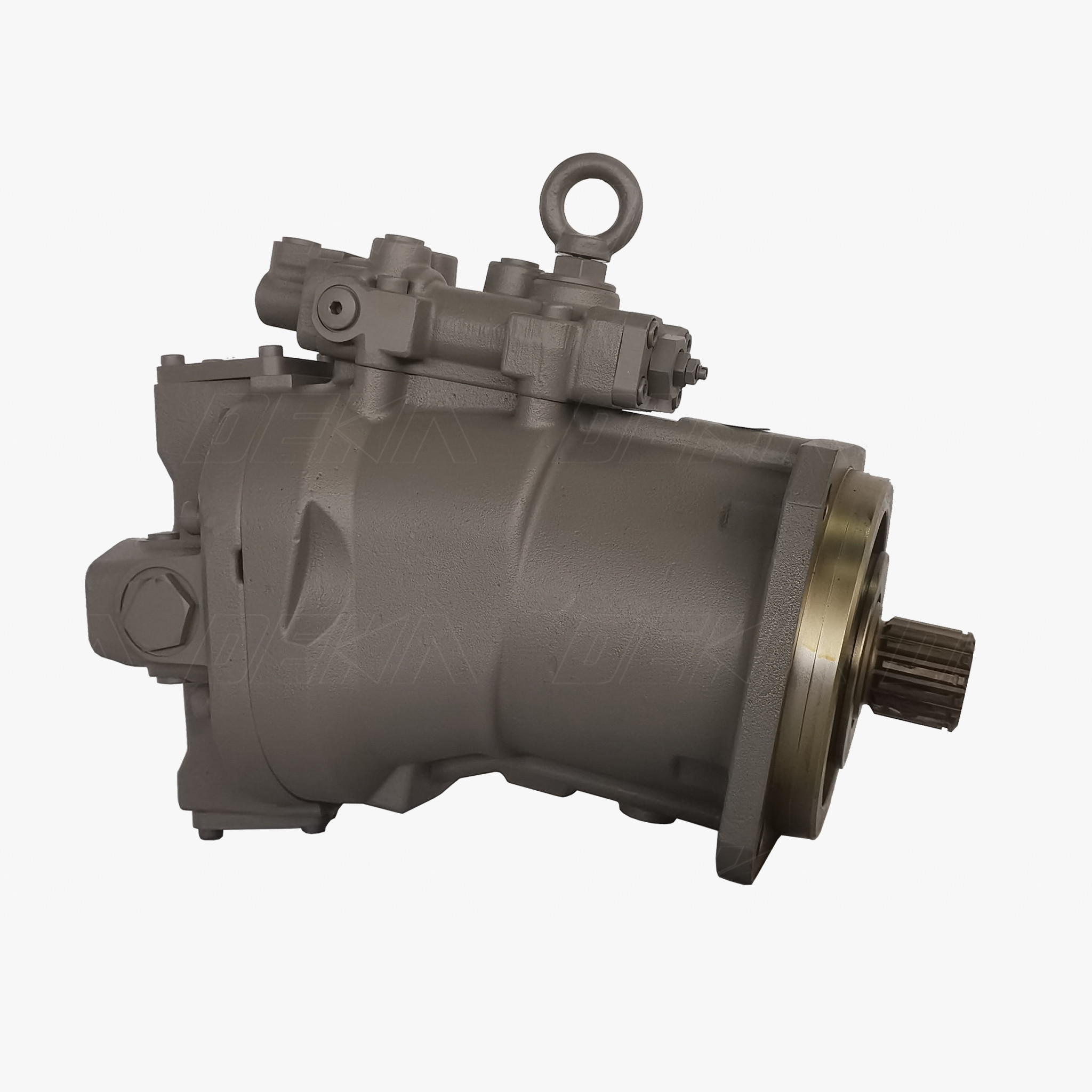

HPV145 Hydraulic Pump For ZAX330-3
1. Product Overview
HPV145 is a swashplate tandem variable axial piston pump, serving as the core hydraulic power assembly for Hitachi ZAX330-3 large crawler excavator.
This double-pump integrated structure is equipped with negative flow control regulators and built-in pilot gear pump, matched with Hitachi HIOS III hydraulic system. It outputs high-pressure hydraulic oil to drive boom, arm, bucket, slewing and travelling hydraulic actuators of the excavator. High-quality interchange aftermarket pump assembly can directly replace OEM pump for equipment maintenance and overhaul.
OEM Part No.:9195242、9207291、9256100、9257309
Model Code Explanation
- HPV：NACHI series variable axial piston pump specially matched for Hitachi excavators
- 145：Single pump displacement specification:145 cc/rev
- Application: Hitachi ZAX330-3 Crawler Excavator, also compatible with ZAX350-3 series
2. Main Technical Parameters
Item Specification
Pump Type Tandem Variable Displacement Axial Piston Pump
Control Mode Negative flow control
Rated Working Pressure 34.3 MPa
Maximum Boost Pressure 36.3 MPa
Rated Rotating Speed 1900 rpm
Maximum Operating Speed 2100 rpm
Rotation Direction Clockwise (viewed from shaft end)
Spline Shaft 15 teeth
Built-in Accessory Integral pilot gear pump
Applicable Hydraulic Oil ISO VG46 anti-wear hydraulic oil
Operating Temperature -20℃ ~ +92℃
Seal Material NBR; FKM high-temperature sealing kit optional
Approximate Weight 172 kg
Compatible Machine Hitachi ZAX330-3 Excavator
3. Working Principle
The engine drives the main shaft and cylinder block to rotate synchronously. The reciprocating motion of pistons forms continuous oil suction and high-pressure discharge circulation.
The negative flow regulator automatically adjusts the tilt angle of the swashplate according to the feedback signal pressure from the main control valve, changes pump displacement and adjusts output flow to match real-time load demand. Optimized power matching reduces overflow loss, lowers fuel consumption and controls hydraulic oil temperature.
The complete hydraulic system realizes all composite operations including excavation, lifting, travelling and slewing of large excavator.
4. Core Advantages
1. Specially calibrated for Hitachi ZAX330-3 excavator; mounting flange, spline shaft and oil port layout are fully consistent with original pump, supporting direct plug-and-play replacement.
2. Precisely machined internal friction pairs, low internal leakage, maintaining stable volumetric efficiency under long-term continuous heavy-load mining and earthmoving operation.
3. Mature negative flow control system matched with HIOS III hydraulic system, excellent power matching with Isuzu 6HK1 engine, effectively reducing system heat generation and fuel consumption.
4. High-strength cast pump housing, outstanding shock and vibration resistance, suitable for quarry mining, heavy earthwork and infrastructure construction.
5. Stable flow output, small flow pulsation, smooth compound movement and comfortable operating feel.
6. Reliable aftermarket replacement assembly with shorter delivery lead time compared with original genuine hydraulic pump.
5. Application Range
Main hydraulic pump for Hitachi large crawler excavator:
Hitachi ZAX330-3, interchangeable for ZAX350-3 series excavators.
Widely used in quarry exploitation, heavy earthmoving, road construction, stockyard loading and large infrastructure projects.
6. Common Faults & Replacement Suggestion
Typical failures: Insufficient digging force, slow compound movements, excessive hydraulic oil temperature, abnormal knocking noise, shaft seal leakage.
Thoroughly flush all hydraulic pipelines and replace all hydraulic filter elements before installation. Strictly ensure hydraulic oil cleanliness to prevent impurities from scratching cylinder block, piston shoes and valve plate. Fill pump housing with clean hydraulic oil before startup to avoid dry grinding damage. Replace complete pump assembly if serious internal abrasion occurs.
