K3SP36B Hydraulic Pump For SK60SR/70SR
5 week ago
Product details

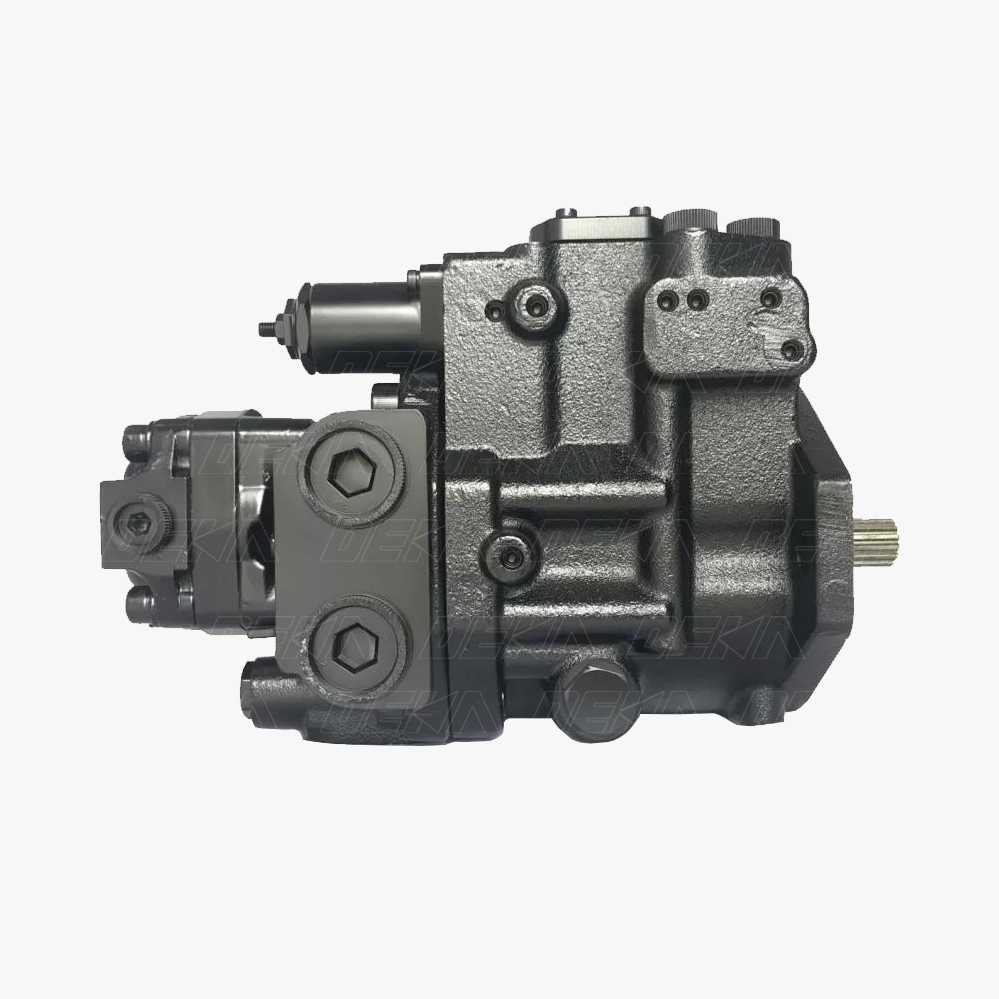

K3SP36B Hydraulic Pump For SK60SR/70SR
1. Product Overview
K3SP36B is Kawasaki swashplate tandem variable axial piston pump, serving as core hydraulic power assembly for Kobelco SK60SR, SK70SR compact crawler excavators.
Adopting integrated dual-pump structure, matched with built-in pilot gear pump. It supplies high-pressure hydraulic oil to drive boom, arm, bucket, slewing and travelling hydraulic actuators. High-quality interchange aftermarket pump assembly can directly replace OEM pump for equipment maintenance and overhaul.
OEM Part No.: YT10V00002F2、YT10V00002F1
Complete model: K3SP36B-101R-2001
Model Code Explanation
- K3SP：Kawasaki compact series variable axial piston pump
- 36：Single pump displacement:36 cc/rev
- B：Structure & control configuration code
- Application: Kobelco SK60SR, SK70SR mini excavator
2. Main Technical Parameters
Item Specification
Pump Type Tandem Variable Displacement Axial Piston Pump
Control Mode Load sensing control
Rated Working Pressure 28.0 MPa
Maximum Peak Pressure 29.4 MPa
Rated Rotating Speed 2100 rpm
Maximum Operating Speed 2300 rpm
Rotation Direction Clockwise (viewed from shaft end)
Spline Shaft 15 teeth
Built-in Accessory Integral pilot gear pump
Applicable Hydraulic Oil ISO VG46 anti-wear hydraulic oil
Operating Temperature -20℃ ~ +88℃
Seal Material NBR; FKM high-temperature sealing kit optional
Approximate Weight 38 kg
Compatible Machine Kobelco SK60SR, SK70SR Excavator
3. Working Principle
The engine drives main shaft and cylinder block to rotate synchronously. Reciprocating motion of pistons forms continuous oil suction and high-pressure discharge circulation.
The load-sensing regulator automatically adjusts swashplate tilt angle according to system load signal, changes pump displacement and adjusts output flow to match real-time load demand. Optimized power matching reduces overflow loss, lowers fuel consumption and stabilizes hydraulic oil temperature.
The whole hydraulic system realizes composite operations including excavation, lifting, travelling and slewing of mini excavator.
4. Core Advantages
1. Specially calibrated for Kobelco SK60SR / SK70SR; mounting flange, spline shaft and oil port layout fully consistent with original pump, supporting direct plug-and-play replacement.
2. Precisely machined internal friction pairs, low internal leakage, maintaining stable volumetric efficiency under long-term continuous operation for urban narrow-site construction.
3. Mature load-sensing control system, excellent power matching with original engine, effectively reducing system heat generation and fuel consumption.
4. Compact overall structure, high-strength cast pump housing, outstanding shock and vibration resistance, suitable for municipal engineering, landscaping, indoor demolition and narrow space operation.
5. Stable flow output, small flow pulsation, smooth compound movement and comfortable operating feel.
6. Reliable aftermarket replacement assembly with shorter delivery lead time compared with original genuine hydraulic pump.
5. Application Range
Main hydraulic pump for Kobelco compact crawler excavator:
Kobelco SK60SR, SK70SR
Widely used in municipal pipeline construction, landscaping, urban renovation, indoor demolition and small earthmoving projects.
6. Common Faults & Replacement Suggestion
Typical failures: Insufficient digging force, slow compound movements, excessive hydraulic oil temperature, abnormal knocking noise, shaft seal leakage.
Thoroughly flush all hydraulic pipelines and replace all hydraulic filter elements before installation. Strictly ensure hydraulic oil cleanliness to prevent impurities from scratching cylinder block, piston shoes and valve plate. Fill pump housing with clean hydraulic oil before startup to avoid dry grinding damage. Replace complete pump assembly if serious internal abrasion occurs.
