Y-HG1 Series Standard Hydraulic Cylinders for Metallurgical Equipment
4 week ago
Product details

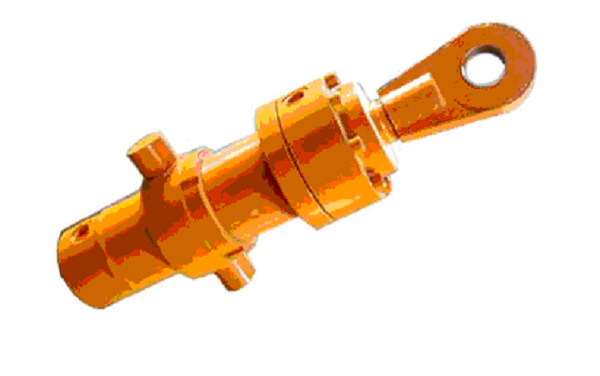

Y-HG1 Series Standard Hydraulic Cylinders for Metallurgical Equipment
1. Product Overview
Y-HG1 series hydraulic cylinder is a national standard heavy-duty hydraulic actuator specially designed for metallurgical machinery, implemented in accordance with domestic metallurgical cylinder specifications.
This series belongs to medium-high pressure standard hydraulic cylinder, widely matched with rolling mills, continuous casting equipment, smelting auxiliary machinery, steel conveying equipment and other metallurgical production lines. Adopt modular assembly structure, standardized installation dimensions, strong interchangeability. The cylinder can withstand harsh working conditions such as high temperature, dust and frequent reciprocating motion. High-quality aftermarket and OEM cylinders can be customized and supplied for metallurgical equipment upgrading and maintenance replacement.
Y‑HG1 Series Standard Hydraulic Cylinders are widely‑used industrial Hydraulic Cylinder. As the executive component of hydraulic system, they convert hydraulic energy into mechanical thrust and pull force for different kinds of Machine
Model Code Explanation
- Y-HG1: Series code for standard hydraulic cylinder for metallurgical equipment
- Y: Metallurgical service condition; HG: Hydraulic cylinder; 1: First-generation standard structure
- Multiple mounting forms available: front flange, rear flange, trunnion, earring installation
2. Main Technical Parameters
Item Specification
Series Model Y-HG1 Series Standard Metallurgical Hydraulic Cylinder
Rated Working Pressure 16 MPa
Max Allowable Pressure 20 MPa
Working Medium ISO VG46, VG68 anti-wear hydraulic oil, fire-resistant hydraulic fluid optional
Operating Temperature -20℃ ~ +85℃ (High temperature resistant sealing version up to 120℃)
Stroke Range Customizable according to customer requirements
Bore Diameter Range 40mm ~ 320mm
Rod Diameter Range 22mm ~ 220mm
Surface Treatment Cylinder barrel: honing treatment; Piston rod: hard chrome plating
Seal Options NBR; PU composite seals; FKM high temperature sealing assembly optional
Mounting Types Front flange, rear flange, single trunnion, double trunnion, spherical earring
3. Working Principle
Hydraulic oil enters the rodless chamber or rod chamber of the cylinder to push the piston assembly. The piston drives the piston rod to perform linear reciprocating output.
By switching the direction of hydraulic oil supply, the extension and retraction action of the cylinder can be realized to complete clamping, pushing, lifting, turnover and other actions of metallurgical equipment.
The built-in sealing system prevents internal and external leakage. Buffer structure can be configured at both ends upon request to reduce impact during stroke end.
4. Core Advantages
1. Standard Y-HG1 metallurgical cylinder specification, unified installation dimensions, good versatility and interchangeability, convenient equipment matching and spare parts replacement.
2. Precision honed seamless steel cylinder tube, low friction, stable sealing performance, effectively reducing internal leakage under long-term continuous reciprocating operation.
3. Piston rod adopts medium-frequency quenching and thick hard chrome plating, outstanding wear resistance and anti-corrosion performance, adapting to dusty metallurgical workshop environment.
4. Multiple installation forms are optional, flexible layout to meet different structural requirements of rolling mills, continuous casting machines and conveying equipment.
5. Optional high-temperature resistant sealing components, can adapt to the thermal radiation environment near metallurgical furnaces.
6. Stable structure, strong anti-bias load capacity; support non-standard stroke and non-standard bore customized production, short delivery cycle.
5. Application Range
Y-HG1 standard hydraulic cylinders are widely used in various metallurgical production equipment:
Steel rolling production line, continuous casting machinery, steel billet conveying equipment, clamping mechanism, turnover device, lifting platform, furnace door driving mechanism, shearing equipment and auxiliary metallurgical machinery.
Also suitable for heavy machinery, mining equipment and large automatic production lines with similar working conditions.
6. Installation & Maintenance Suggestion
- Keep hydraulic oil clean; install oil filter to avoid particles scratching cylinder barrel and piston rod surface.
- Prevent eccentric load during operation; long-stroke cylinders can be equipped with guide supports to avoid rod bending.
- Regularly inspect dust wiper and rod seals; replace damaged seals in time to prevent dust intrusion and oil leakage.
- If frequent impact occurs at stroke end, configure built-in or external buffer devices to extend cylinder service life.
