Fully Automatic AB Adhesive Potting and Dispensing Machine
Servo Metering for Accurate AB Adhesive Control

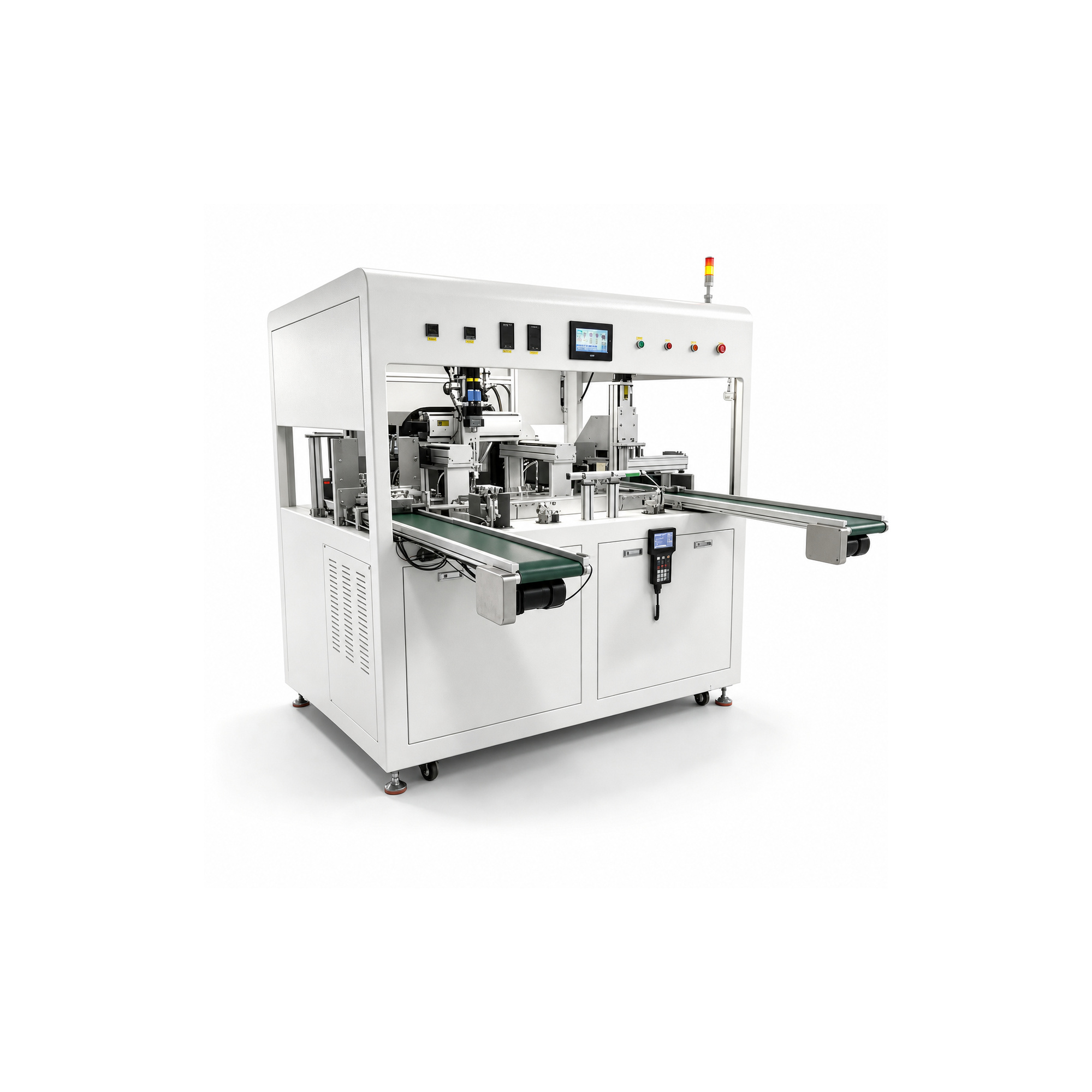

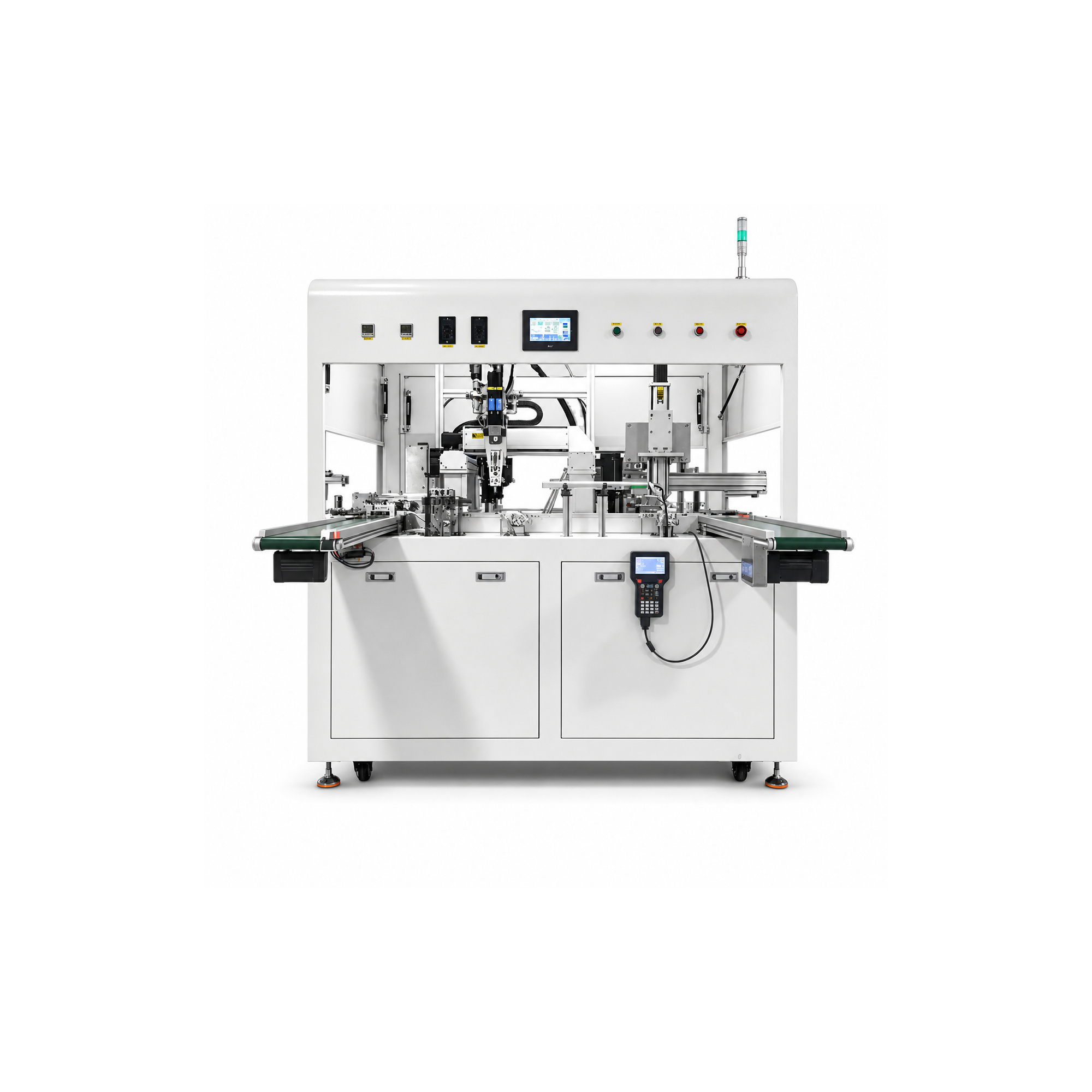

The Fully Automatic AB Adhesive Dispensing Machine is designed for production processes that need controlled mixing, potting, sealing or bonding with two-component adhesives. It uses a servo motor and screw valve for metering, giving operators direct control over the amount of A and B material being delivered. The mixing ratio can be set from 1:1 to 10:1, while the system displays the actual ratio data on the touchscreen to make process checks easier.
| Parameter | Specification |
| Model | MZ-AB-D |
| Z-axis Load | 6KG |
| Mixing Ratio | 1:1 ~ 10:1 (optional) |
| Potting Accuracy | ±0.02g |
| Repeat Positioning Accuracy | ±0.05mm |
| Metering Accuracy | ±0.02g |
| Ratio Accuracy | ±0.02g |
| Input Air Pressure | 0.4–0.8MPa |
| Working Air Pressure | 0.4–0.6MPa |
| AB Mixing Type | Dynamic mixing / Static mixing |
| AB Material Tank Heating | Ambient ~ 60℃ |
| AB Material Tank Stirring | Timed & constant speed |
| AB Material Tank Vacuum | Automatic vacuum feeding |
| Total Power | 2400W under normal operation |
| Travel X/Y/Z | 500/300/100mm (customizable) |
| Moving Speed | X&Y:500mm/s, Z:400mm/s |
| Metering Method | Servo motor + screw valve |
| A/B Tank Capacity | 30L, with stirring, heating & vacuum defoaming |
| Vacuum Feeding Pump | AC220V/50HZ (optional) |
| AB Discharge Rate | 0.5~50g/s, digitally adjustable |
| Motor System | Servo motor + AC motor |
| AB Dispensing Head | 1~4 heads optional |
| Dimension | 1800×1500×1955mm |
| Transmission | Timing belt / Ball screw + linear guide rail |
| Control System | PLC + HMI touch screen + single-chip microcomputer |
| Working Temperature | 5~40°C |
| Working Humidity | 20~90%, non-condensing |
| Power Supply | AC220V 50HZ |
Each A/B material tank holds 30L and supports timed stirring, heating and automatic vacuum feeding. Tank temperature can be adjusted from room temperature to 60°C, which helps maintain suitable material flow before dispensing. The machine can work with epoxy, polyurethane, silicone and other two-component materials, making it a practical Two Component Metering AB Adhesive Dispenser for different production requirements.
Flexible Dispensing for Different Workpieces
The machine supports both dynamic and static mixing, with dispensing speeds digitally adjustable from 0.5 to 50 g/s according to the adhesive. It can handle point dispensing, line application and full-surface potting, while one to four dispensing heads can be selected for different production layouts. The X/Y/Z travel is 500/300/100 mm and can be customized, with movement speeds up to 500 mm/s on X/Y and 400 mm/s on Z.
With ±0.02 g dispensing accuracy and ±0.05 mm repeatability, the Precision Screw Type AB Adhesive Dispenser is suitable for applications where material quantity needs to stay consistent from one workpiece to the next. The system uses synchronous belt or screw transmission with linear guides, while PLC, HMI and microcontroller control keep parameter adjustment straightforward. It can also be integrated into a CNC dispensing machine setup when more automated movement is required.
Easier Operation and Cleaner Production
The touchscreen lets operators enter the A material amount and have the system calculate the matching B amount automatically. Different ratio settings can be saved for later use, reducing repeated setup work when changing products. Real-time A/B data display also makes abnormal ratios easier to spot. Combined with automatic dispensing, the equipment can serve as a 2 part epoxy dispensing machine for electronics, connectors, LED products, circuit boards and other components.
Material management is another practical part of the design. Liquid levels are monitored during operation, and the system can give alarms for low adhesive or ratio problems. An anti-curing design is available with automatic cleaning and circulation functions to help keep the material paths clear. With a normal operating power of 2400W and AC220V 50Hz input, the machine offers a straightforward setup for continuous factory production.
Why Choose Mingzheng
Mingzheng focuses on matching the dispensing system to the customer's adhesive and production process rather than using one fixed configuration for every project. For this model, the metering method, mixing valve, dispensing heads, working range and material handling functions can be adjusted according to the application. From equipment manufacturing to commissioning and process setup, Mingzheng provides practical support for customers building or upgrading an automated dispensing line.
