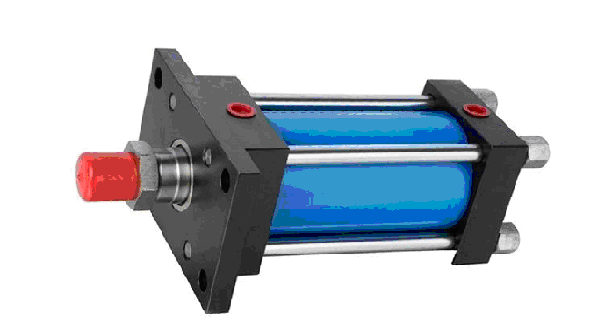

CJT Type JIS Standard Hydraulic Cylinder (35kgf/cm² /3.5MPa)

Product Overview

CJT35‑series hydraulic cylinder follows JIS B8354 Japanese industrial standard, nominal working pressure 35kgf/cm² (3.5MPa) . Originally designed for machine‑tool equipment, widely adopted in general‑purpose industrial machinery. Multiple mounting styles are available. Optimized cushioning mechanism delivers smooth stop performance during reciprocating movement. Optional proximity‑switch version for position detection. Dual‑acting tie‑rod hydraulic cylinder for low‑pressure hydraulic system 。

Main Technical Parameters

Item Specification

Series Model CJT35

Nominal Pressure 3.5 MPa (35 kgf/cm²)

Max Allowable Pressure 4.5 MPa

Proof Test Pressure 5.0 MPa

Minimum Working Pressure 0.2 MPa

Bore Size(mm) 32,40,50,63,80,100,125,160[(太原重型机...)]

Max Stroke(mm) 1000‑1800 (depends on bore size, limited by rod buckling)

Speed Range 8 ~ 300 mm/s

Mounting Forms SD,LA,LB,FA,FB,CA,CB,TA,TC

Cushion Option B‑both‑side cushion；R‑rod‑side cushion；H‑head‑side cushion；N‑no cushion

Ambient Temperature ‑10℃ ~ +80℃

Standard Thread JIS B0211

Sealing Nitrile rubber standard, high‑temperature seal optional

Working Principle

Double‑acting tie‑rod hydraulic cylinder. Hydraulic oil alternately enters rod‑side and cap‑side chamber to realize extend‑retract motion. Built‑in adjustable cushion at cylinder ends absorbs kinetic energy, reduces impact and noise when piston reaches stroke end, avoiding mechanical collision. Optional proximity switch detects piston position without external sensor bracket 。

Core Advantages

1. Fully comply with JIS B8354 standard, interchangeable with original YUKEN CJT35 series.

2. Rich mounting configurations, adapt to various equipment layout requirements.

3. Improved cushioning structure, stable low‑speed movement, little stopping impact.

4. Tie‑rod construction, easy disassembly and seal maintenance.

5. Multiple optional accessories: dust‑cover, lock‑nut, eye‑joint assembly, proximity switch.

6. Suitable for low‑pressure hydraulic circuit, long service life for general‑industry cycle operation.

Typical Application

Machine tools, printing machinery, packaging equipment, light‑industry automation, conveying machinery, low‑pressure general‑purpose hydraulic station system.

Short Version (for quotation & BOM)

CJT Type JIS Standard Hydraulic Cylinder, Nominal Pressure 35kgf/cm²(3.5MPa)

Double‑acting tie‑rod cylinder conforming to JIS‑B8354. Bore 32‑160 mm, multiple mounting types, adjustable end‑cushioning. Widely used for machine‑tool and general industrial low‑pressure hydraulic system. Optional proximity‑switch for position signal.
