Black Heat Resistant Nylon SMT Dual AA Holder
3 week ago
Product details

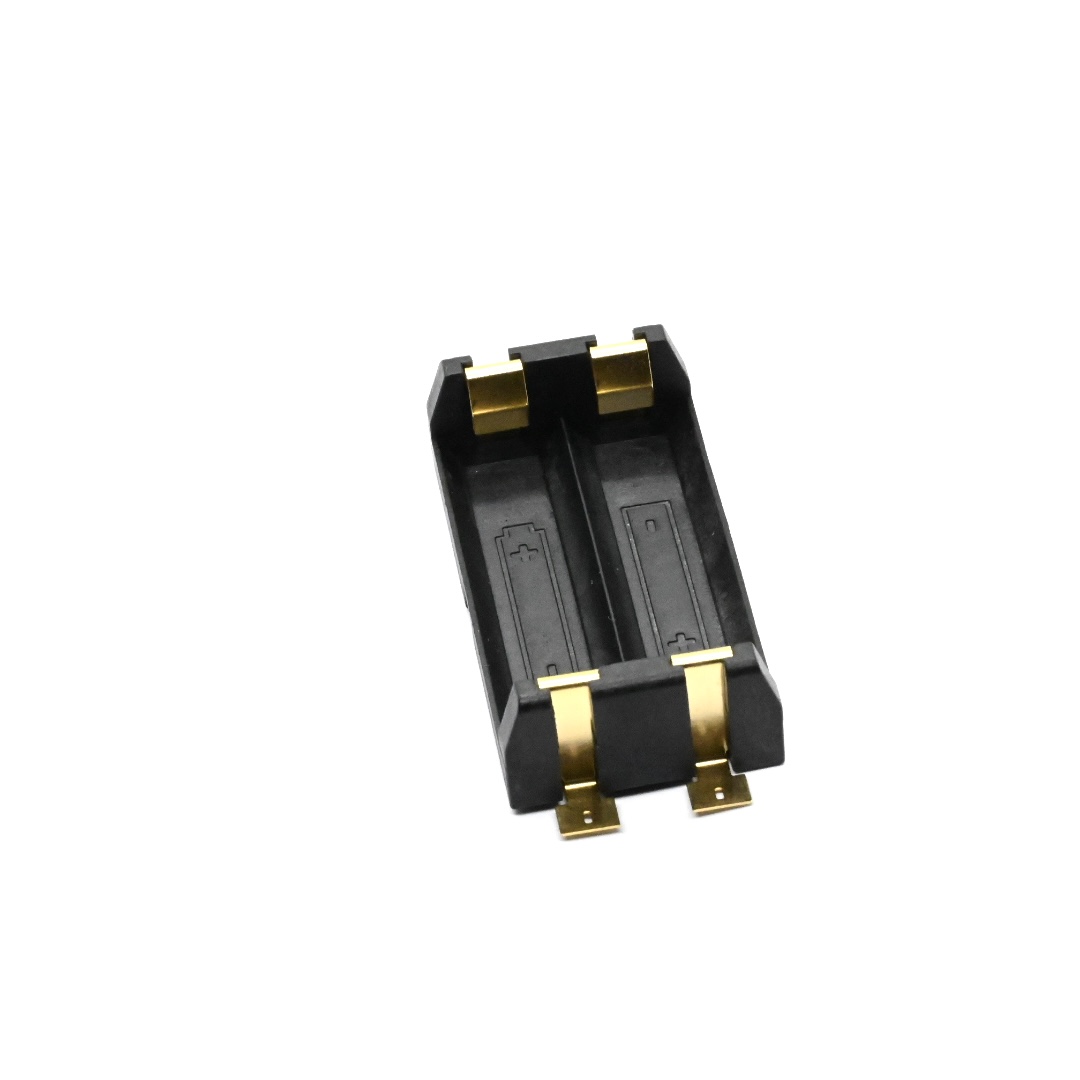

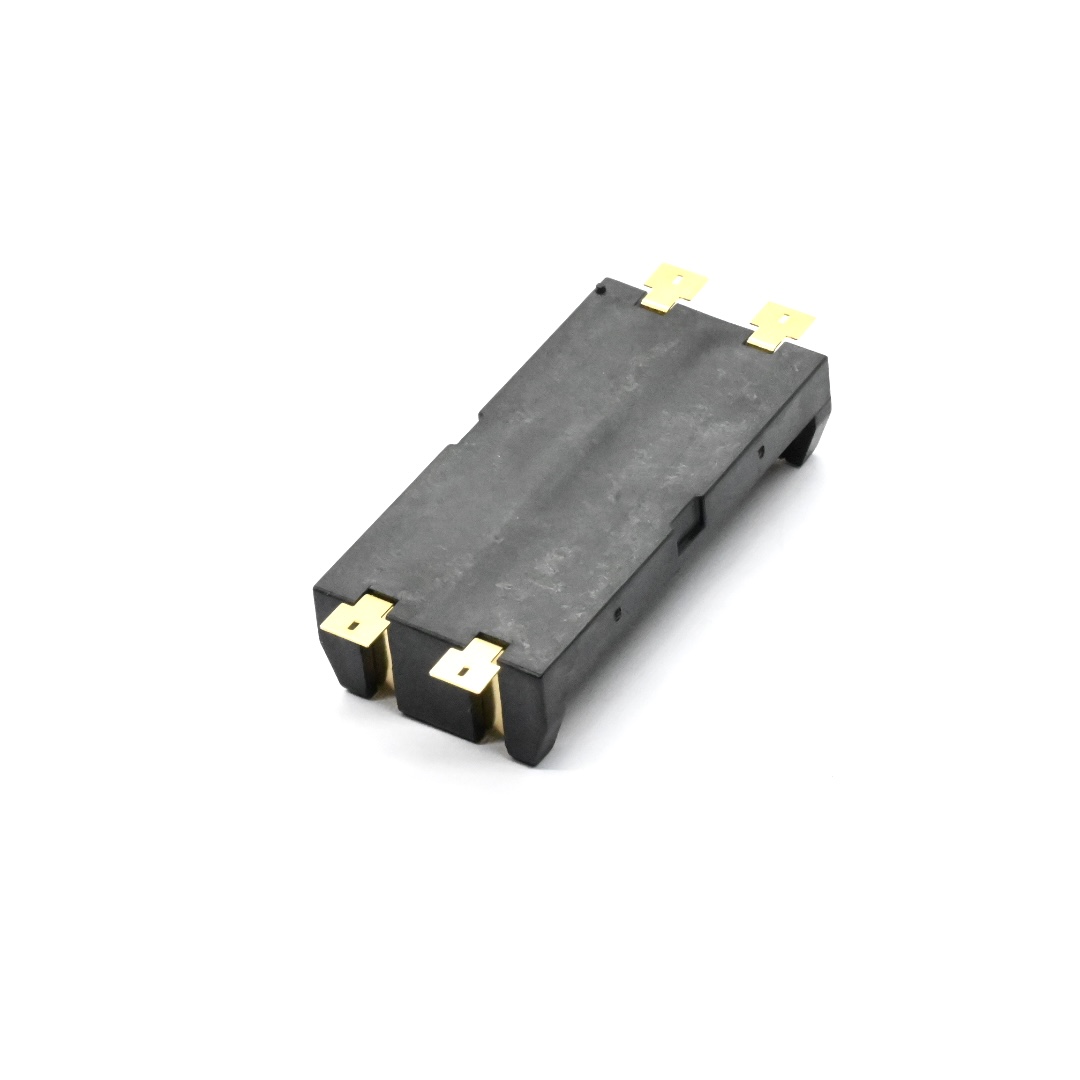

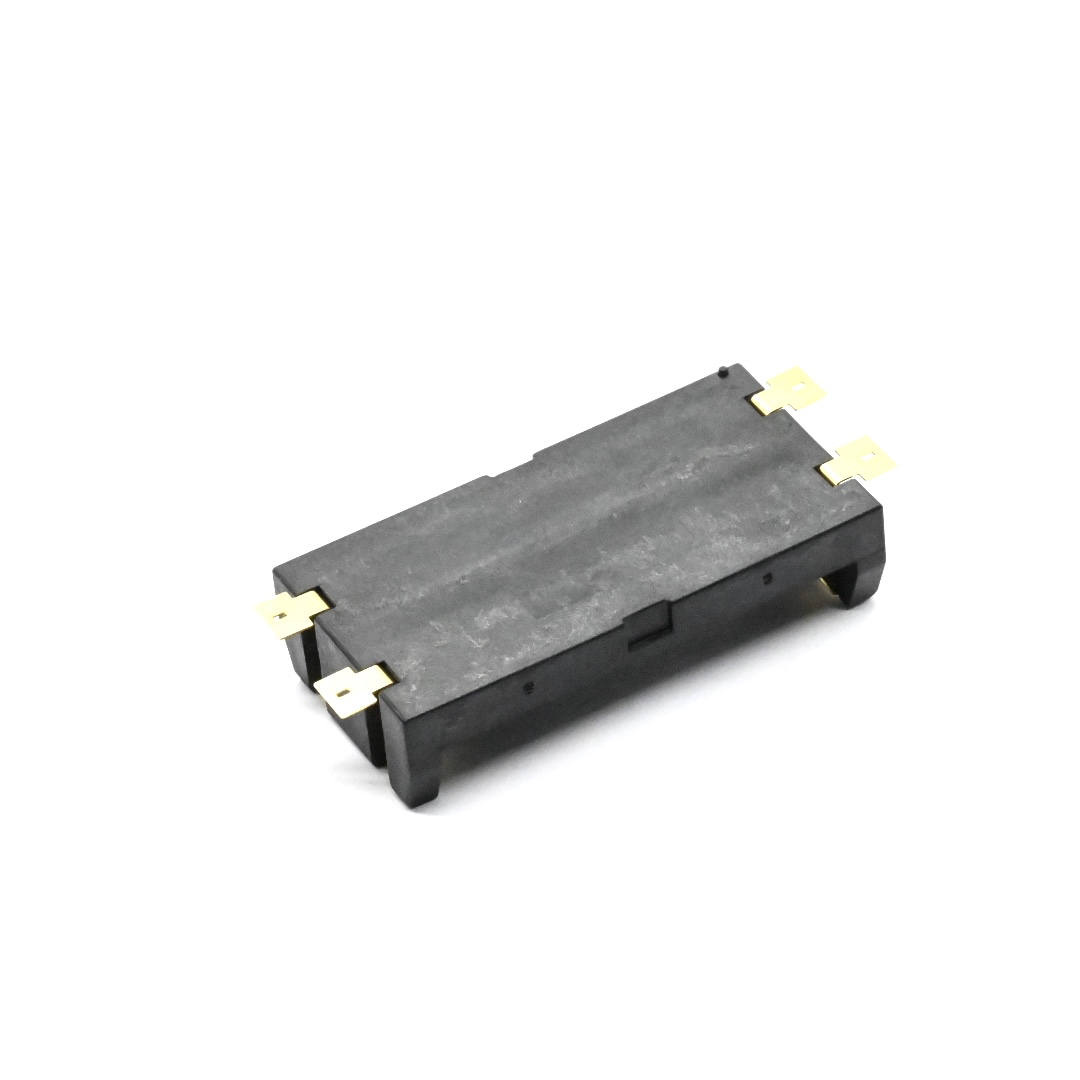

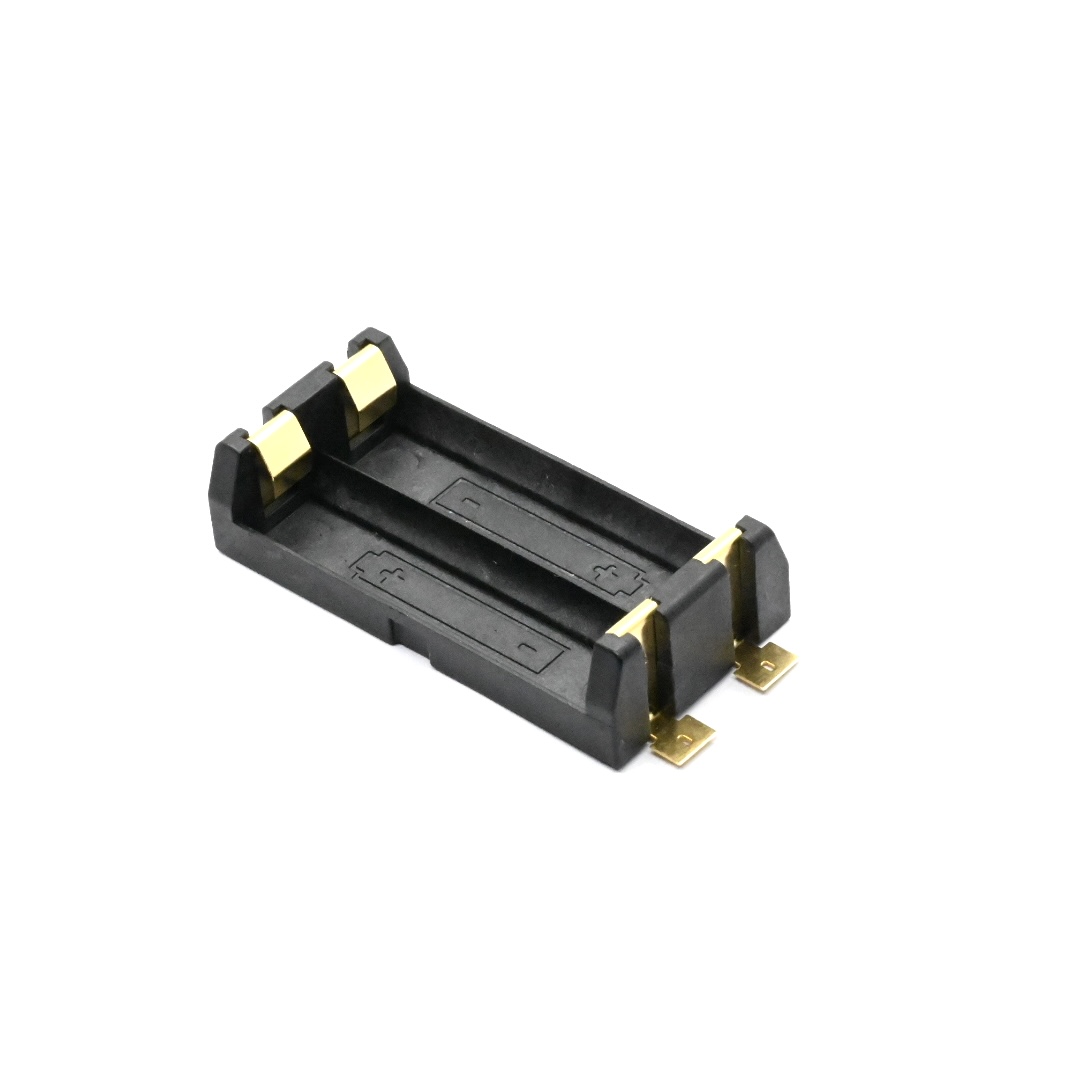

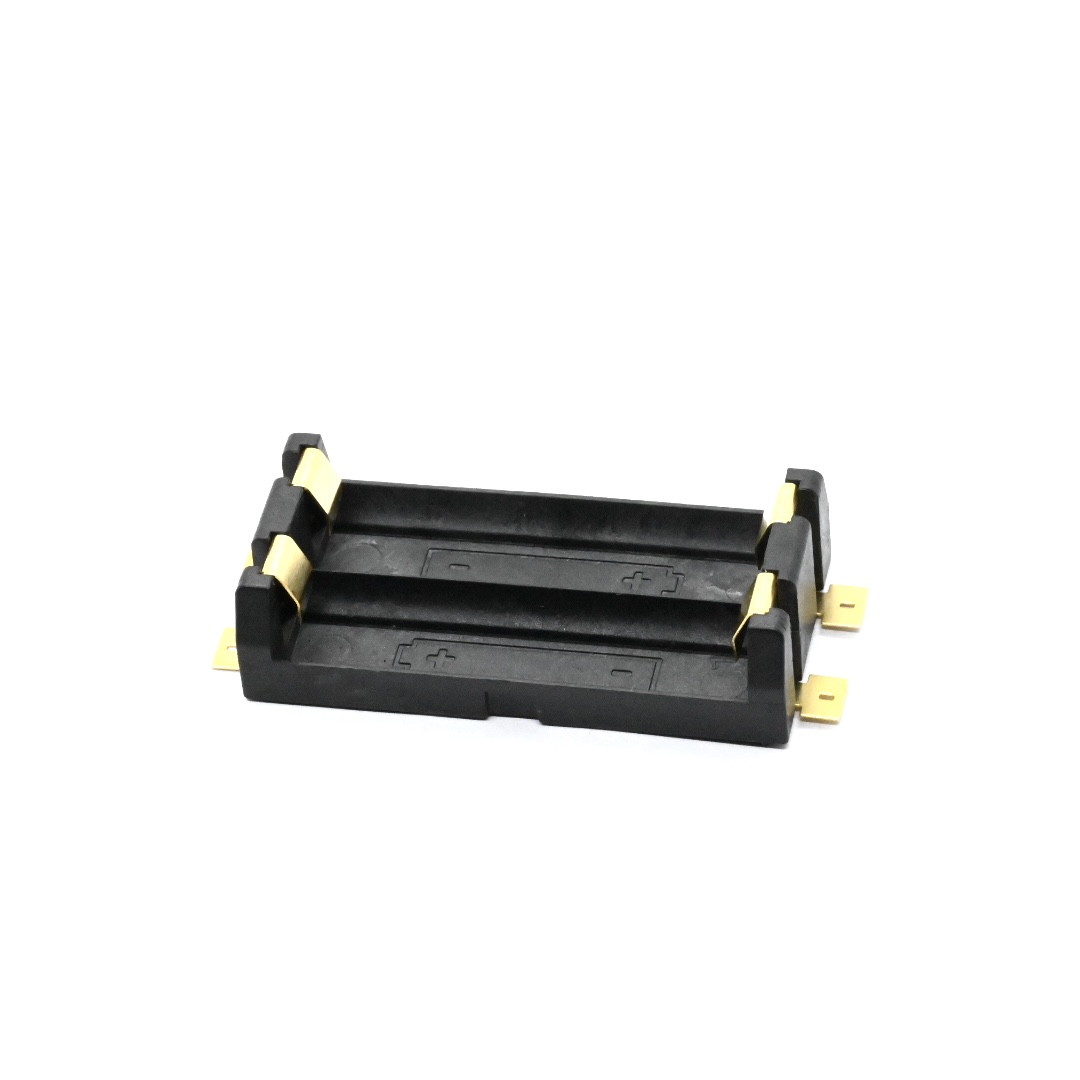

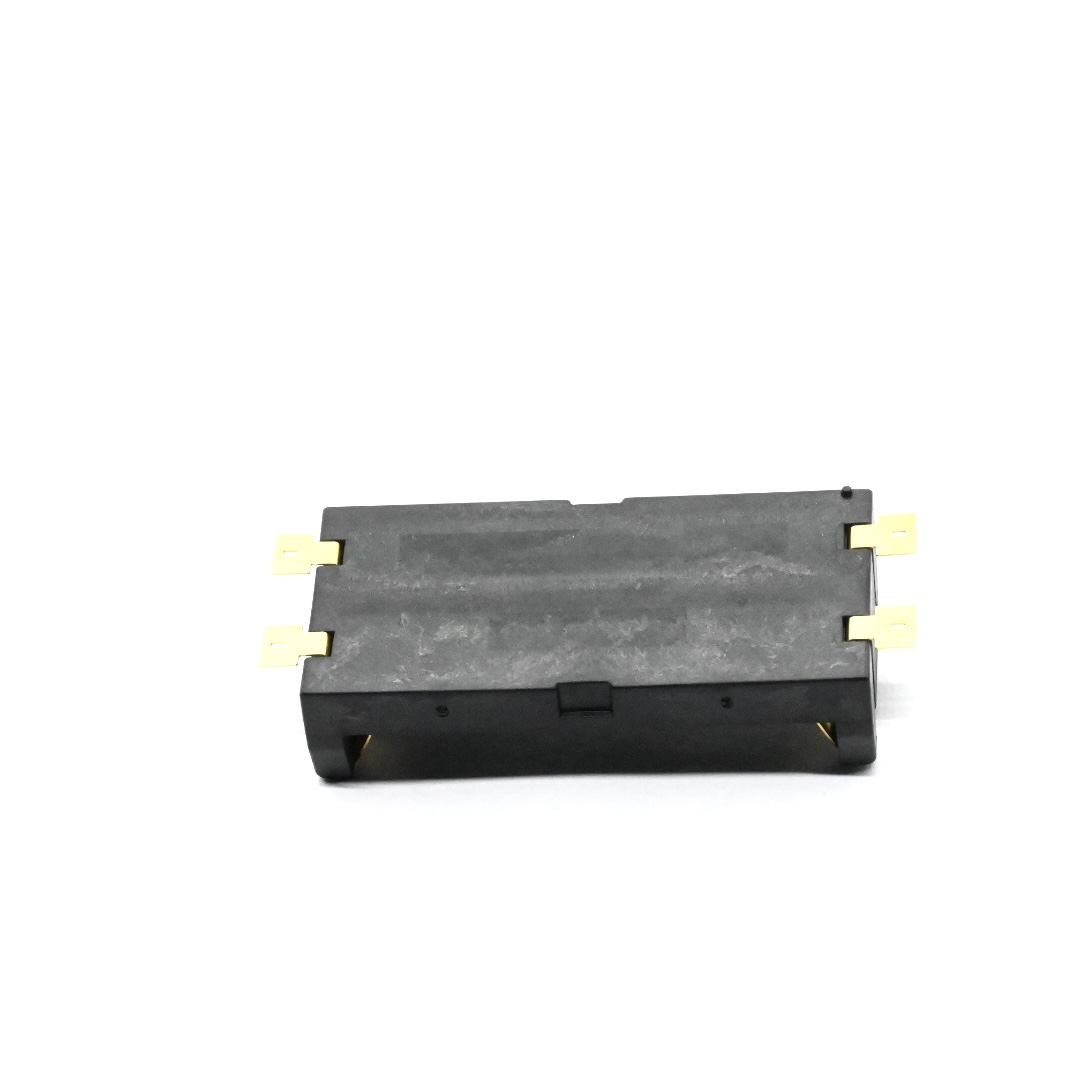

Huizhou Antenk Electronics Co., Ltd. manufactures BBC-M-G0-A-2AA-012 SMT dual AA battery holder specially designed to stably fix two AA cylindrical batteries and realize reliable power transmission on PCB circuit boards. This battery holder adopts black heat resistant nylon as insulating base shell, matched with 0.30mm thick stainless steel contact terminals finished with nickel underlayer plus standard gold flash plating, and buyers can select multiple optional gold plating specifications ranging from 3 micro inch to 30 micro inch gold to strengthen anti-corrosion ability and maintain low stable contact resistance under long-term complex working conditions. It is M-type SMT surface mount structural design with dedicated standardized PCB mounting pad layout, supporting two packaging modes including tray packing and bag packing to satisfy manual assembly operation and small batch stocking demands. This dual AA SMT battery holder is widely applied in digital cameras communication equipment industrial control sensors smart home appliances electronic toys and precision measuring instruments. Operators must strictly follow official PCB pad dimension standards during reflow soldering processing, avoid excessive bending pressure on stainless steel contacts to prevent permanent elastic deformation and store finished holders in dry warehouse environment to prevent oxidation damage to nickel gold plating layers. Unlike many competitors that outsource plastic injection molding and metal terminal stamping procedures Antenk carries out full in house production workflow covering independent precision mold development stainless steel terminal high speed stamping heat resistant nylon injection molding nickel gold electroplating and complete laboratory electrical and dimensional reliability testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications and fully complying with RoHS HSF and REACH international environmental protection standards. We own massive self-developed plastic and metal precision molds, provide customizable plating and packaging scheme services, offer round-the-clock professional technical support, and more than seventy percent of our battery holders are exported worldwide supported by our Guangdong Famous Trademark ANTENK and consistent stable mass production quality.
Gold Flash Nickel Base Stainless Terminal delivers low contact resistance and excellent anti-oxidation performance for long-term AA battery connection.
High Temp Nylon Dual AA Battery Base withstands high reflow soldering temperature without deformation and provides reliable insulation protection.
Two-Cell SMT AA Conductive Socket adopts standard surface mount design to achieve fast automated assembly on printed circuit boards.
1. Material & Surface Plating
1.1 Base housing: Black heat resistance nylon
1.2 Contact material: 0.30mm thick stainless steel
1.3 Standard plating finish: Nickel underlayer + gold flash
1.4 Optional plating choices: Pure nickel, tin, 3μ",5μ",10μ",15μ",30μ" gold plating
2. Product Model & Matching Battery
2.1 Mounting type: M = SMT surface mount type
2.2 Capacity: Dual slot for two AA batteries
2.3 Product model code: 2AA-012
3. Dimension & Universal Tolerance (Unit: mm)

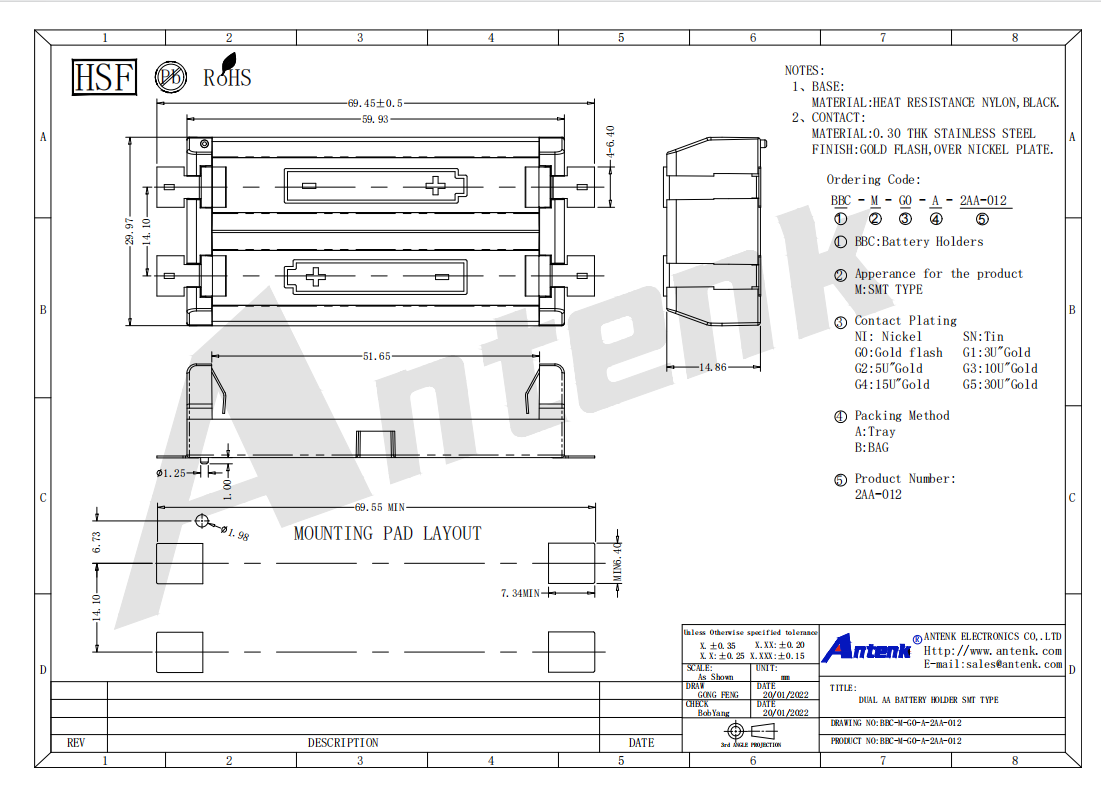

3.1 Overall outline dimensions: 69.45±0.5, 69.55 MIN, 59.93, 51.65, 29.97, 14.86, 14.10
3.2 PCB mounting pad sizes: MIN 7.34, MIN 6.40, 6.73, 4-6.40, 1.98, 1.25, 1.00
3.3 Dimensional tolerance rules
3.3.1 Integer X. : ±0.35
3.3.2 Single decimal X.X : ±0.25
3.3.3 Two decimals X.XX : ±0.20
3.3.4 Three decimals X.XXX : ±0.15
4. Order Code Breakdown & Packaging Options
4.1 Code definition: BBC=Battery Holders, M=SMT TYPE, G0=Gold flash plating, A=Tray packing, 2AA-012=product serial number
4.2 Two available packing modes
4.2.1 A: Tray Packing
4.2.2 B: Bag Packing
5. Environmental Compliance
5.1 Meet lead-free, RoHS and HSF standards
6. Application Scenarios
6.1 Digital cameras
6.2 Communication equipment
6.3 Industrial control sensors
6.4 Smart home appliances
6.5 Electronic toys
6.6 Precision measuring instruments
7. Usage Precautions
7.1 Complete reflow soldering strictly following the official PCB mounting pad layout
7.2 Avoid heavy bending force to prevent irreversible deformation of stainless steel contact springs
7.3 Store finished holders in dry warehouse to avoid oxidation of nickel and gold plating layers
7.4 Only install standard AA batteries to guarantee stable conductive performance
FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.
