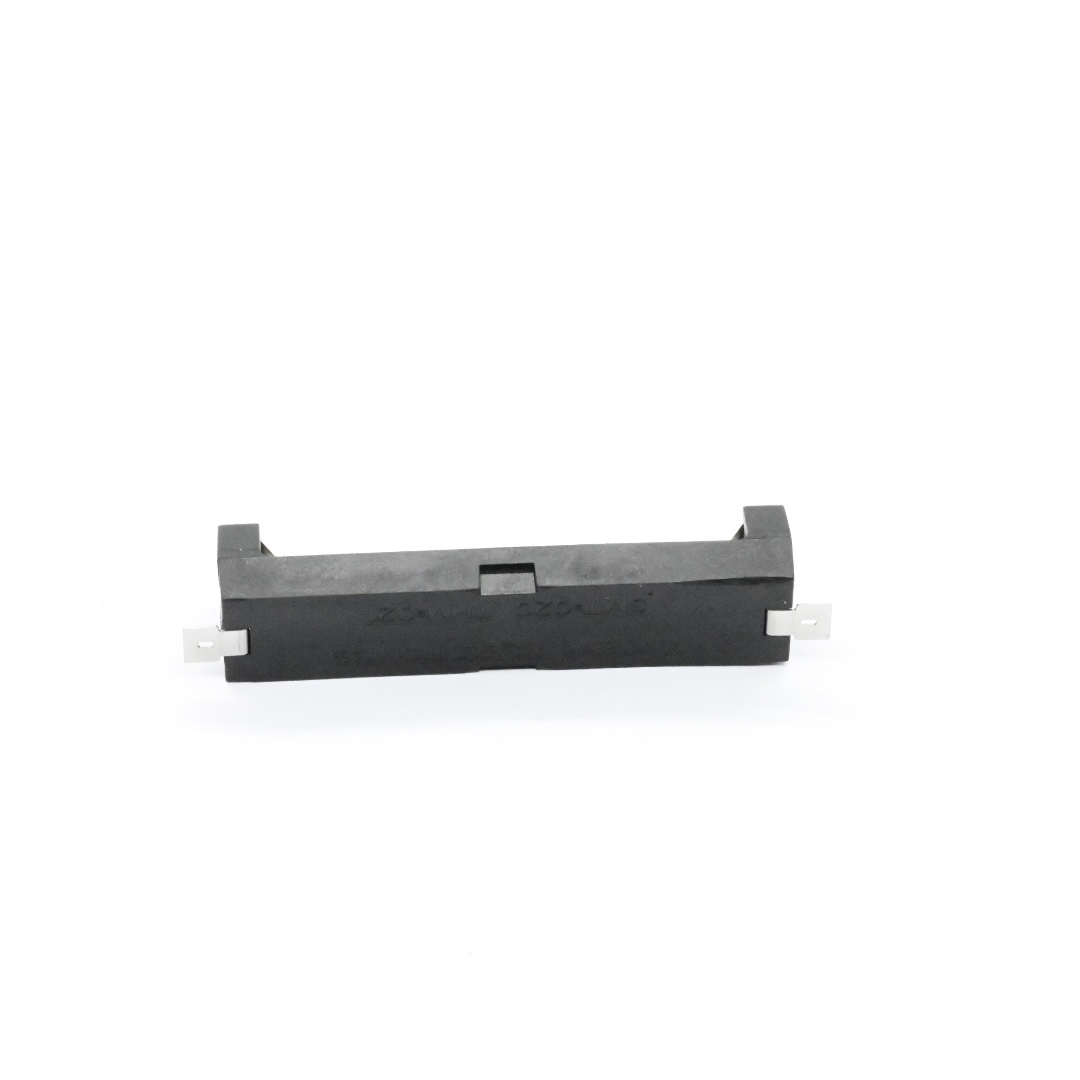

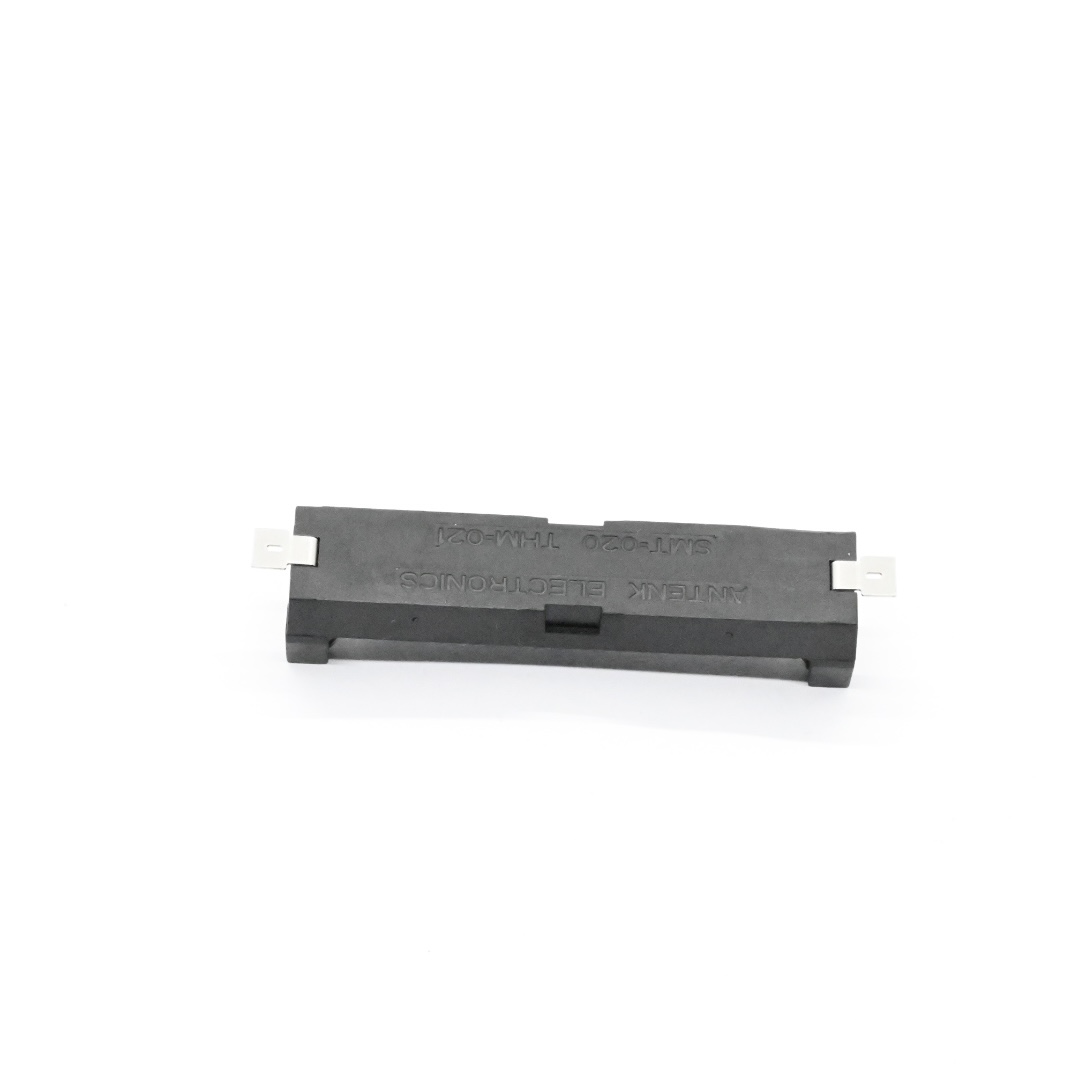

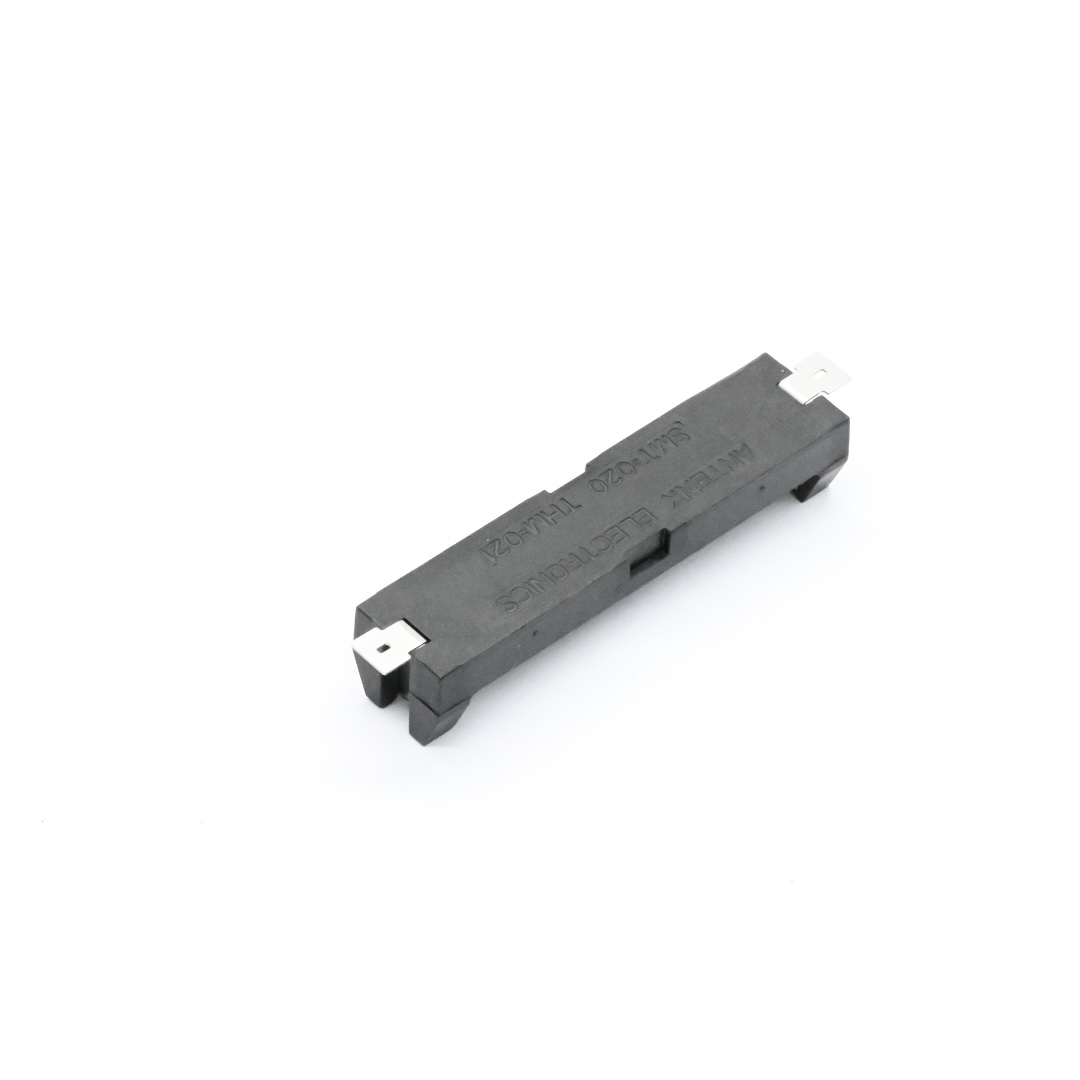

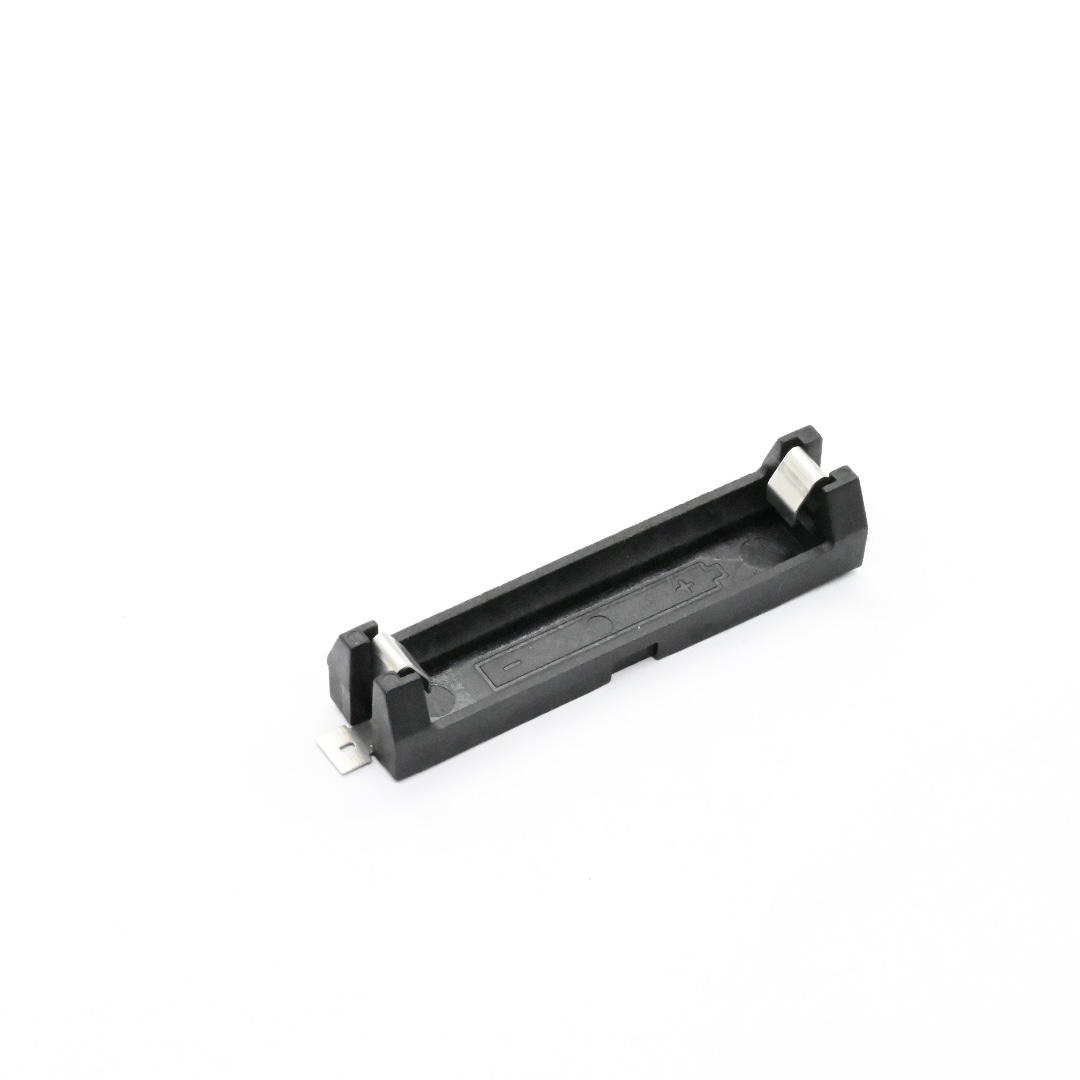

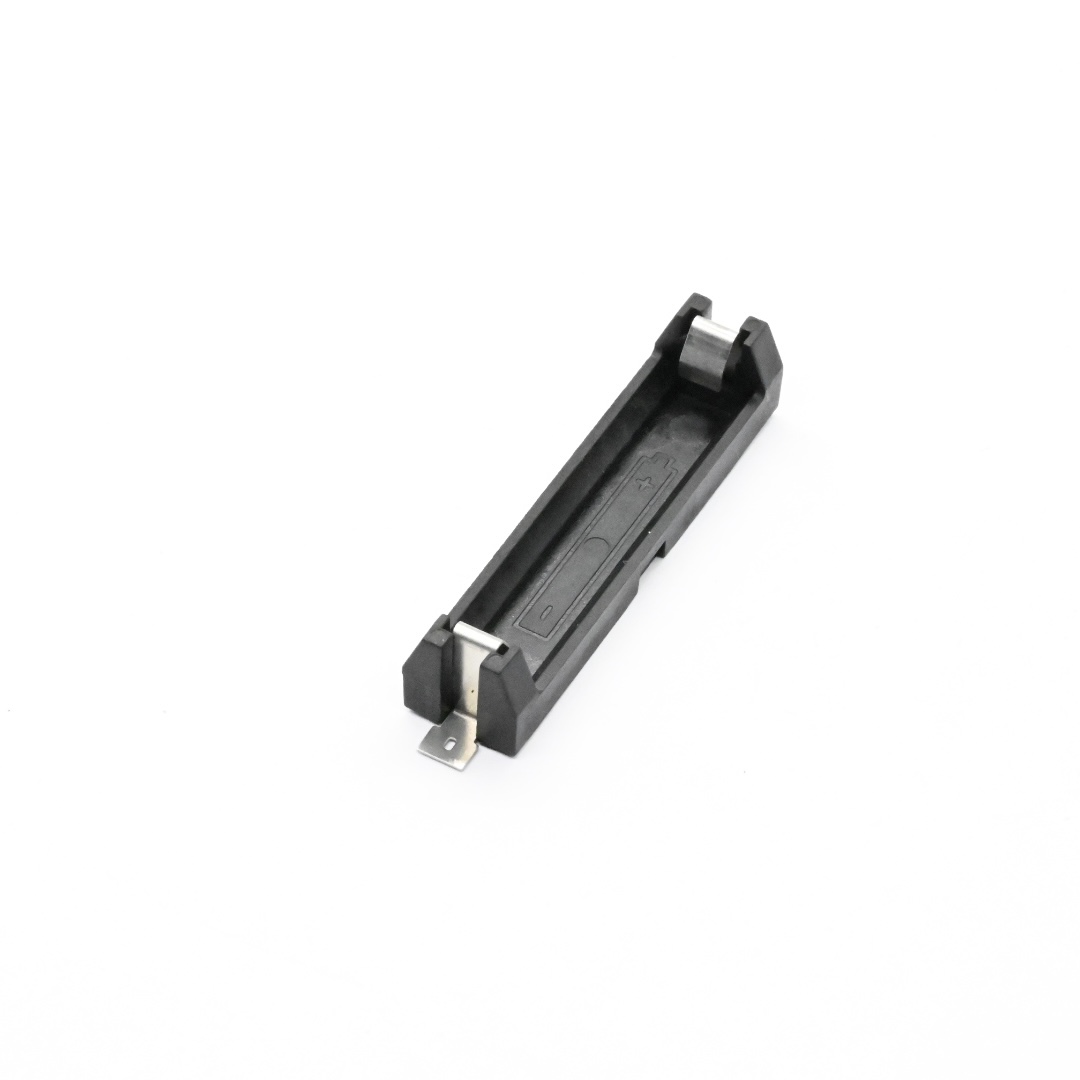

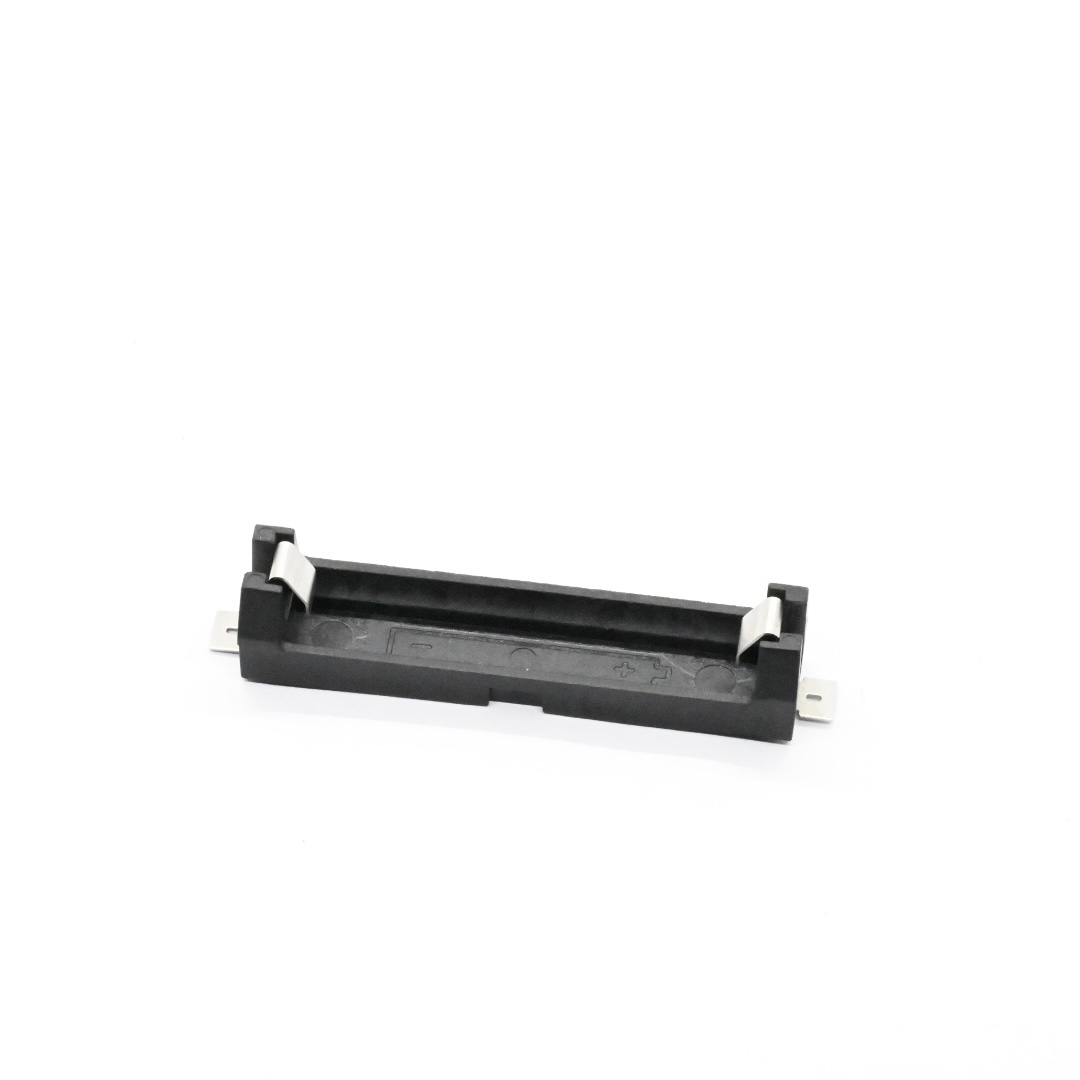

180 Degree Black Nylon Single AAA Battery Holder
3 week ago
Product details
Huizhou Antenk Electronics Co., Ltd. manufactures BBC-S-SN-A-1AAA-021 horizontal 180 degree through hole single AAA battery holder engineered to firmly clamp one AAA cylindrical battery and transmit steady power signals on printed circuit boards. This battery holder adopts black heat resistant nylon as insulating housing, matched with 0.30mm thick stainless steel contact terminals finished with tin plating over nickel base layer, and customers can upgrade to diverse gold plating grades ranging from gold flash up to 30 micro inch gold to boost anti-corrosion performance and maintain stable low contact resistance in damp and temperature fluctuating working environments. It features S-type 180 degree horizontal through hole structure with dedicated standard mounting pad layout, supporting tray packing and bag packing two packaging options to meet manual assembly and small batch inventory demands. This single AAA through hole battery holder is widely utilized in digital cameras communication equipment industrial control sensors smart home appliances electronic toys and precision measuring instruments. Operators must strictly follow official PCB mounting dimension standards during soldering assembly, avoid excessive bending force to prevent permanent deformation of stainless steel spring contacts and store finished holders in dry warehouse space to avoid oxidation corrosion on tin nickel plating layers. Unlike competitors outsourcing plastic molding and terminal stamping Antenk completes full independent production workflow covering self-developed precision mold manufacturing stainless steel high speed stamping heat resistant nylon injection molding tin nickel gold electroplating and comprehensive laboratory reliability testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications while fully complying with RoHS HSF and REACH global environmental standards. We possess hundreds of self developed plastic and metal precision molds, supply customized plating and packaging solutions, provide round the clock professional technical support, and over seventy percent of our battery holders are exported worldwide relying on our Guangdong Famous Trademark ANTENK and consistent uniform mass production quality.
Tin Nickel Plated Stainless Steel Contact provides reliable elastic clamping force and effectively resists oxidation for single AAA battery conductive connection.
Heat Resistant Nylon AAA Battery Shell maintains stable insulation and structural integrity during high-temperature soldering processes.
Horizontal 180 Single AAA Socket Base adopts horizontal through-hole layout to simplify manual soldering and save PCB layout space.
1. Material & Plating Standard
1.1 Base housing: Black heat resistance nylon
1.2 Contact raw material: 0.30mm thick stainless steel
1.3 Standard surface finish: Tin plating over nickel underlayer
1.4 Optional plating options: Pure nickel, gold flash, 3μ",5μ",10μ",15μ",30μ" gold plating
2. Product Structure & Compatible Battery
2.1 Structure type: S = 180° horizontal through hole (THM) type
2.2 Battery capacity: Single slot for one AAA battery
2.3 Product serial number: 1AAA-021

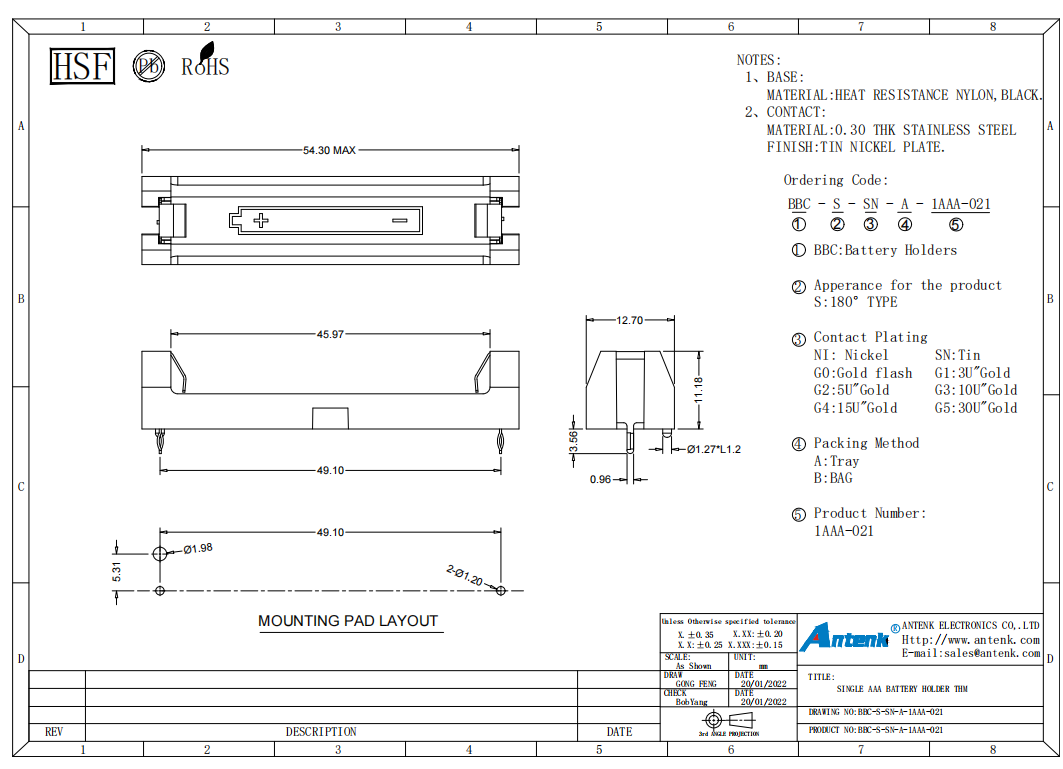

3. Dimension & Tolerance Rules (Unit: mm)
3.1 Overall outline dimensions: 49.10, 45.97, 12.70, 11.18, 5.31, 3.56, 1.98, 1.20, 0.96
3.2 Terminal hole specification: Ø1.27*L1.2
3.3 General dimensional tolerance
3.3.1 Integer X. : ±0.35
3.3.2 Single decimal X.X : ±0.25
3.3.3 Two decimals X.XX : ±0.20
3.3.4 Three decimals X.XXX : ±0.15
4. Order Code Definition & Packaging Modes
4.1 Code breakdown: BBC=Battery Holders, S=180° TYPE, SN=Tin plating, A=Tray packing, 1AAA-021=product model
4.2 Two available packing ways
4.2.1 A: Tray Packing
4.2.2 B: Bag Packing
5. Environmental Compliance
5.1 Comply with lead-free, RoHS and HSF standards
6. Application Scenarios
6.1 Digital cameras
6.2 Communication equipment
6.3 Industrial control sensors
6.4 Smart home appliances
6.5 Electronic toys
6.6 Precision measuring instruments
7. Usage Precautions
7.1 Conduct soldering strictly following official PCB mounting pad layout
7.2 Avoid over-bending stainless steel contacts to prevent permanent elastic deformation
7.3 Store finished holders in dry environment to prevent oxidation of tin-nickel plating layers
7.4 Only match standard AAA batteries to guarantee stable conductive performance
FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.
