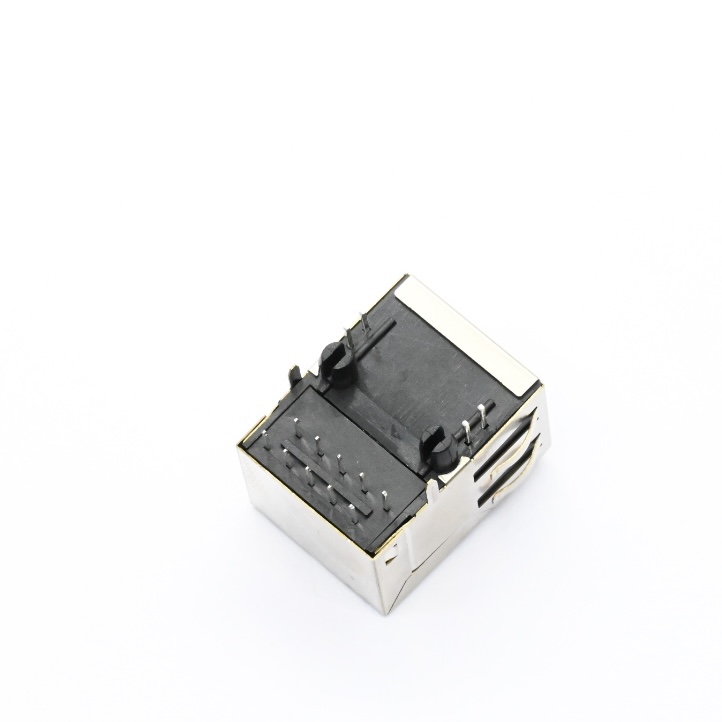

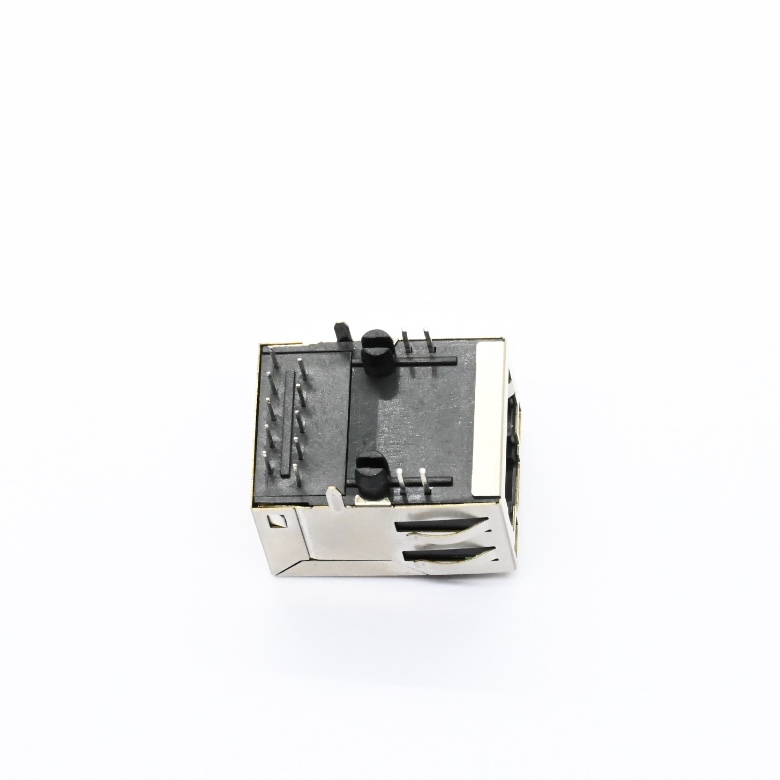

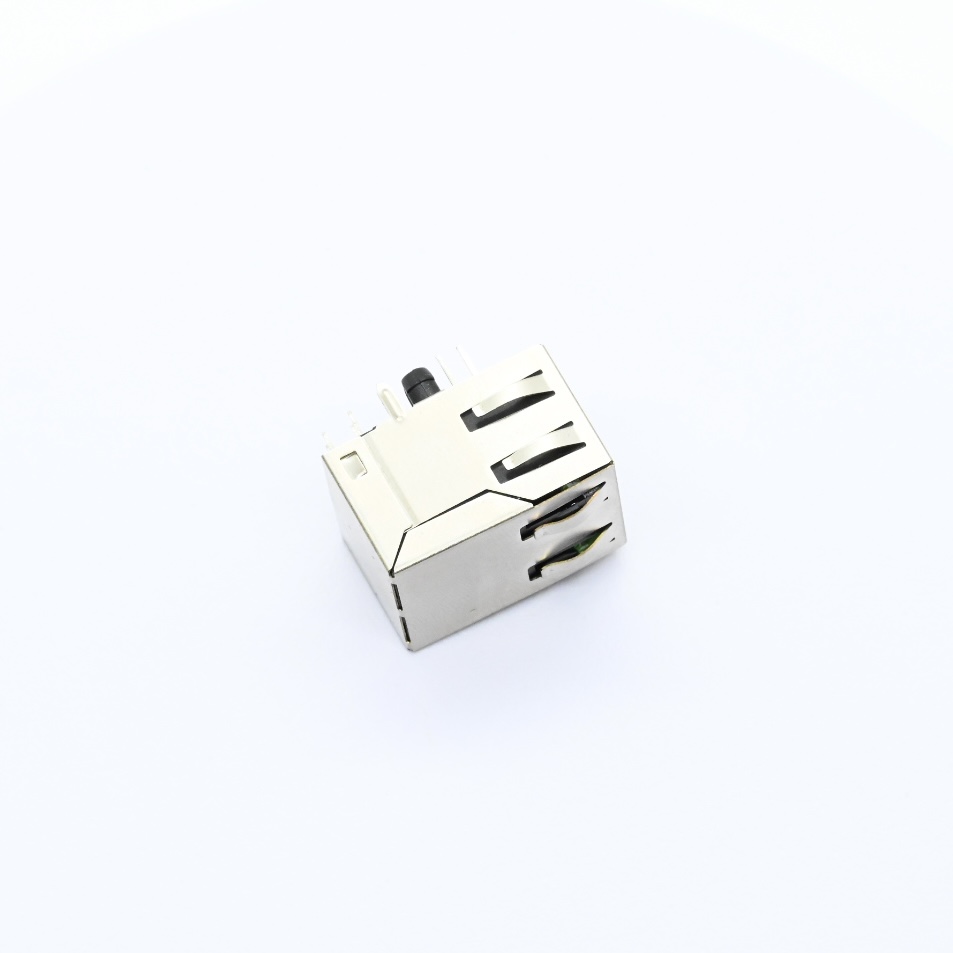

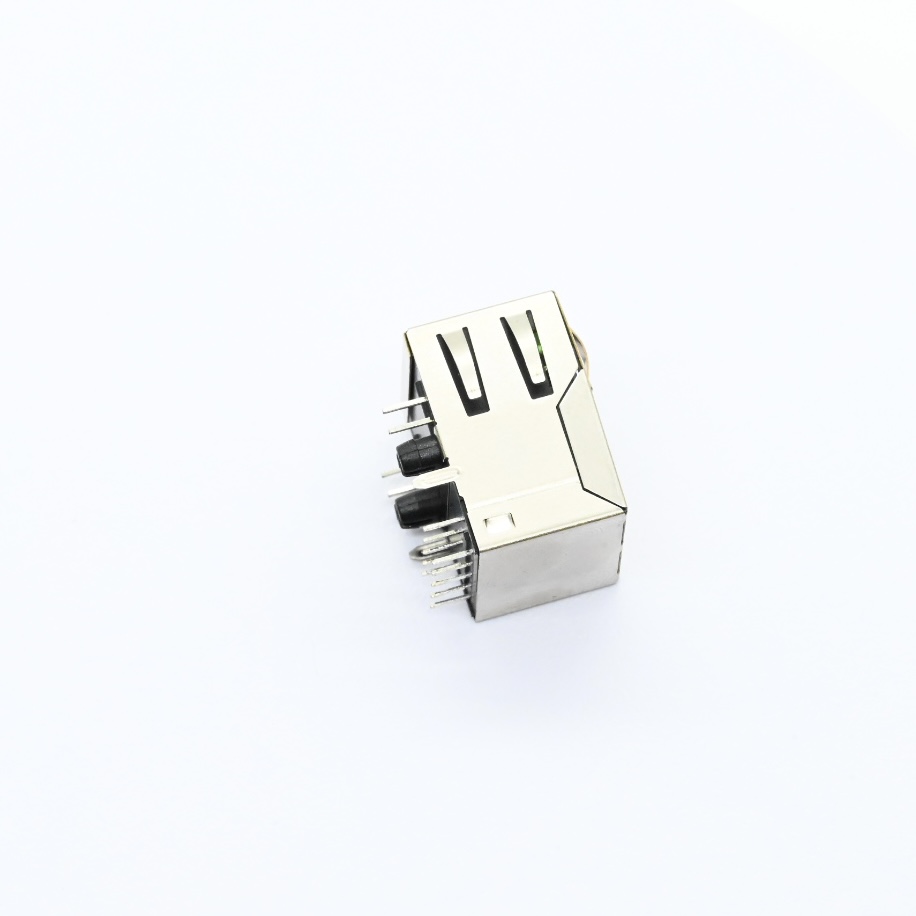

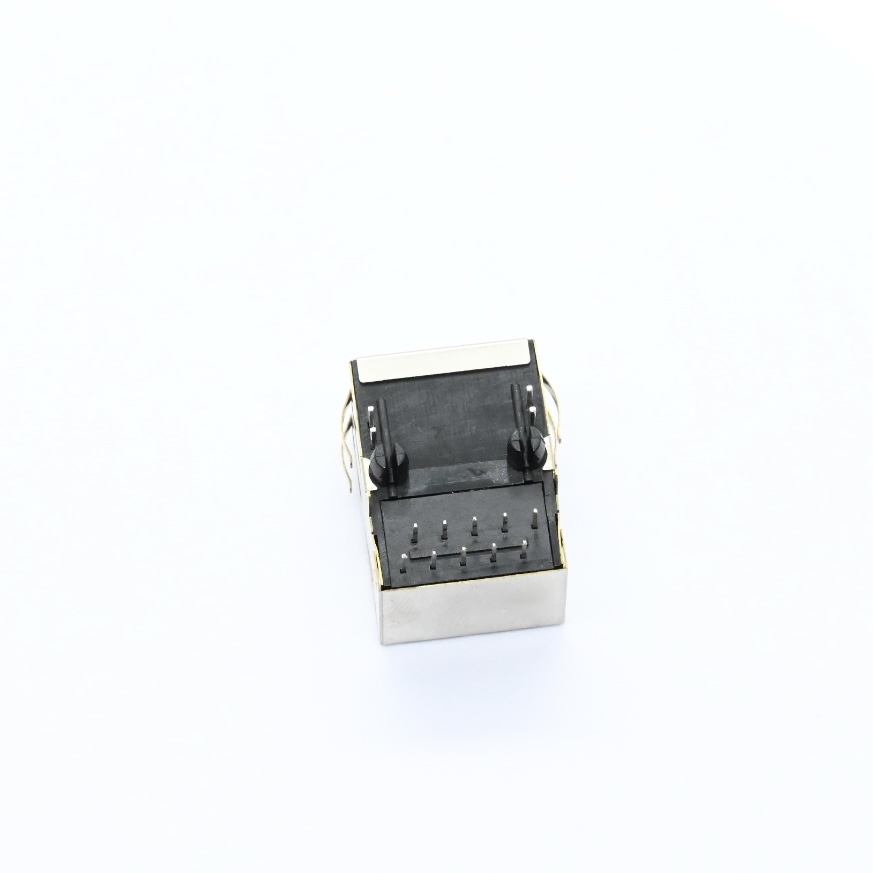

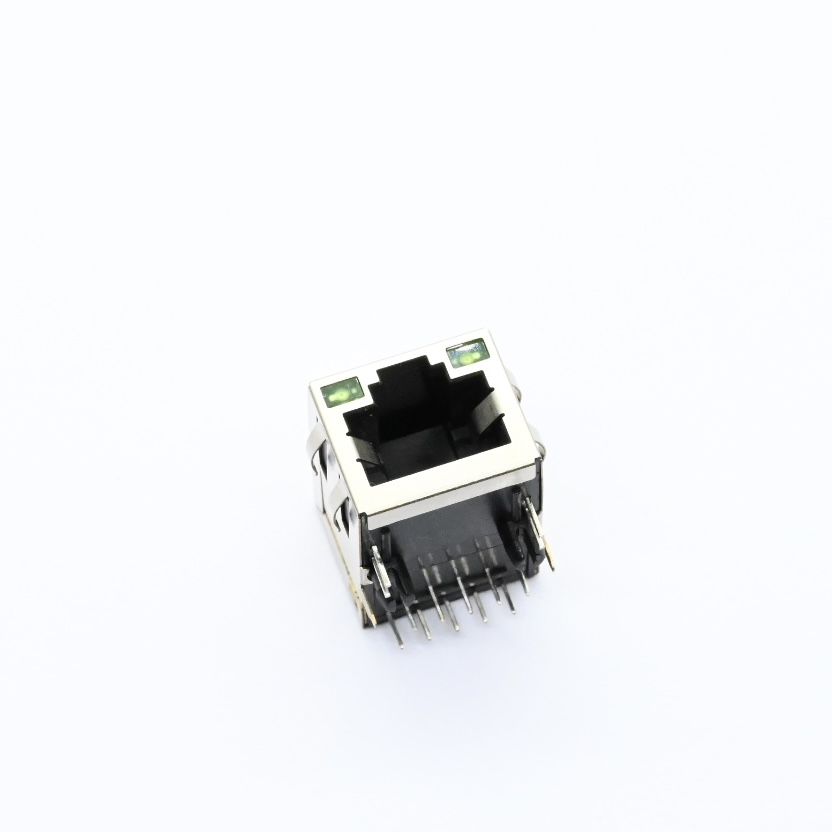

Shielded R/A RJ45 USB3.0 Combo Jack With LED

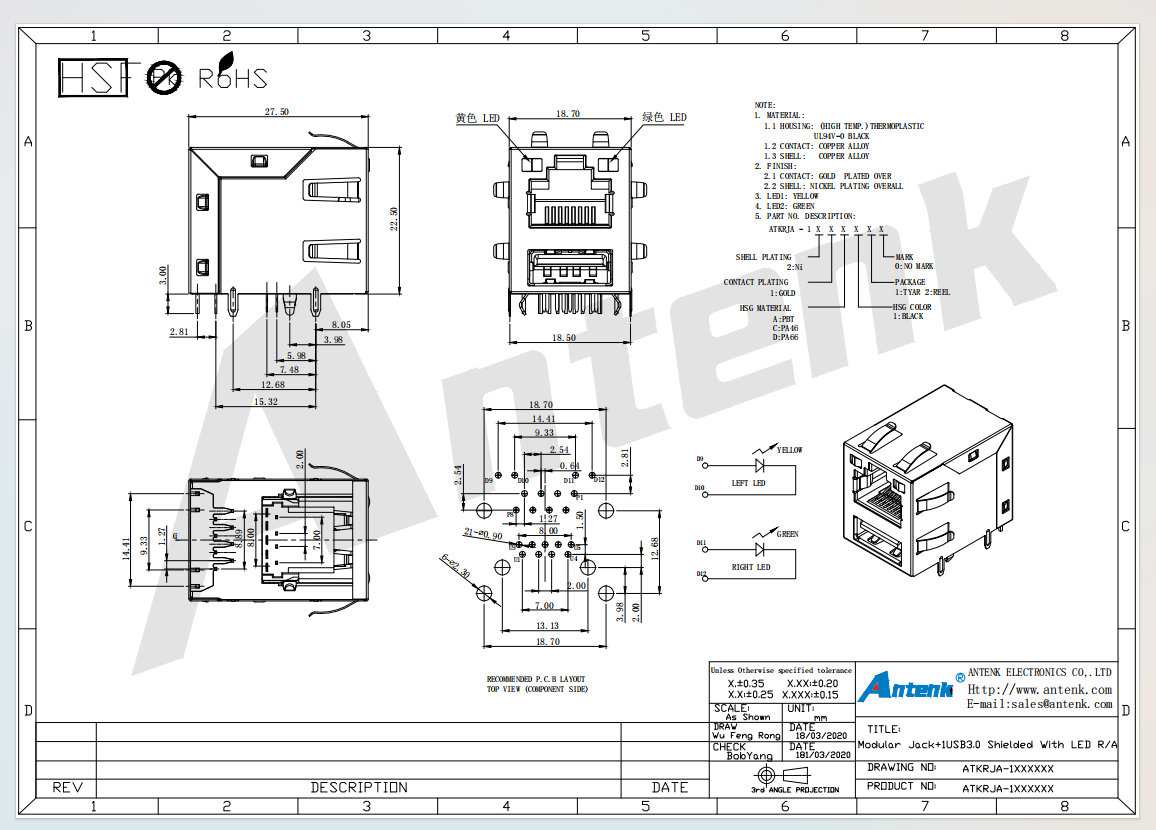

Huizhou Antenk Electronics Co., Ltd. manufactures ATKRJA-1XXXXXX right angle shielded combo modular jack integrated with one USB3.0 port and dual indicator LEDs to simultaneously realize stable high-speed network signal transmission and fast USB data communication for PCB electronic equipment. This integrated combo connector adopts high temperature resistant thermoplastic as insulating housing, paired with gold plated copper alloy signal contact terminals and full metal shielding shell with overall nickel plating to effectively block external electromagnetic interference and maintain low stable transmission impedance in complex signal environments. It is right angle through-hole SMT composite integrated structural design equipped with independent yellow and green status LED lights for real time network and power state monitoring, with standardized exclusive PCB pad layout supporting automated SMT reflow soldering assembly for mass production lines. This shielded RJ45 USB3.0 combo jack is widely deployed in communication switches industrial control hosts desktop computer mainboards smart gateway devices digital display equipment and precision network testing instruments. Operators must align components strictly with official PCB dimension drawings during soldering, avoid strong extrusion to prevent terminal bending and LED damage and store finished connectors in dry dust-free warehouse space to stop oxidation of gold and nickel plating layers. Unlike competitors outsourcing plastic injection molding and metal stamping Antenk completes full independent production workflow covering self-developed precision plastic and metal mold fabrication copper alloy high speed stamping thermoplastic injection molding multi-layer electroplating and comprehensive laboratory electrical shielding and dimensional reliability testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications while fully complying with RoHS HSF and REACH global environmental protection standards. We own hundreds of self-developed precision molds, provide customizable LED plating and shell shielding schemes, deliver round the clock professional technical support, and more than seventy percent of our network combo connectors are exported globally backed by our Guangdong Famous Trademark ANTENK and consistent uniform batch manufacturing quality.
