LF12‑01‑00 Threaded Cartridge Valve

4 week ago

3 0 

4 year

Product details

LF12‑01‑00 Threaded Cartridge Valve

Product Overview

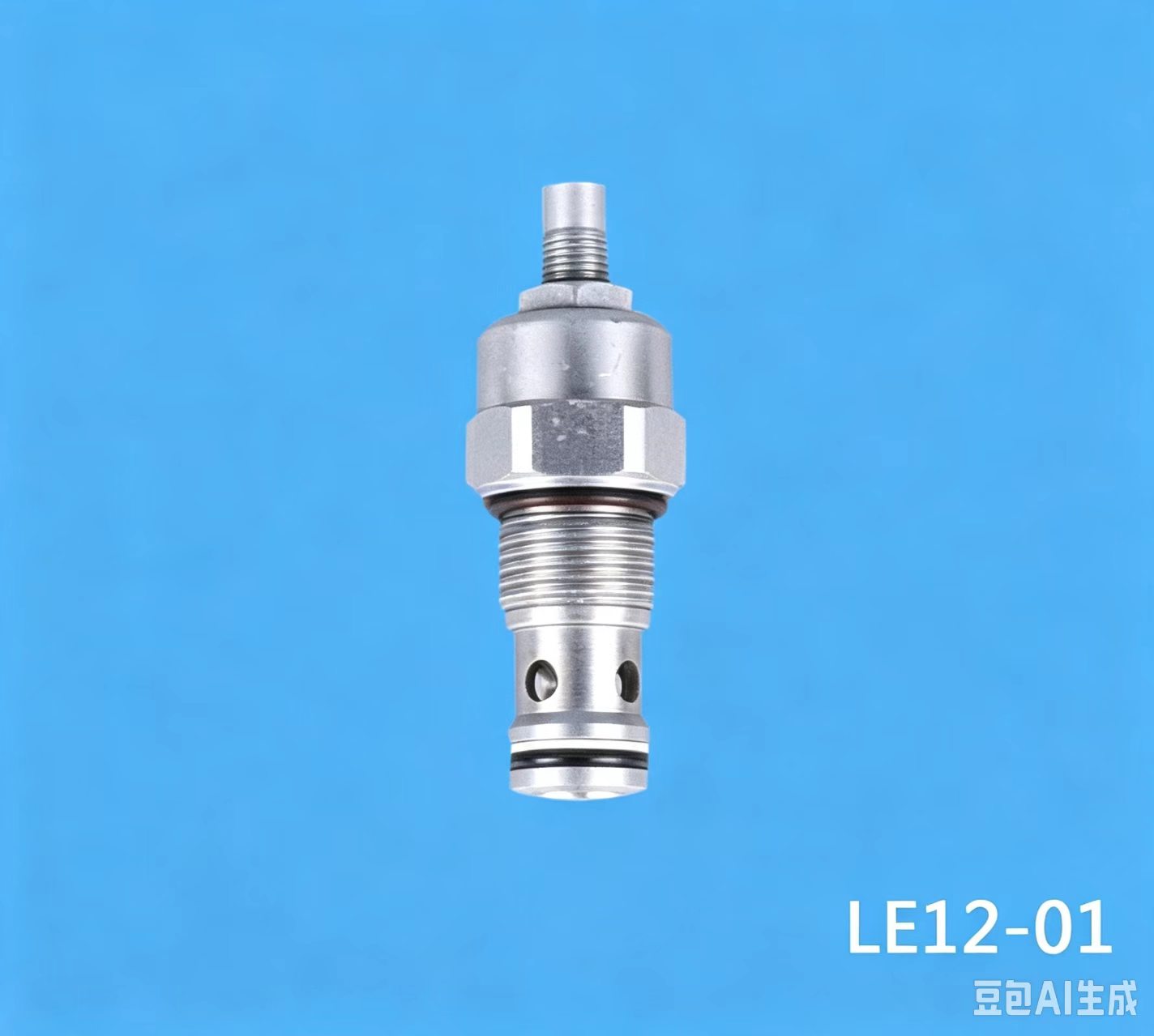

LF12‑01‑00 is a 12‑size manually adjustable threaded cartridge throttle valve for hydraulic system. It is installed into standard T‑3A cartridge cavity of hydraulic manifold block. The adjusting screw on the top changes the opening of internal throttling orifice to limit oil flow, and realizes stepless speed regulation of hydraulic cylinder and hydraulic motor. Without handwheel design, it needs screwdriver or hex‑key for flow setting. Widely applied for hydraulic power units, lifting machinery, construction auxiliary equipment and industrial fixture hydraulic circuits.

Main Technical Parameters

Item Specification

Model LF12‑01‑00

Valve cavity size 12‑size standard T‑3A threaded cartridge cavity

Valve type Adjustable throttle threaded cartridge valve

Max working pressure 210 bar

Rated flow 80 L/min

Adjustment mode Top adjusting screw (hex‑key / screwdriver adjustment)

Installation Screw‑in threaded mounting into manifold block

Seal material NBR O‑ring; FKM optional for high‑temperature working condition

Hydraulic fluid Anti‑wear hydraulic oil ISO‑VG32 / VG46

Operating temperature ‑10℃ ~ +70℃

Oil filtration requirement ≤25 μm

Working Principle

1. Rotate the top adjusting screw to increase or decrease the opening of internal throttling orifice.

2. The throttling orifice restricts the flow rate of passing hydraulic oil. By changing flow volume, it controls moving speed of hydraulic actuators such as cylinders and motors.

3. Maintain stable flow‑limiting performance under continuous working conditions, realize stepless speed control for hydraulic system.

Core Advantages

1. Adopts universal T‑3A 12‑size cartridge cavity, compatible with most standard manifold blocks without re‑machining.

2. Screw‑type adjustment structure, compact outer dimension, suitable for installation space‑limited hydraulic manifold.

3. Large rated flow capacity up to 80L/min, suitable for medium‑large flow hydraulic circuit.

4. Screw‑in cartridge‑style structure, reduce external pipe joints and lower leakage risk.

5. Hardened precision internal components, stable throttling performance for long‑time cyclic operation.

Application Scope

Hydraulic power packs, medium‑size lifting platforms, construction auxiliary machinery, metallurgical auxiliary equipment, fixture hydraulic circuits, industrial and mobile hydraulic systems requiring flow and speed adjustment.
