KYB-type Travel Motor Spare Parts for CAT 336D2, MSF-180 (13-Tooth Motor Shaft)

4 week ago

5 0 

4 year

Product details

1. Product Overview

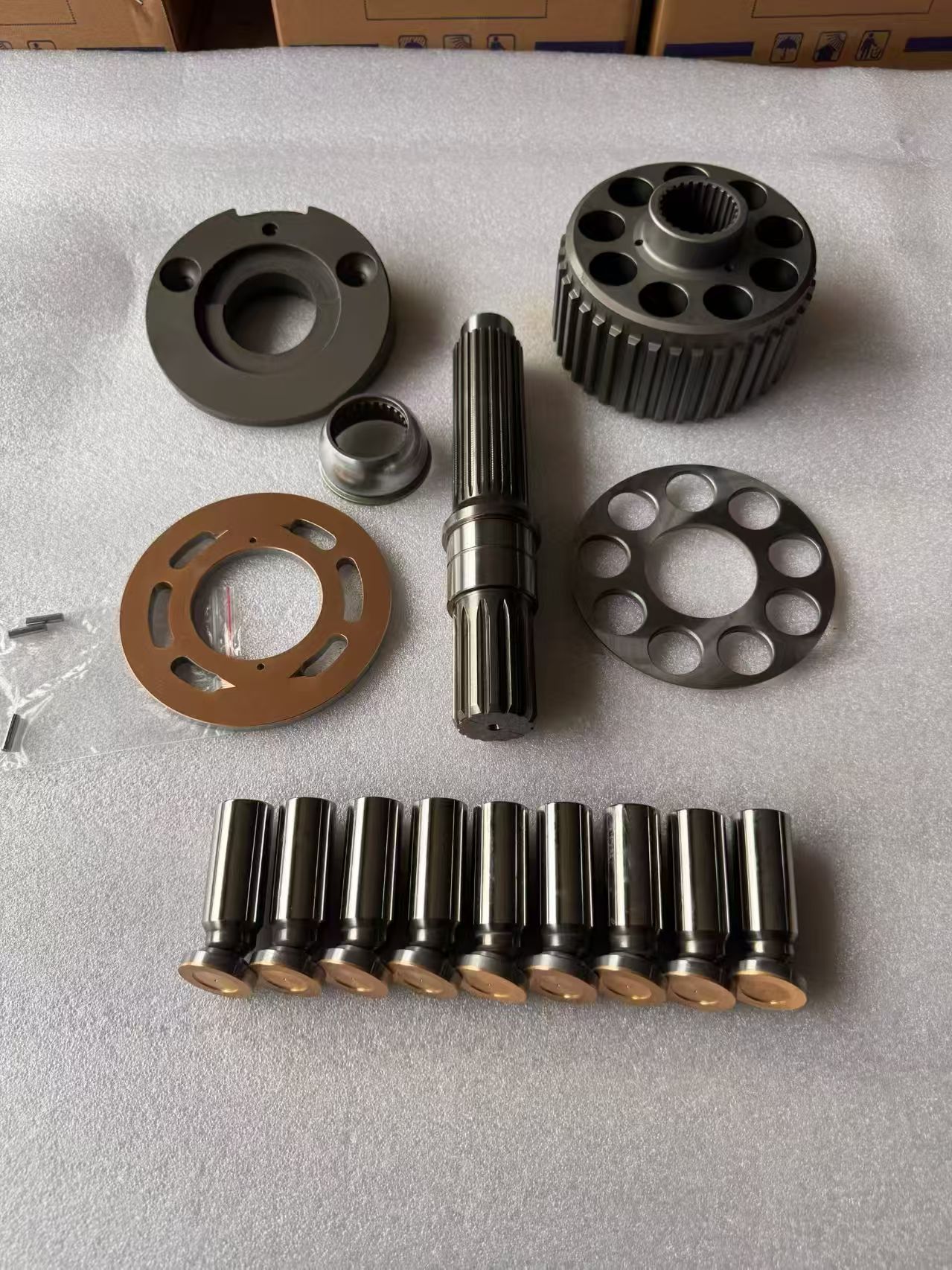

MSF-180 is a mainstream KYB-spec travel motor assembly and matching spare part series for CAT 336D2 excavator, belonging to the core walking component of mobile hydraulic system. The complete assembly integrates axial piston motor and final planetary reduction box; separable spare parts include motor shaft, piston shoe, cylinder block, valve plate, seal kits and other wear parts. It converts hydraulic pressure energy into crawler driving torque to realize forward, backward and steering movement of the excavator, widely used for original equipment matching and later maintenance replacement of 30-tonne class heavy excavators.

2. Core Technical Parameters

Item Specification

Applicable Equipment Caterpillar CAT 336D2 Excavator

Standard KYB original structure specification

Model Code MSF-180

Motor Type Axial piston travel motor with built-in final drive

Displacement 180mL/r

Max working pressure 35MPa

Output speed range 3~35r/min

Reduction Structure Multi-stage planetary gear reduction

Common replaceable parts 13-tooth motor shaft, piston assembly, port plate, cylinder block, NBR/FKM seal kit

Working Fluid ISO VG46 anti-wear hydraulic oil

Operating Temperature -15℃ ~ 80℃

3. Working Principle

High-pressure oil from the main hydraulic pump enters the MSF-180 motor cavity, pushing the piston assembly to rotate the cylinder block and motor shaft. Torque is amplified and speed is reduced by the built-in planetary final drive, then transferred to track sprockets. Integrated mechanical brake locks the shaft after oil cut-off to prevent slipping on slopes; all separable spare parts bear cyclic load during frequent start-stop and steering operations.

4. Product Advantages

1. Fully consistent with KYB MSF-180 installation dimension and internal structure for CAT 336D2, direct replacement without manifold modification.

2. Complete spare part coverage (drive shaft, friction pairs, seals etc.) supports partial repair instead of whole-unit replacement to cut maintenance cost.

3. Hardened gear and friction components deliver strong shock and wear resistance for mining, earthmoving and road construction heavy-duty scenarios.

4. Compact integrated layout reduces external piping leakage risk of the hydraulic system.

5. Mature domestic alternative supply ensures short lead time for urgent onsite repair.

5. Application Scope

Designed for travel system maintenance of CAT 336D2 excavator, suitable for mining excavation, large-scale earthwork, municipal road reconstruction and other frequent travel operation scenarios; spare parts also fit other excavators adopting KYB MSF-180 travel motor.
